Description

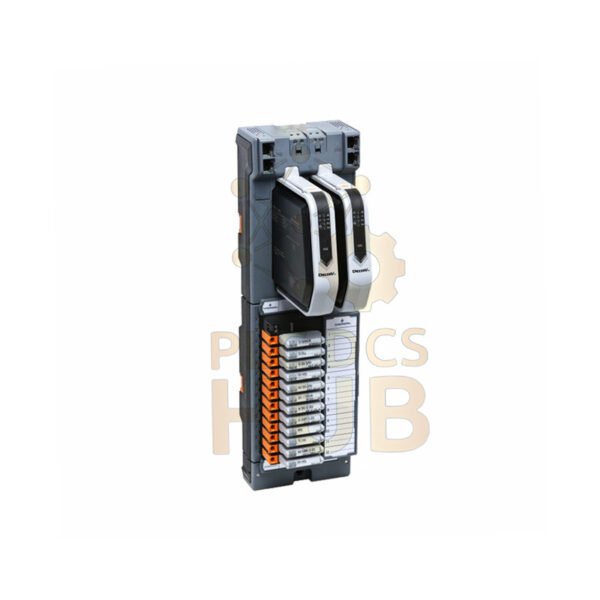

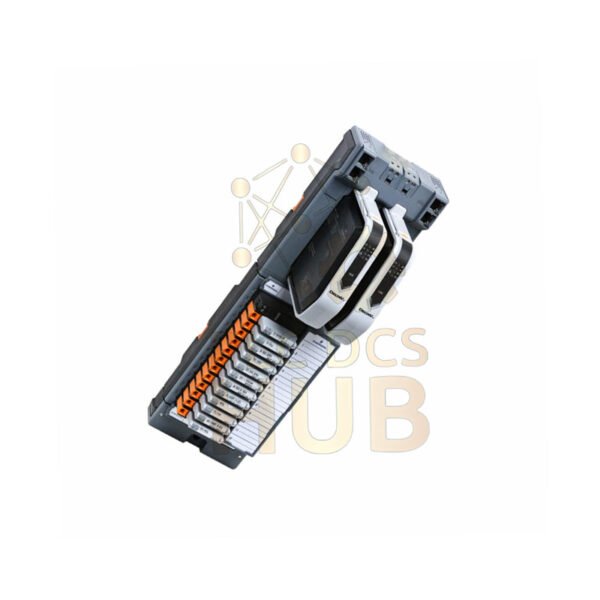

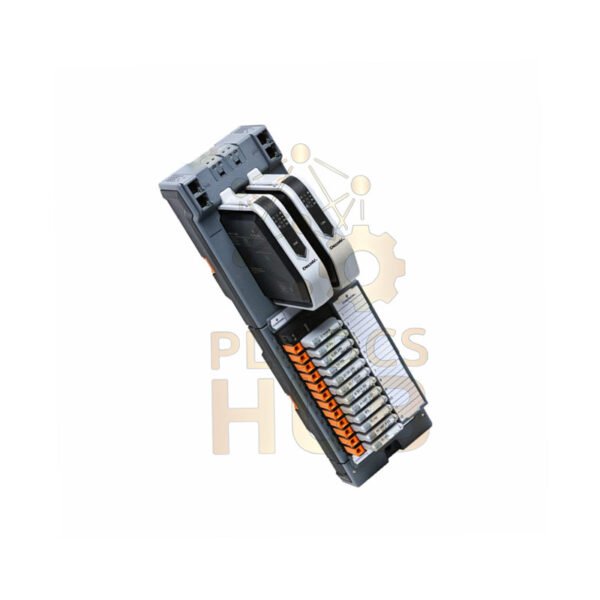

Emerson DeltaV SE4303T01 HART CHARM
The SE4303T01 is a smart input CHARM.
It reads current signals.
It works with HART devices.
And it fits DeltaV systems with ease.
Basic Product Information
- Brand: Emerson
- Series: DeltaV
- Model: SE4303T01
- Type: HART Analog Input CHARM
Signal and Measurement
- Nominal input: 4–20 mA
- Optional range: 0–20 mA
- Full input span: 0–24 mA
- 16-bit resolution for stable data
Accuracy and Stability
- Accuracy: 0.1% span from 0 to 60°C
- Extended accuracy: 0.25% span
- Repeatability: 0.05% span
- No field calibration needed
Power and Thermal Data
- Field power: 15 V at 20 mA
- Two-wire load: 36 mA max
- Three or four-wire load: 12 mA max
- Heat loss: 0.33 W
Protection and Reliability
- Built-in current limit: 30 mA
- Safe field wiring disconnect
- Input impedance: 250 Ω ±1%
- High noise immunity
HART and System Support
- HART v7 pass-through
- Works with AMS tools
- Reads device status and variables
- No signal delay added
Environmental Limits
- Operating range: -40°C to 70°C
- Humidity: 0–100% non-condensing
- Designed for harsh plants
Key User Benefits
- Fast loop setup
- Less wiring effort
- Clear asset data
- Long service life
Warranty and Shipping
- Warranty: 12 months
- Delivery: FedEx, UPS, DHL
- Secure export packing
Professional FAQ
- Is this CHARM good for old transmitters?
- Yes. It supports standard analog loops.
- Does it need manual scaling?
- No. DeltaV handles scaling automatically.
- Can it read HART diagnostics?
- Yes. Device data is available to the system.
- Is it safe for outdoor cabinets?
- Yes, if cabinet temperature stays in range.
- What should I confirm before buying?
- Check wiring type and loop power needs.
