Description

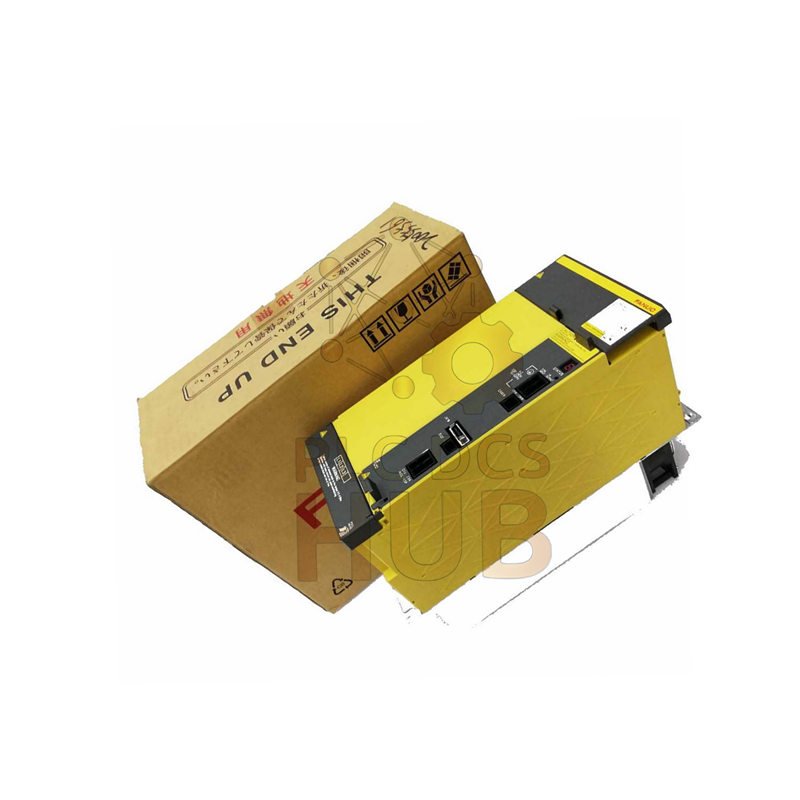

FANUC A06B-6087-H115 Servo Power Supply Unit
The A06B-6087-H115 is a high-performance power converter from FANUC. It delivers stable power to servo drives in CNC machines. This unit supports heavy-duty operation with 63A rated current. It ensures your machining center runs smoothly and reliably.
Main Advantages
- High 63A Output: Powers multiple servo drives simultaneously.
- Excellent Efficiency: Over 95% energy conversion reduces heat and cost.
- Robust Three-Phase Input: Handles 200-230V AC or DC input flexibly.
- Complete Protection: Built-in safeguards against overload and voltage spikes.
- Effective Air Cooling: Maintains safe temperature during continuous use.
- Space-Saving Design: Allows vertical or wall mounting in control cabinets.
- Wide Compatibility: Designed for FANUC CNC systems and servo amplifiers.
Complete Technical Details
Basic Information
- Brand: FANUC
- Model Code: A06B-6087-H115
- Product Family: A06B Series
- Device Type: Servo Power Supply / Converter
- Primary Use: CNC Machine Tool Systems
- Unit Weight: 25.0 lbs (approximately 11.34 kg)
Electrical Ratings
- Input Phase: 3-Phase
- Input Voltage: 200 to 230 Volts AC (or DC)
- Input Frequency: 50 Hz or 60 Hz
- Rated Output Current: 63 Amperes
- Output Voltage: 200 to 230 Volts AC/DC
- Typical Efficiency: Greater than 95%
Physical & Environmental
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Cooling System: Forced air cooling (fan)
- Mounting Options: Vertical orientation or wall mounting
- Protection Circuits: Overload, Overcurrent, Overvoltage protection
- Safety Standards: Complies with industrial electrical safety norms
Warranty & Shipping Options
This power supply is covered by a 12-month replacement warranty. We ship worldwide using express services: FedEx, UPS, and DHL. Tracking details are provided within 24 hours of dispatch.
Common Applications
- FANUC CNC Machining Centers and Turning Centers
- Industrial Robotics and Automated Production Lines
- Large Gantry Mills and Boring Machines
- Precision Grinding and Gear Cutting Equipment
- Plastic Injection Molding Machine Drives
Technical FAQs for the A06B-6087-H115
Q: Can this power supply run on single-phase input?
A: No. This unit requires a three-phase 200-230V AC input. Using single-phase power will damage the unit and void the warranty.
Q: What is the main purpose of this module in a CNC system?
A: It converts incoming three-phase AC power to stable DC bus voltage. This clean DC power is then used by the servo axis amplifiers to drive the motors.
Q: My factory voltage fluctuates. Is this a problem?
A: The unit has built-in overvoltage protection. However, for stable operation, the input voltage should remain within the 200-230V ±10% range.
Q: How do I know if the cooling fan is failing?
A>Listen for unusual noises or a change in fan sound. Also, monitor the internal temperature alarm on the CNC. Reduced airflow will cause the unit to overheat and shut down.
Q: Can I connect it directly to servo motors?
A>No. This is a power supply, not a drive. You must connect its output to FANUC servo amplifiers (like the A06B-6066 series), which then control the motors.
