Description
Product Overview: FANUC Servo Amplifier

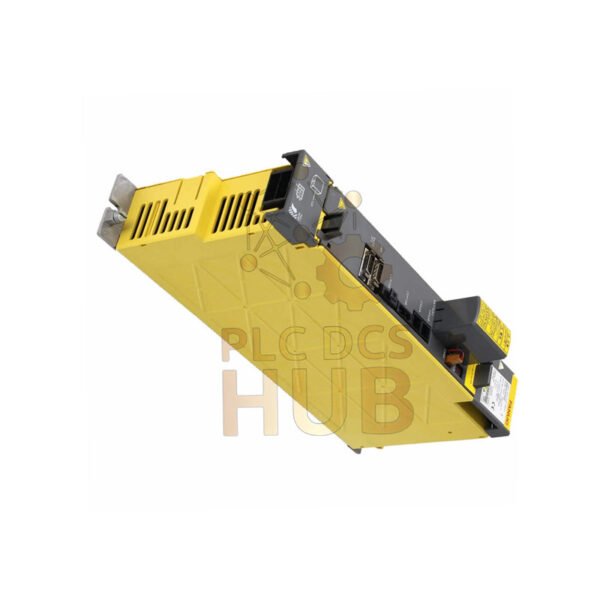

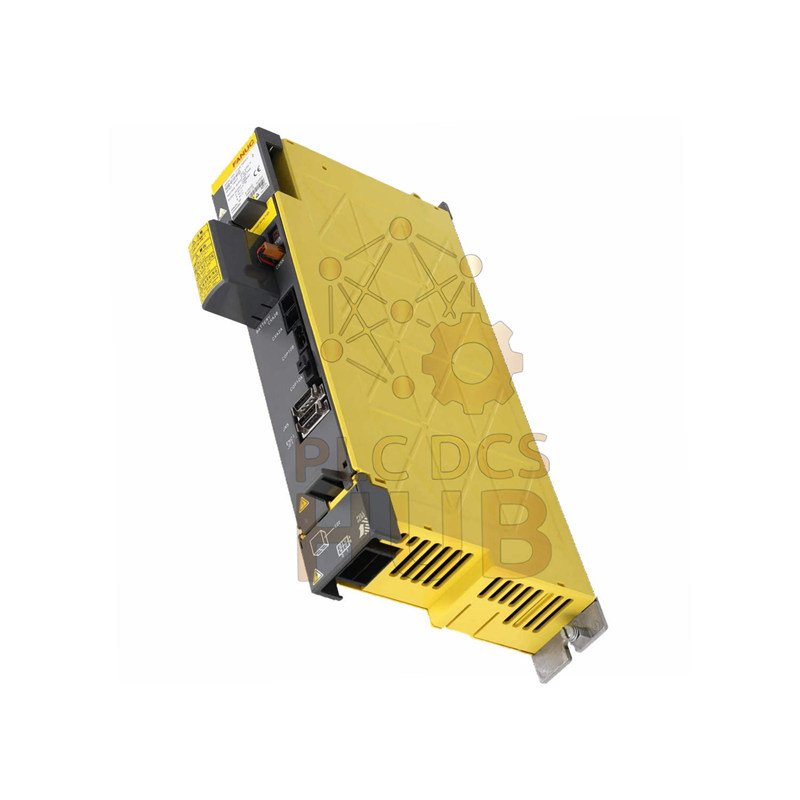

- This is the genuine FANUC A06B-6114-H103 servo amplifier.
- It provides reliable power for servo motors in automation systems.
- The module is built for stable performance in industrial conditions.
- It works with common input voltages and frequencies.
- Perfect for machine tools, robots, and other motion control applications.
Key Features & Benefits
- High Power Density: 2.5 kW rating in a compact, 5 kg module.
- Wide Frequency Range: Output from 0.1 Hz to 800 Hz for flexible control.
- Robust Environmental Specs: Operates in high humidity and up to 55°C.
- Global Voltage Compatibility: Accepts 50/60 Hz input power.
- Strong Current Output: 6.5A rating ensures reliable motor drive.
Complete Technical Specifications
- Brand & Model: FANUC A06B-6114-H103
- Product Type: Servo Amplifier Module (A06B Series)
- Input Voltage (DC Link): 283 – 339 VDC
- Input Power (Rated): 2.5 Kilowatts
- Input Frequency: 50 Hz or 60 Hz
- Output Voltage: 200 – 240 VAC
- Output Current (Rated): 6.5 Amperes
- Output Frequency Range: 0.1 Hz to 800 Hz
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Ambient Humidity: Up to 90% RH (non-condensing)
- Storage Temperature: -20°C to 70°C (recommended)
- Vibration Resistance: Designed for typical industrial machine vibration.
- Module Weight: Approximately 4.99 kg (11.00 lbs)
- Cooling Method: Forced air cooling via internal fan.
- Protection Functions: Standard overcurrent, overload, and overvoltage protection.
- Communication Interface: FANUC digital servo bus interface.
Installation & Integration Notes
- Mount the amplifier vertically on a clean, vibration-free panel.
- Ensure the cooling fan has unobstructed airflow.
- Connect the DC link power input and motor output cables securely.
- Use proper wire sizes according to the rated current.
- Follow all guidelines in the official FANUC system manual.
System Compatibility
- This amplifier is part of the FANUC A06B series servo system.
- It must be used with compatible FANUC CNC controls and servo motors.
- Verify the model numbers of your existing system components.
- Not designed as a standalone universal drive.
Package Contents
- 1 x FANUC A06B-6114-H103 Servo Amplifier Module.
- Unit is supplied in protective packaging.
Warranty & Shipping Information
- This product includes a full 12-month replacement warranty.
- Fast international shipping via FedEx, UPS, and DHL is available.
- A tracking number will be provided after your order ships.
Common Application Areas
- Spindle and axis control in CNC machining centers.
- Driving servo motors on industrial robotic arms.
- Precision automation lines in manufacturing.
- Other applications requiring reliable digital servo control.
Frequently Asked Questions
- Q: What is the main difference between a servo drive and this amplifier module?
- A: This module includes the power amplification stage and control logic in one unit, designed for integration into a FANUC system.
- Q: Can I use this amplifier with a 400V AC three-phase input?
- A: No, it requires a DC link input voltage between 283 and 339 VDC, which is typically provided by a separate power supply unit in the system.
- Q: The cooling fan is noisy. Is this a problem?
- A: Some fan noise is normal for cooling. Ensure the air inlet and outlet are not blocked by dust or debris.
- Q: Do I need special software to configure this amplifier?
- A: Yes, parameters are typically set using FANUC’s dedicated system software and a handheld operator panel.
- Q: What should I check first if the amplifier shows an alarm?
- A: First, check the alarm code. Then, verify all power connections and the condition of the connected motor cable for shorts or damage.
