Product Description: Powerful Motion Control PLC

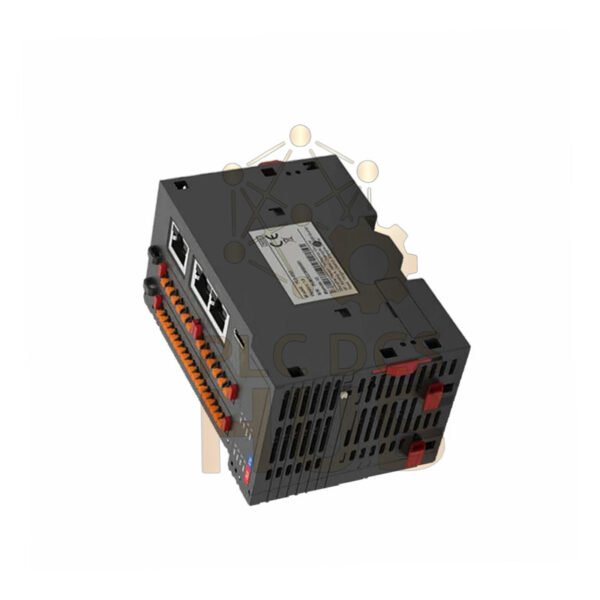

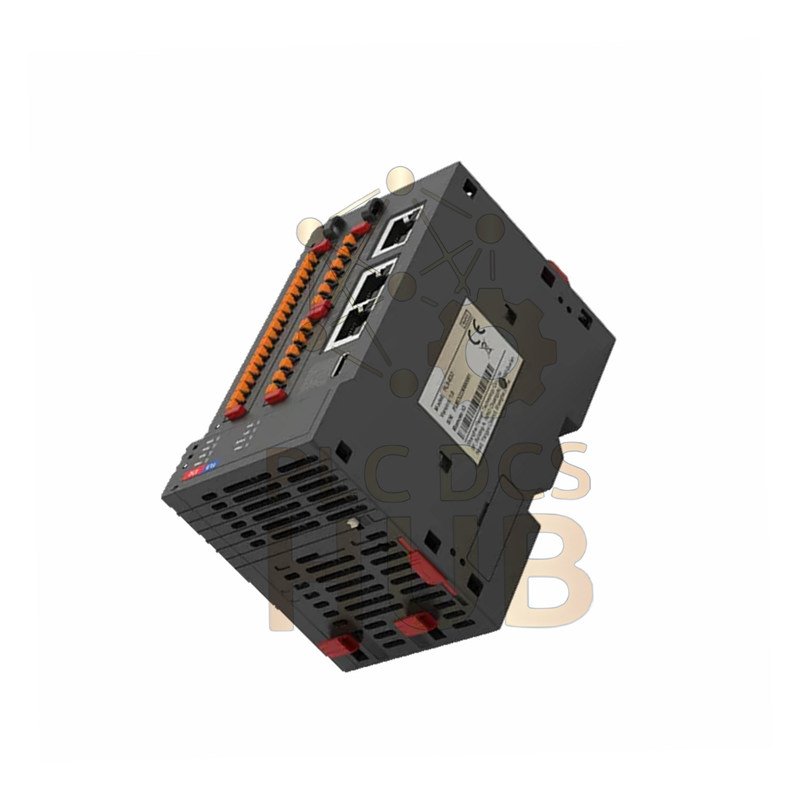

The Flexem FL8-E32-D CPU Module is a high-performance motion controller. It combines logic control and multi-axis motion in one unit. The built-in EtherCAT master port is the key feature. It controls up to 32 servo axes directly and in real-time. This reduces system cost and complexity. The module also offers local I/O and pulse outputs. It is ideal for demanding automation machines.
Key Technical Specifications
- Brand & Model: Flexem FL8-E32-D CPU Module
- Core CPU: High-speed 4-core 1GHz processor
- Main Motion Control: Controls 32 axes via EtherCAT network
- Pulse Output: 6 channels of 200kHz pulse output
- Pulse Input: 7 channels of 200kHz high-speed input
- Built-in I/O: 8 digital inputs (NPN/PNP). 8 digital NPN outputs.
- Communication: 2x Ethernet ports. 2x RS485. 1x CANopen.
- Expansion: Supports left-side cards. Up to 31 right-side modules.
- Memory: 2GB RAM. 8GB storage. 32M program capacity.
- Data Memory: I/Q: 128KB. M: 512KB. Retain: 800KB.
- Programming: Full IEC languages (LD, ST, FBD, SFC, CFC, IL)
- Advanced Functions: Electronic cam and electronic gearing
- Power Supply: 24V DC with wide range (19.2V to 28.8V)
- Industrial Protocols: EtherCAT, Modbus TCP/RTU, CANopen, OPC UA
- Environmental: Designed for industrial noise and interference
- Interface: USB Type-C for programming and data
Easy Installation Guide
- Mount the module on a 35mm DIN rail.
- Connect the 24V DC power to the correct terminals.
- Wire your sensors to the built-in 8 inputs.
- Connect your actuators to the 8 built-in outputs.
- Use the main EtherCAT port to connect your servo drives.
- Ensure all communication cables are securely connected.
Simple Debugging & Maintenance
- Use the free software for online monitoring and debugging.
- LED indicators show power, run status, and EtherCAT network health.
- Large retain memory keeps machine parameters safe.
- Update firmware easily via the USB Type-C port.
System Compatibility
- Works with all standard EtherCAT servo drives and I/O modules.
- Connects to HMIs and SCADA via Modbus TCP or OPC UA.
- The CANopen port links to encoders, inverters, or sensors.
- Expand system with various digital and analog I/O modules.
Certifications & Package Contents
- Complies with CE, RoHS, and industrial EMC standards.
- Package Includes: 1x FL8-E32-D CPU Module. 1x User Manual.
- Warranty: Full 12-month warranty from delivery date.
- Global Shipping: We ship via FedEx, UPS, and DHL.
Typical Application Scenarios
- High-speed packaging and pick-and-place machines.
- Multi-robot cell coordination and assembly lines.
- CNC machining centers and laser cutting systems.
- Precision printing, labeling, and converting equipment.
- Automated material handling and palletizing systems.
Built-in Diagnostic Capabilities
- Real-time monitoring of the entire EtherCAT network status.
- Detailed error codes for each slave device on the network.
- Live view of PLC program execution and variable values.
- Diagnostics for I/O points, communication ports, and system health.
Frequently Asked Questions
What is the biggest benefit of this PLC?
It saves cost and space. You get a PLC and a 32-axis motion controller in one compact unit.
Can I control stepper motors with this?
Yes. Use the pulse outputs for simple steppers. For networked control, use EtherCAT stepper drives.
Is the software free and easy to use?
Yes. The programming software is free. It uses standard IEC languages familiar to engineers.
How do I know if this module fits my machine?
Count your servo axes. If you need more than 8 axes, this module is an excellent choice for performance and value.
What happens if the power goes out?
The large 800KB retain memory keeps your recipes and critical data safe without a battery.
How strong is the anti-interference design?
It uses industrial-grade components and circuit design. It performs well in noisy factory environments near heavy machinery.
