Description
Product Overview

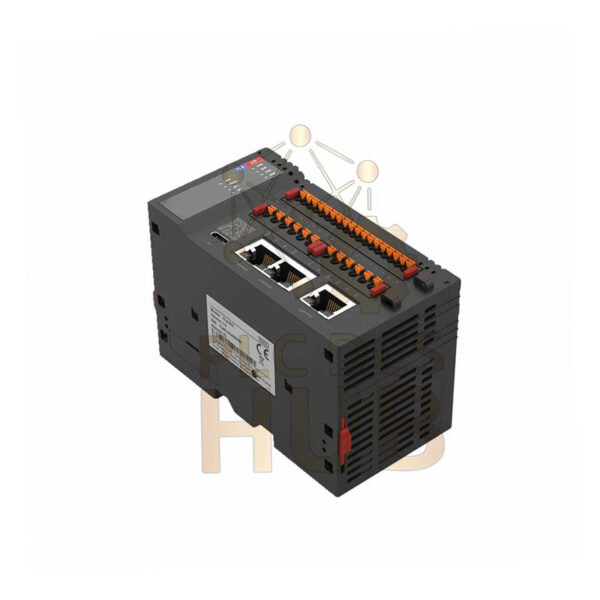

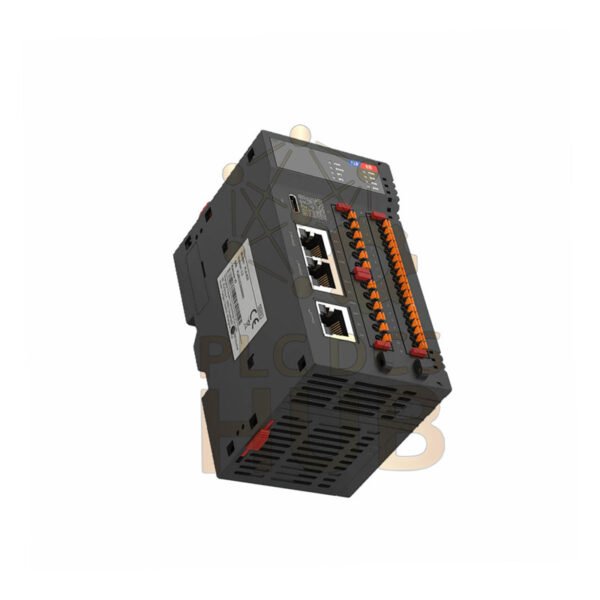

The Flexem FL8-E8-D is a powerful motion control CPU module. It features two Ethernet ports and one EtherCAT port. Control up to 8 EtherCAT axes smoothly. It has built-in digital inputs and outputs. This module is perfect for industrial automation tasks. A fast 4-core CPU handles complex operations. It supports many expansion options and communication protocols.
Key Technical Data
- Brand & Model: Flexem FL8-E8-D
- Core CPU: 4-core, 1 GHz high-speed processor
- Memory: 1 GB RAM, 4 GB storage
- Motion Control: 8 EtherCAT axes + 6 pulse outputs (200 kHz)
- Integrated I/O: 8 digital inputs, 8 digital outputs (NPN)
- Communication Ports: 2x Ethernet, 2x RS485, 1x CAN
- Expansion: Left-side (4G/WiFi/Serial) & Right-side (max 31 modules)
- Program Languages: IL, LD, ST, SFC, CFC, FBD
- Power Supply: DC 24V, ±20% range
- Key Protocols: EtherCAT, Modbus-TCP/RTU, CANopen, OPC UA
- Frequency Response: Up to 200 kHz for pulse signals
- Operating Temperature: Standard industrial range (0°C to 55°C typical)
- Environmental Tolerance: Robust design for harsh factory floors
- Noise Immunity: High level of anti-interference capability
- Resolution: High-precision control for smooth motion
Installation Guide
- Mount the module on a DIN rail securely.
- Connect the DC 24V power correctly.
- Wire the digital I/O points as needed.
- Attach Ethernet and EtherCAT cables firmly.
- Always ensure proper system grounding.
Easy Setup & Maintenance
- Use the Type-C USB port for fast program download.
- Built-in diagnostics help find issues quickly.
- LEDs show real-time status for power and comms.
- Regular firmware updates keep performance optimal.
- Backup your projects easily to a USB drive.
Compatibility Notes
- Works with standard EtherCAT drives and devices.
- Connects to most HMI panels and SCADA software.
- Supported protocols ensure easy system integration.
Certifications & Packaging
- Certifications: CE, RoHS compliant.
- Box Includes: 1x FL8-E8-D CPU Module, 1x User Manual, mounting accessories.
Warranty & Shipping
- Warranty: Full 12-month coverage from purchase date.
- Global Shipping: We ship via FedEx, UPS, and DHL for fast delivery.
Where To Use It
- Robotic arms and multi-axis machines.
- Automatic packaging and assembly lines.
- Precision CNC and cutting equipment.
- Material handling and conveyor systems.
Diagnostic Features
- Real-time error codes and system messages.
- Network scan tool checks EtherCAT slave health.
- I/O status is visible on the module’s LEDs.
Frequently Asked Questions
Q: What is the main use of this module?
A: It is a central controller for machines needing multi-axis motion control, like robots.
Q: Can I connect more than 8 axes?
A: Yes, by using the EtherCAT port you can connect a network with many more drives.
Q: How do I program this PLC?
A: Use the standard software with ladder logic, structured text, or other languages you prefer.
Q: Is wireless expansion possible?
A: Yes, add a left-side WiFi or 4G card for remote connectivity.
Q: What is a common setup mistake?
A: Not terminating the EtherCAT network cable properly, which can cause communication errors.
Q: How can I improve motion smoothness?
A: Fine-tune the servo drive parameters first, then use the built-in electronic cam/gear functions.
Q: My output point is not working. What should I check?
A: First, verify the output LED on the module. Then check your wiring and the common power connection.
