Description
Description

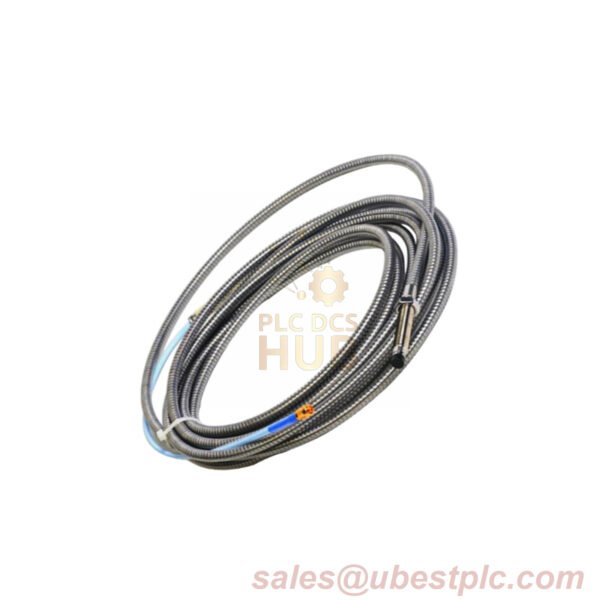

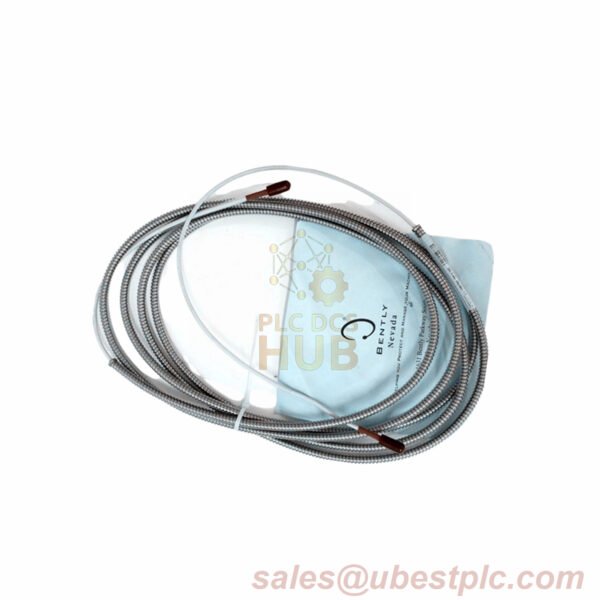

The Bently Nevada 330130-030-13-05 Extension Cable is designed to provide a reliable connection between your 3300 XL Proximity Probe and Proximitor Sensor. Made in the USA, this extension cable offers high durability and robust performance, especially when integrated into high-end monitoring and condition-based maintenance systems. This product comes with CSA, ATEX, and IECEx approvals, making it ideal for use in hazardous environments. It also features armored FluidLoc cable, ensuring protection from oil and fluid leakage.
Technical Data
- Brand: Bently Nevada
- Model: 330130-030-13-05
- Suffix: 03 (length), 13 (armored FluidLoc cable)
- Cable Type: Armored FluidLoc Cable
- Length Options: 3.0 meters (9.8 feet)
- Approvals: CSA, ATEX, IECEx
- Power:
- -17.5 Vdc to -26 Vdc without barriers (max. consumption 12 mA)
- -23 Vdc to -26 Vdc with barriers
- Operating voltages > -23.5 Vdc may reduce the linear range
- Resistance:
- Core Resistance (RCORE): 0.77 ± 0.12 Ohm (3.5 m cable)
- Jacket Resistance (RJACKET): 0.23 ± 0.05 Ohm (3.5 m cable)
- Capacitance: 69.9 pF/m (21.3 pF/ft) typical
- Connectors:
- ClickLoc connectors
- Gold-plated for corrosion resistance
- Optional FluidLoc protection to prevent fluid leakage
- Field Wiring:
- 0.2 to 1.5 mm² (16 to 24 AWG)
- Shielded Triad Cable recommended
