Description

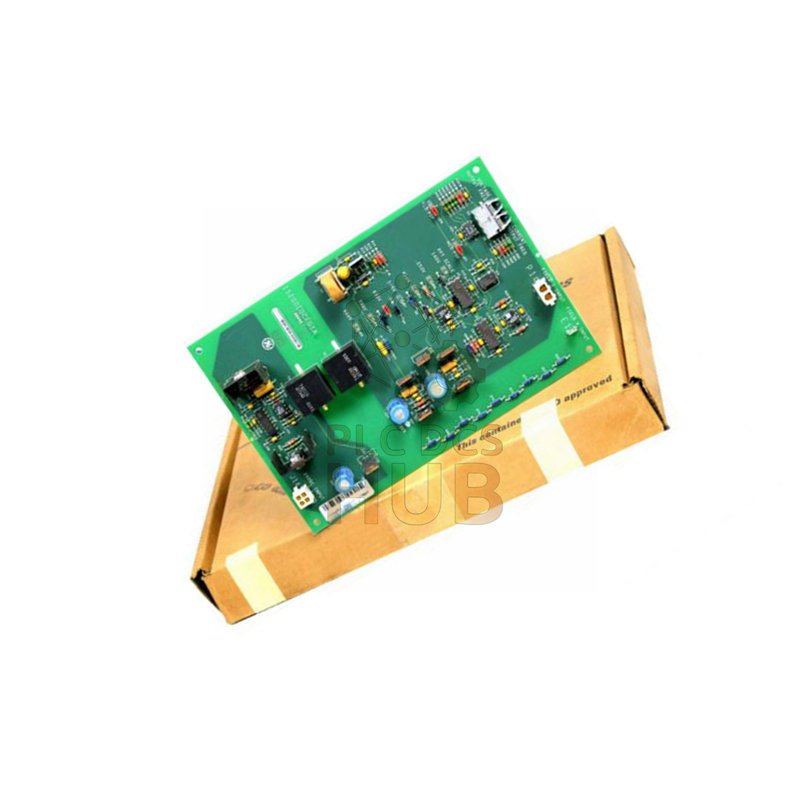

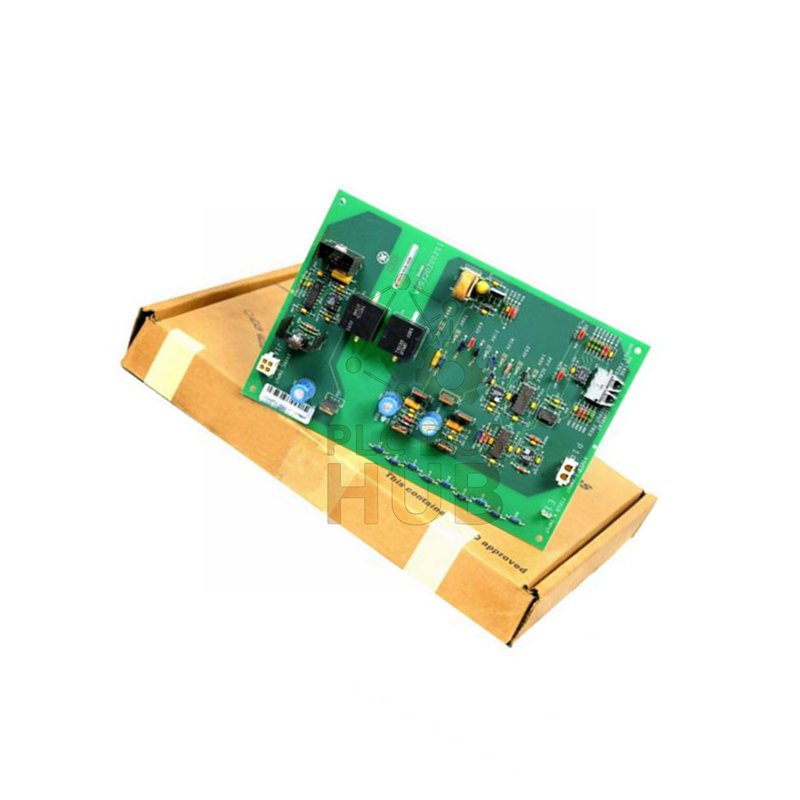

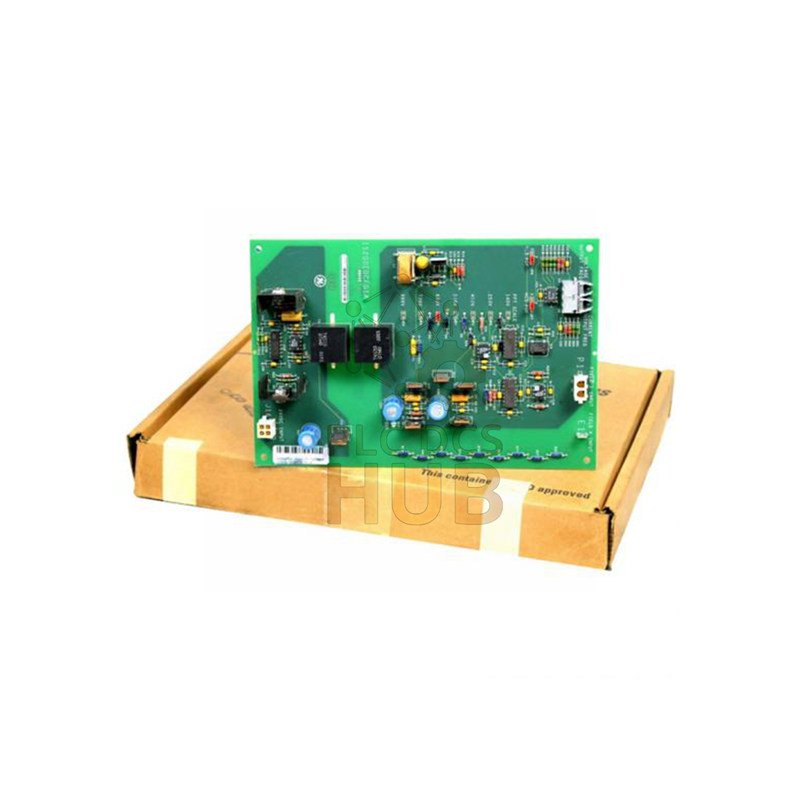

GE IS200EDCFG1A DC Feedback Board
The IS200EDCFG1A measures field current and voltage in EX2100 excitation systems. This board uses fiber-optic communication for excellent noise protection. It works with SCR bridges to monitor generator performance. The IS200EDCFG1A ensures reliable operation in tough industrial conditions.
Technical Details
Brand: General Electric
Model: IS200EDCFG1A
Series: EX2100 Excitation Control
Product Type: Exciter DC Feedback Board
Input Power: 24V DC External
Output Voltages: +15V, -15V, +5V DC
Field Voltage Range: 7 selectable settings
Field Current Input: 500mV maximum from DC shunt
Fiber Distance Plastic: Up to 10 meters
Fiber Distance Silica: Up to 90 meters
Operating Temperature: -30°C to +65°C
Board Compatibility: Hardware Form A
Installation & Shipping
Easy setup with fiber-optic cables. Use plastic fiber for short runs. Use silica fiber for longer runs. Keep cable bends wide. We ship worldwide via FedEx, UPS, DHL. Fast delivery guaranteed.
Warranty & Support
Full 12-month warranty included. All boards tested before shipping. Quick repair service available.
Frequently Asked Questions
What does the IS200EDCFG1A board measure?
It measures field voltage and field current at the SCR bridge.
How does the board communicate with other components?
It uses fiber-optic links to talk with the EISB board.
What power supply does this board need?
It requires an external 24V DC power supply.
What are the fiber cable options?
Plastic fiber for 10 meters. Hard-clad silica for 90 meters.
How do I know the board has power?
A green PSOK LED lights when power is good.
