Description

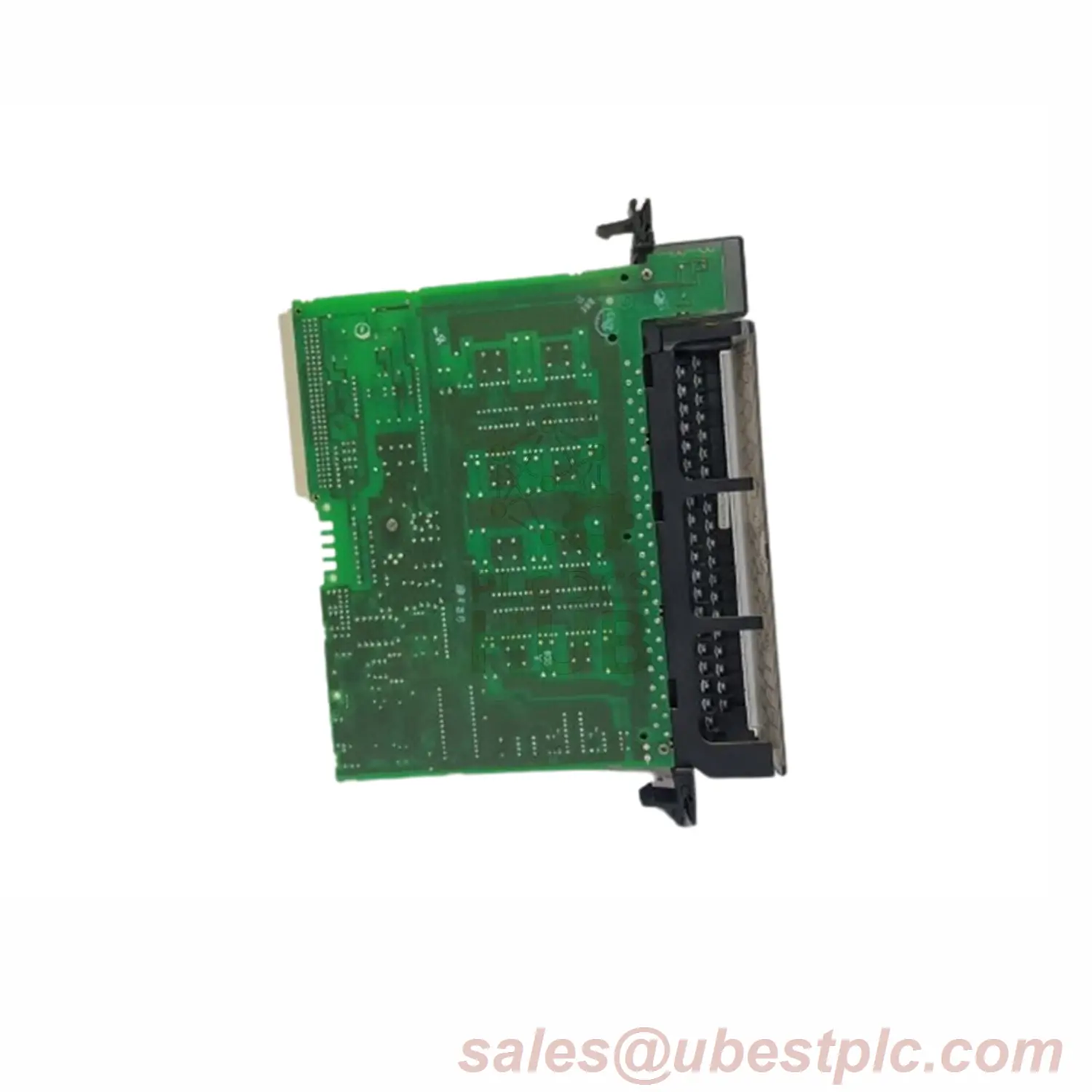

GE Fanuc IC697ALG444 Analog Input Module
Expand your Series 90-70 PLC capabilities with this 16-channel analog input module. Designed for industrial precision, it features gold-plated contacts and supports both current (4-20mA) and voltage (-10V to +10V) signals. Requires IC697ACC775 terminal block.
Key Technical Data
| Brand | GE Fanuc |
| Model | IC697ALG444 |
| Series | 90-70 PLC |
| Input Type | 16-channel analog |
| Voltage Range | -10V to +10V |
| Current Range | 4-20mA |
| Accuracy | ±2mV at 10V calibration |
| Power Requirement | 5V DC (backplane) |
| Terminal Block | IC697ACC775 |
Installation Guide
- Mount in Series 90-70 PLC rack
- Use only IC697ACC775 terminal block
- Ensure 5V backplane power is stable
- Ground shield wires for noise reduction
Diagnostics & Maintenance
- Check LED status lights for errors
- Clean contacts with alcohol wipes quarterly
- Verify calibration annually
- Monitor input fluctuations in PLC software
Packaging Includes
- IC697ALG444 module (1 unit)
- Installation guide
- Shipping: FedEx, UPS, DHL options
FAQ
Q: Compatible with 90-30 PLCs?
A: No, Series 90-70 only
Q: Accepts voltage and current simultaneously?
A: Yes, per channel configuration
Q: Environmental rating?
A: Standard industrial (0-60°C)
