Description
Product Overview

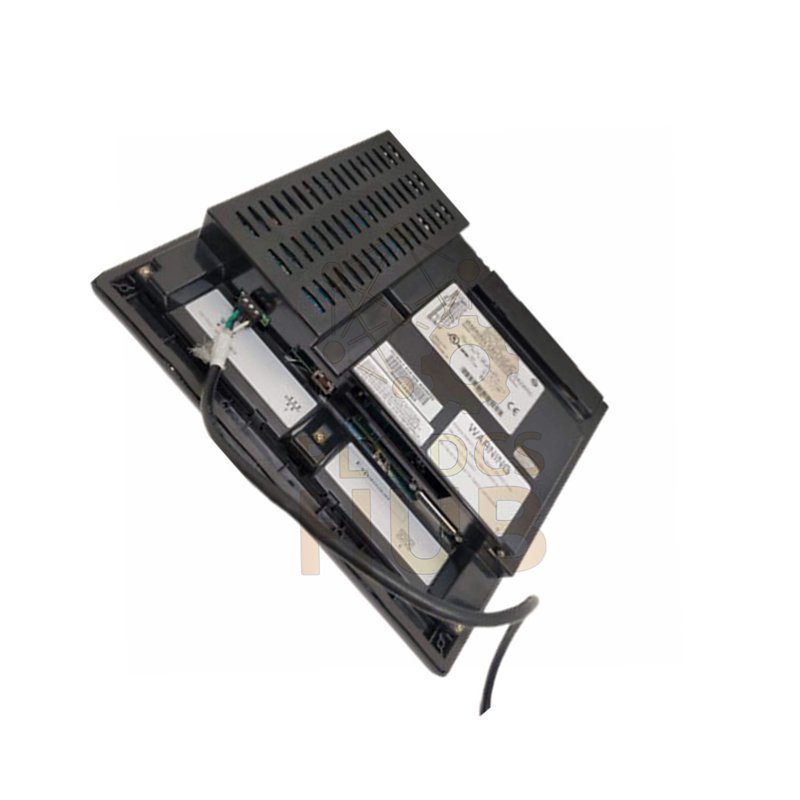

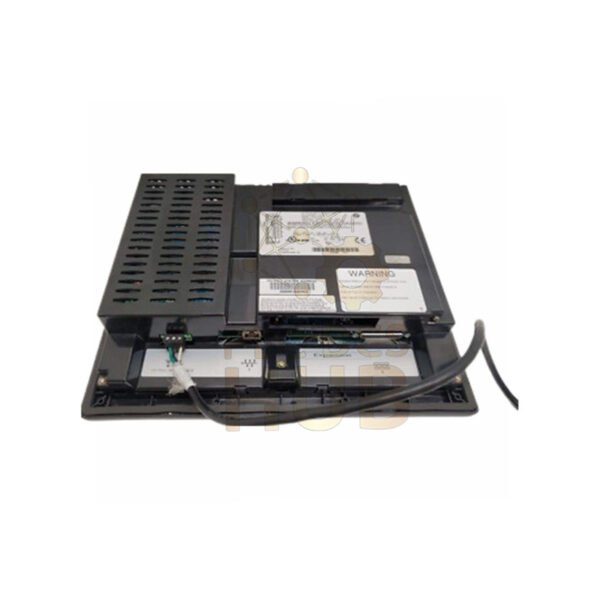

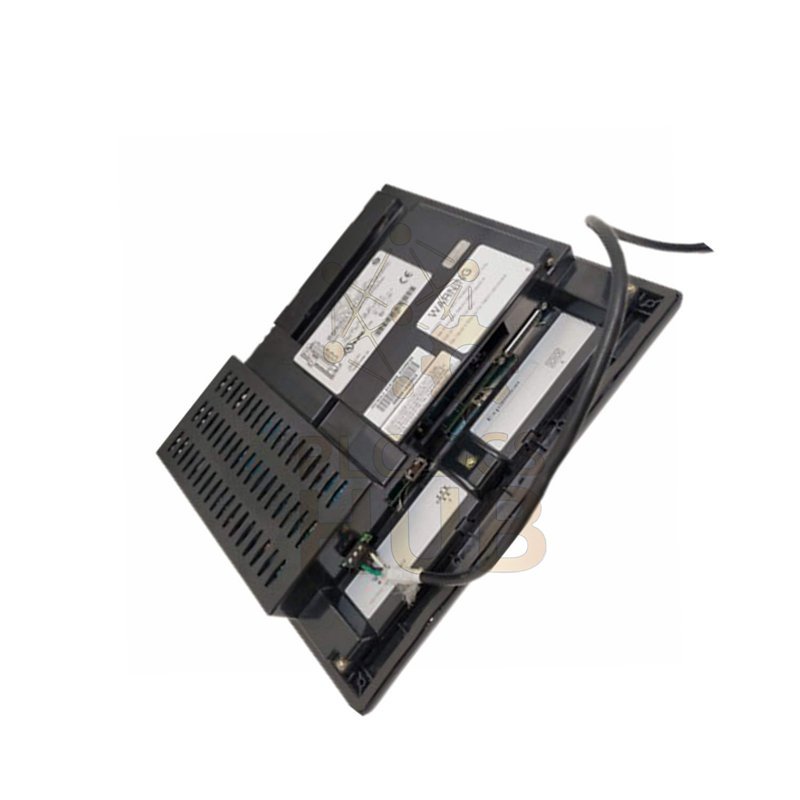

The GE Fanuc Emerson IC754VBI12CTD is a QuickPanel series HMI.
It provides clear operator control and fast machine interaction.
This unit supports reliable industrial communication.
It suits demanding automation environments.
- Series: QuickPanel
- Module Type: Operator Interface HMI
- Core Function: Human-Machine Interaction
- Software: Proficy View Machine Edition
Key Advantages
- Large 12-inch color display improves visibility
- Touchscreen design enables fast user input
- Multiple ports support flexible system integration
- LED indicators simplify system status checks
- Rugged build suits continuous industrial operation
Technical Specifications
- Brand: GE Fanuc Emerson
- Model: IC754VBI12CTD
- Product Line: QuickPanel
- Display Size: 12 inches
- Display Type: Full Color LCD
- Resolution: High clarity industrial resolution
- Input Method: Resistive Touchscreen
- Internal Memory: 32 MB
- Power Supply: 12 or 24 VDC
- Power Stability: Designed for industrial DC sources
- Communication: RS232, RS485
- Additional Ports: Ethernet, USB Host
- Communication Cable: HMI-CAB-CS1
- Weight: 15.0 lbs (6.8 kg)
Environmental Performance
- Operating Temperature: 0 to 50 °C
- Storage Temperature: -20 to 60 °C
- Humidity Tolerance: Up to 85% non-condensing
- Environment: Dry, dust-free, non-corrosive
- Anti-Interference: Industrial-grade EMC resistance
Status Indicators & Diagnostics
- Steady amber shows system booting
- Steady green confirms normal operation
- Blinking green indicates backlight off
- Blinking red warns backlight failure
- Ethernet LEDs show link and speed activity
Installation Guidelines
- Install with proper ventilation clearance
- Avoid heat sources and vibration zones
- Ensure stable DC power wiring
- Ground the unit for noise protection
Commissioning & Maintenance
- Quick startup with Proficy View software
- USB ports ease program loading
- Battery compartment supports data retention
- Front access simplifies routine checks
Compatibility
- Works with GE PLC and PAC systems
- Supports serial and Ethernet devices
- Fits legacy and modern automation lines
Certifications
- Manufactured to industrial quality standards
- Complies with common automation safety norms
Package Contents
- 1 × IC754VBI12CTD QuickPanel HMI
- Protective industrial packaging
- Standard inspection before shipment
Warranty & Shipping
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
- Fast global delivery available
Typical Applications
- Factory automation control panels
- Packaging and material handling systems
- Process monitoring stations
- Machine visualization interfaces
Frequently Asked Questions
Is this HMI suitable for harsh factories?
Yes. It supports wide temperature and humidity ranges.
Can it replace older QuickPanel models?
Yes. It fits many legacy GE automation upgrades.
Does it support long-term operation?
Yes. It is designed for continuous industrial use.
Is configuration difficult for new users?
No. The software is clear and widely documented.
How do operators detect failures quickly?
The LED indicators provide instant visual alerts.
