Description

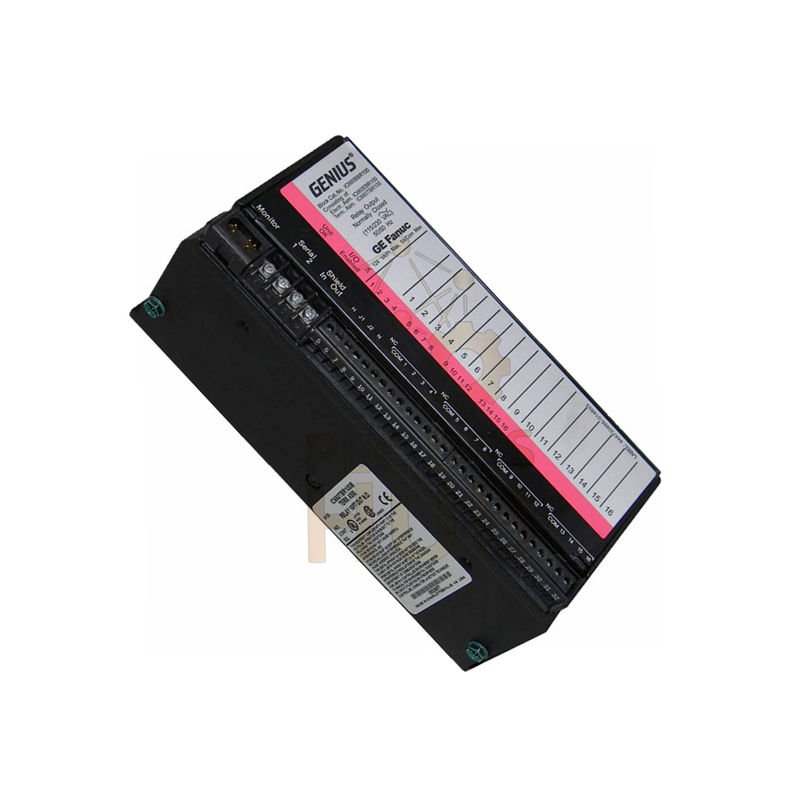

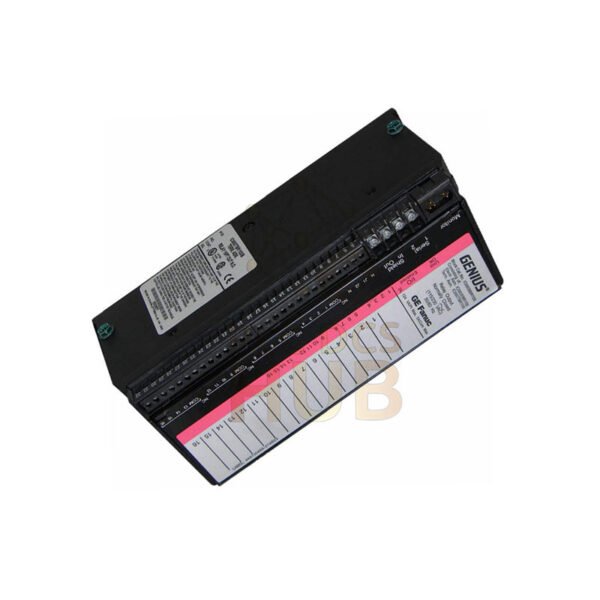

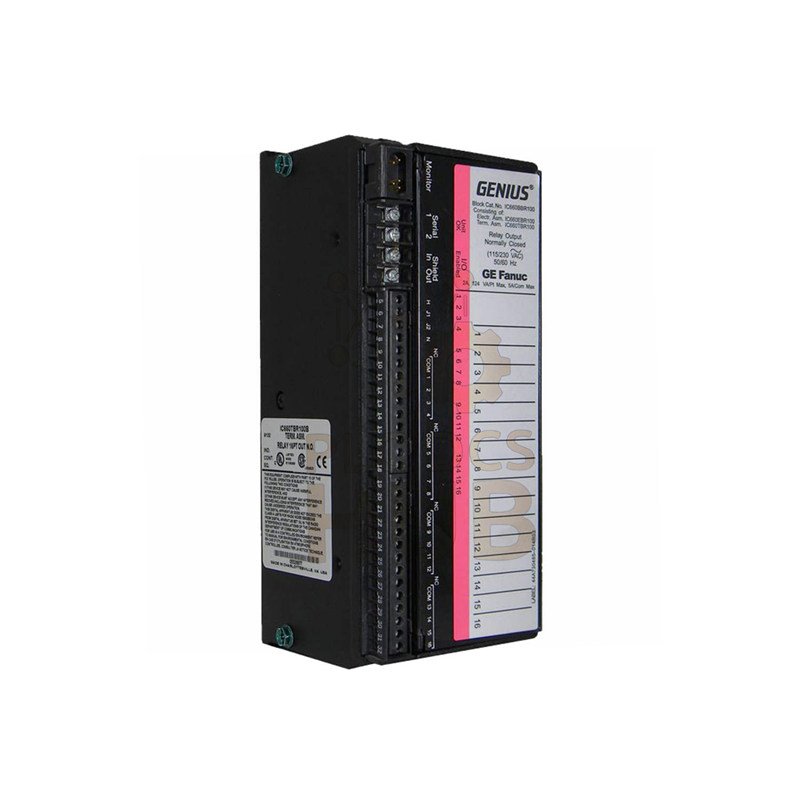

Product Overview
- Brand: GE Fanuc
- Series: Genius I-O
- Model: IC660BBR100
- Type: Relay Output Block
- Built for stable industrial output control
- Designed for long service life
Functional Description
- This block controls field loads safely
- It isolates control and power circuits
- The relay design supports mixed loads
- Suitable for harsh factory floors
- Ideal for legacy and modern systems
Technical Specifications
- Identification
- Manufacturer: GE Fanuc
- Part Number: IC660BBR100
- Product family: Genius I-O
- Output Structure
- Total points: 16
- Groups: 4 independent commons
- Points per group: 4
- Output form: Electromechanical relay
- Electrical Ratings
- Rated voltage: 115 VAC or 230 VAC
- Operating range: 93–132 VAC
- High range: 185–265 VAC
- Max load current: 2 A per point
- Inrush tolerance: Up to 10 A short duration
- Performance
- Switch response time: 10 ms
- Mechanical life: Over 10 million cycles
- Electrical life: Over 100,000 cycles at full load
- Contact resistance: Low and stable
- Power & Isolation
- Internal power draw: 87 mA at 115 VAC
- Isolation strength: 1500 V
- Noise immunity: High industrial level
- Environmental Limits
- Operating temperature: -10°C to 60°C
- Storage temperature: -40°C to 85°C
- Humidity tolerance: 5–95% non-condensing
- Physical Properties
- Dimensions: 3.0 x 8.0 x 4.0 inches
- Weight: 1.8 kg
- Wire size: 14–22 AWG
Installation Notes
- Mount on standard Genius I-O base
- Separate power and signal wiring
- Tighten terminals evenly
- Allow airflow around the unit
Maintenance Advantages
- No calibration required
- LED indicators simplify fault checks
- Relays handle frequent switching
- Easy field replacement
Compatibility
- Works with Genius I-O controllers
- Integrates with GE PLC platforms
- Supports AC and DC field loads
Typical Applications
- Motor starters and contactors
- Solenoid valves
- Lighting control panels
- Process automation systems
Warranty & Shipping
- Warranty: 12 months
- Shipping via FedEx, UPS, DHL
- Anti-static and shock-safe packing
FAQ
- Can this module drive inductive loads
- Yes, relays handle coils and solenoids well
- What helps extend relay life
- Use surge suppression on heavy loads
- Is this suitable for retrofit projects
- It fits many existing Genius I-O racks
- How does it behave in noisy plants
- High isolation reduces false switching
- What is a common wiring mistake
- Mixing commons across groups
