Description
Versatile Relay Control Hub

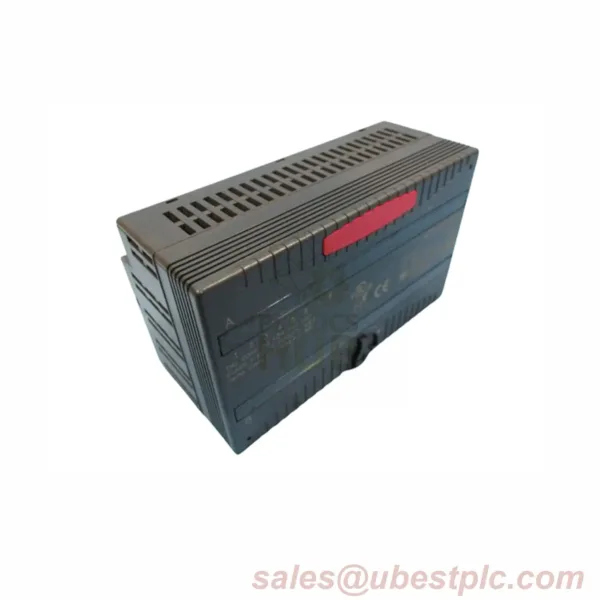

The GE Fanuc IC200MDL930 is an 8-channel relay output module for VersaMax systems. Supports 0-265V AC/DC loads with individual isolation – ideal for flexible industrial switching.
Core Specifications
- ⚡ Outputs: 8 NO (Form A) relays
- ???? Voltage Range: 0-125V DC / 0-265V AC
- ????️ Isolation: 250V AC continuous (channel-to-channel & logic-to-ground)
- ⏱️ Response: 10ms on/off (mechanical relay)
Key Features
- ???? Dual Power Compatibility: AC/DC loads (resistive or inductive*)
- ???? LED Indicators: Per-channel status + system OK
- ⚙️ Relay Specs: Silver alloy contacts | 20 cycles/min switching
- ???? Certifications: CE | cULus | Global standards
Industrial Applications
- ???? Motor starter control panels
- ???? Facility lighting/HVAC systems
- ???? Conveyor belt actuator control
Installation Notes
- ⚠️ Thermal Limits: 0°C to 30°C (forced cooling required)
- ???? Load Ratings:
• 2A @5-30V DC / 5-265V AC (resistive)
• 0.2A @31-125V DC (resistive)
• 10mA minimum per channel
- ⚡ External Protection: Snubbers/fuses needed for inductive loads
Package & Support
- ???? IC200MDL930 module + mounting guide
- ???? 12-month reliability warranty
- ???? Shipping: FedEx/UPS/DHL – global delivery in 3-5 days
