Description
Universal Power Supply Module

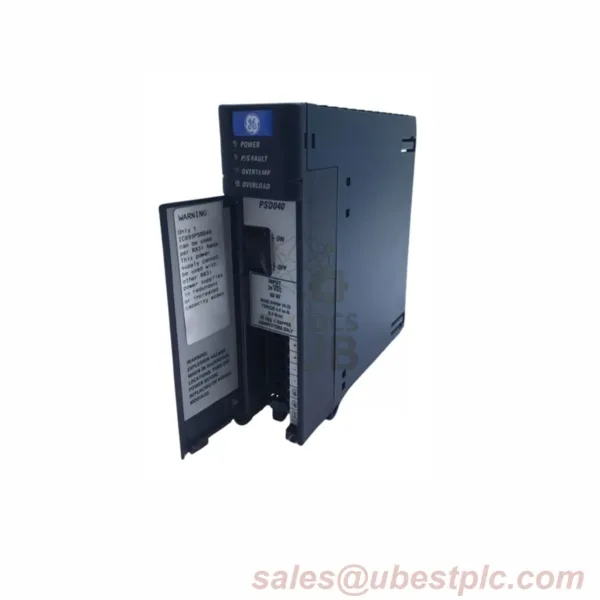

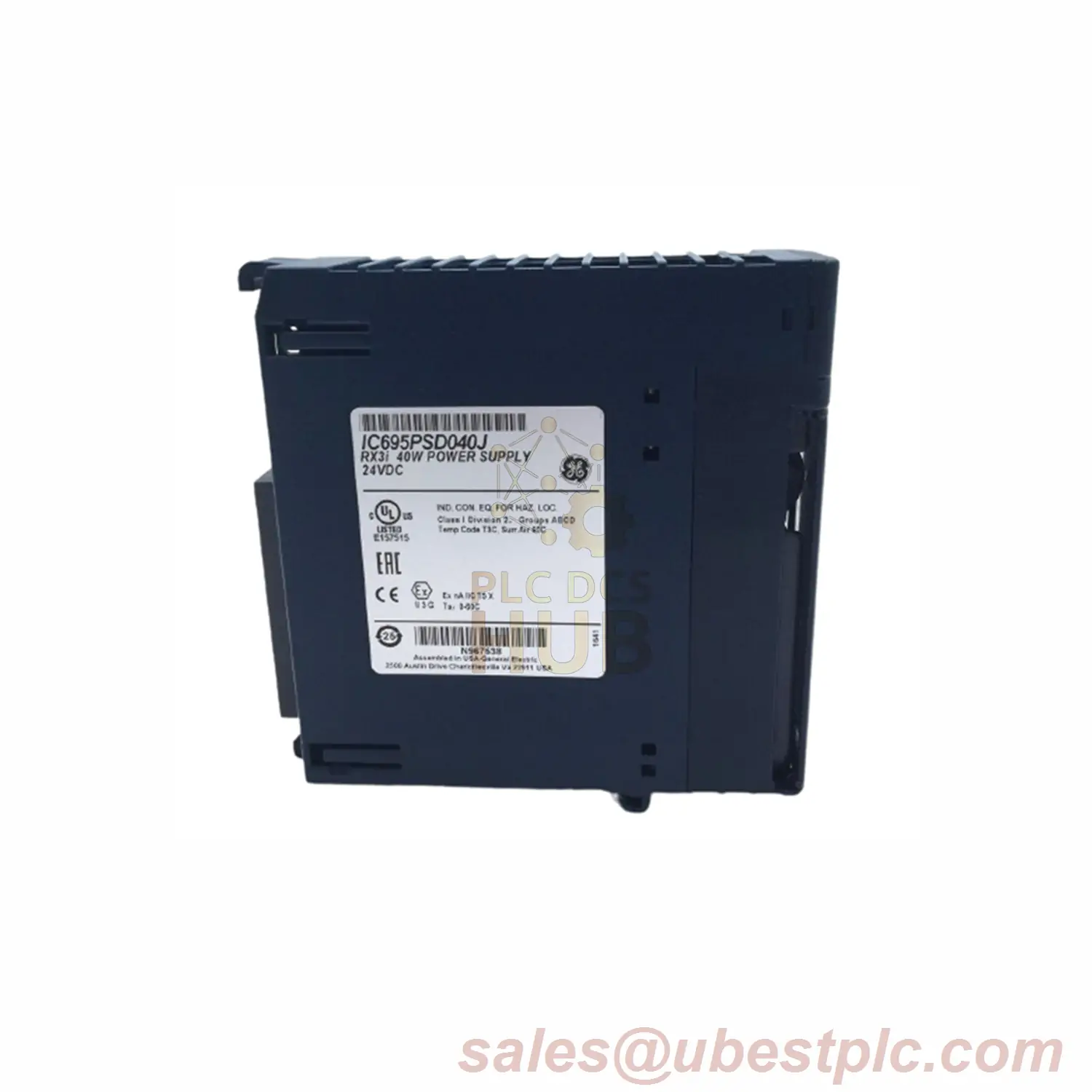

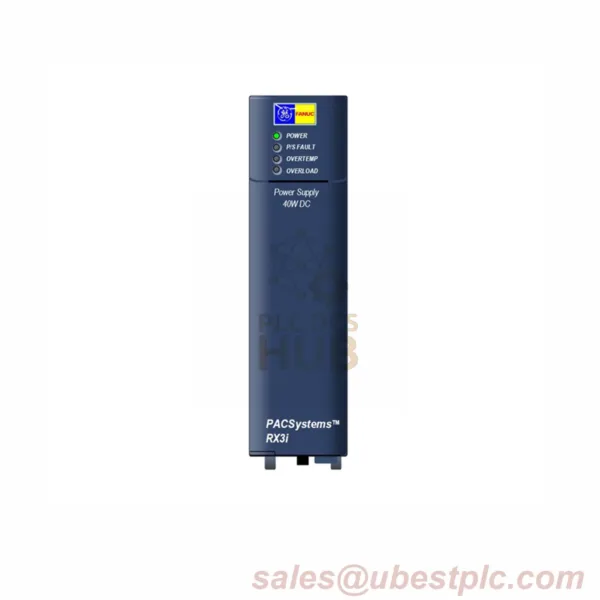

The IC695PSD040 by Emerson Automation (ex-GE) powers RX3i systems with 40W output. Supports flexible voltage ranges and daisy-chaining for reliable industrial setups.
Key Features
- ✅ Triple Output: 5.1V (6A), 3.3V (9A), 24V (external circuits)
- ✅ Wide Input Range: 12-30V DC (run), 18-30V DC (start)
- ✅ Daisy-Chain Support: Connect up to 2 units
- ✅ LED Alerts: Power, fault, temperature, overload
- ✅ 12-month warranty
Technical Specs
- Brand: Emerson
- Model: IC695PSD040
- Input: 12-30V DC (60W max)
- Output: 5.1V (30W), 3.3V (30W), 24V (user circuits)
- Ride-Through: 10ms power dip tolerance
- Installation: Slot 0 in RX3i backplane
- Shipping: FedEx, UPS, DHL
Setup Guide
- Install in Slot 0 of RX3i universal backplane.
- Connect 12-30V DC power source.
- Check LEDs: Green = normal, Red = fault.
Compatibility
- PACSystems RX3i universal backplanes
- Series 90-30 I/O modules
- Max 2 units daisy-chained (no capacity increase)
Real Use Case
A manufacturing plant used IC695PSD040 to stabilize power for 50+ sensors, achieving 99.9% uptime despite voltage fluctuations.
FAQ
Q: Can it support redundancy?
No. Use separate backplanes for high-power needs.
Q: How to monitor status?
LEDs show power, faults, temperature, and overload.
