Description

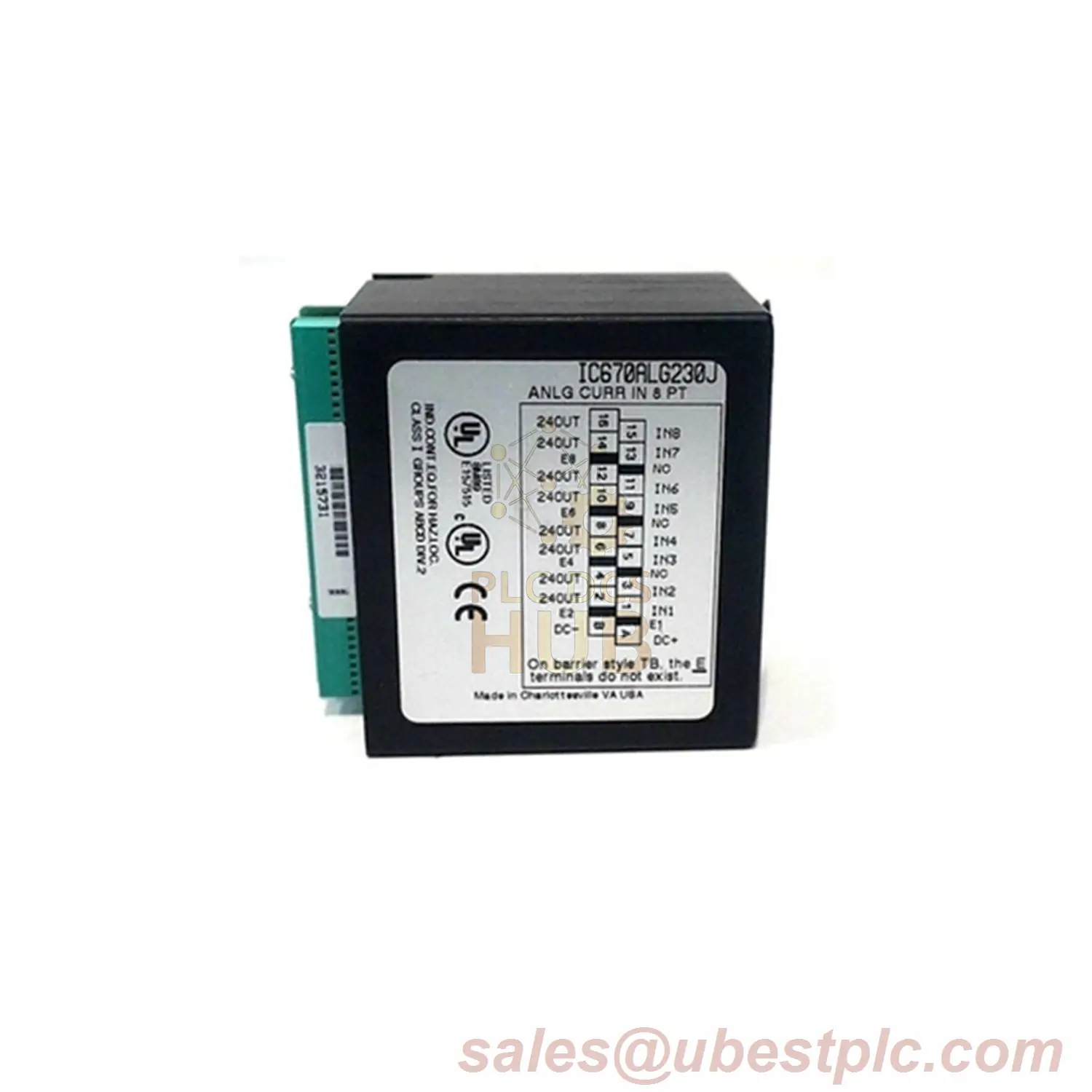

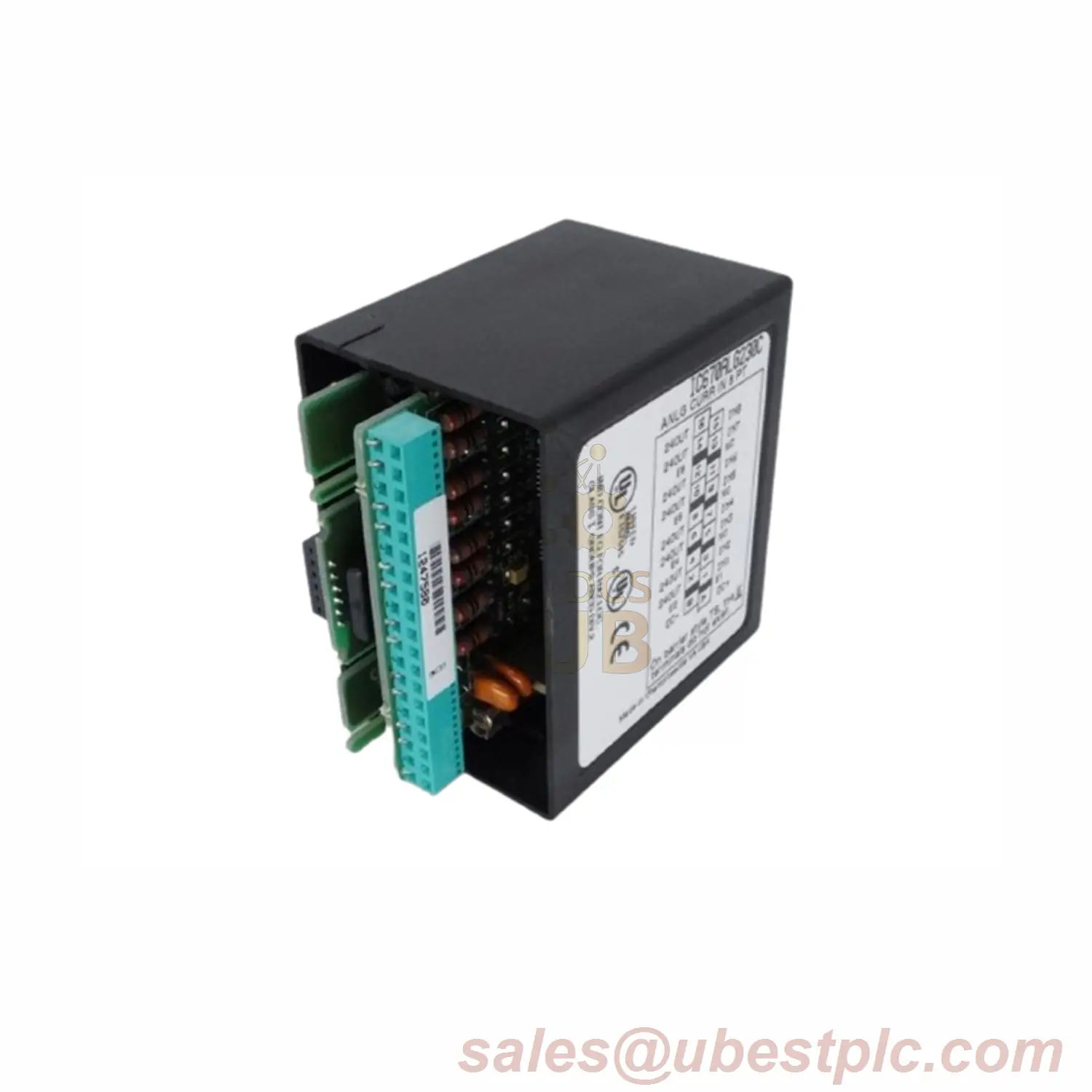

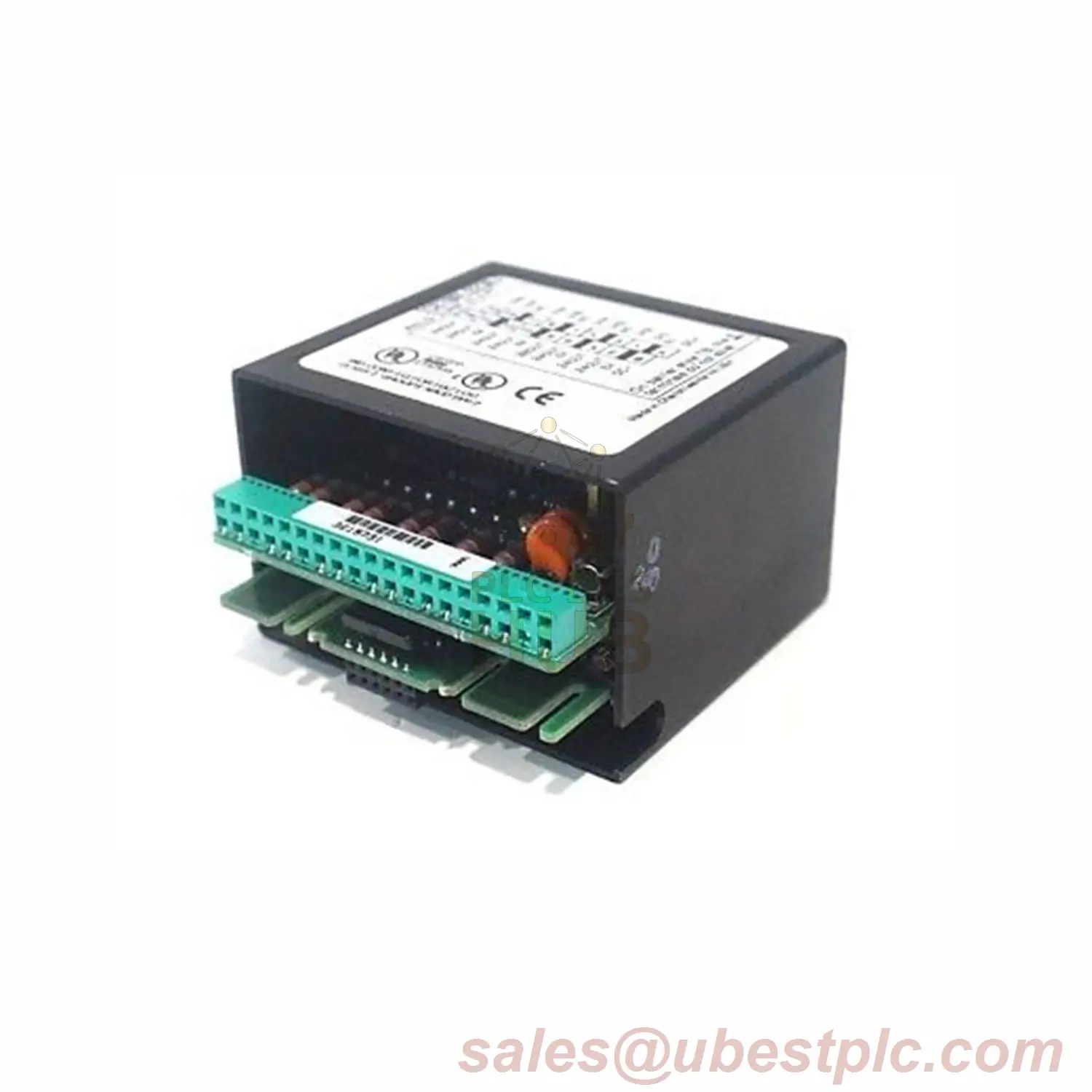

Product Basics
- Brand: GE Fanuc
- Model: IC670ALG230
- Type: 8-Channel Analog Input Module
- Input Type: 0-25 mA / 0-30V DC
Electrical Specs
- Resolution: 12-bit (detects 5µA changes)
- Speed: 60µs per channel
- Input Impedance: 2.87kΩ
- Power: 24V DC (±6V range)
Safety & Power
- Isolation: 1500V AC (1-minute test)
- Continuous Protection: 250V AC
- Power Consumption: 100mA max
Size & Weight
- Dimensions: 3″ x 3″ x 4″ (7.6×7.6×10.2cm)
- Weight: 0.44 lbs (0.2kg)
Common Uses
- Factory machine current monitoring
- Solar panel voltage tracking
- Water treatment pH sensor reading
Support
1-year warranty. Email: sales@ubestplc.com
