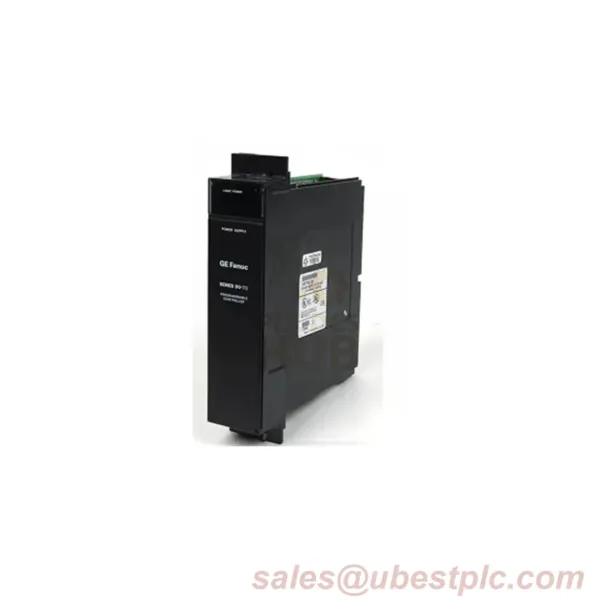

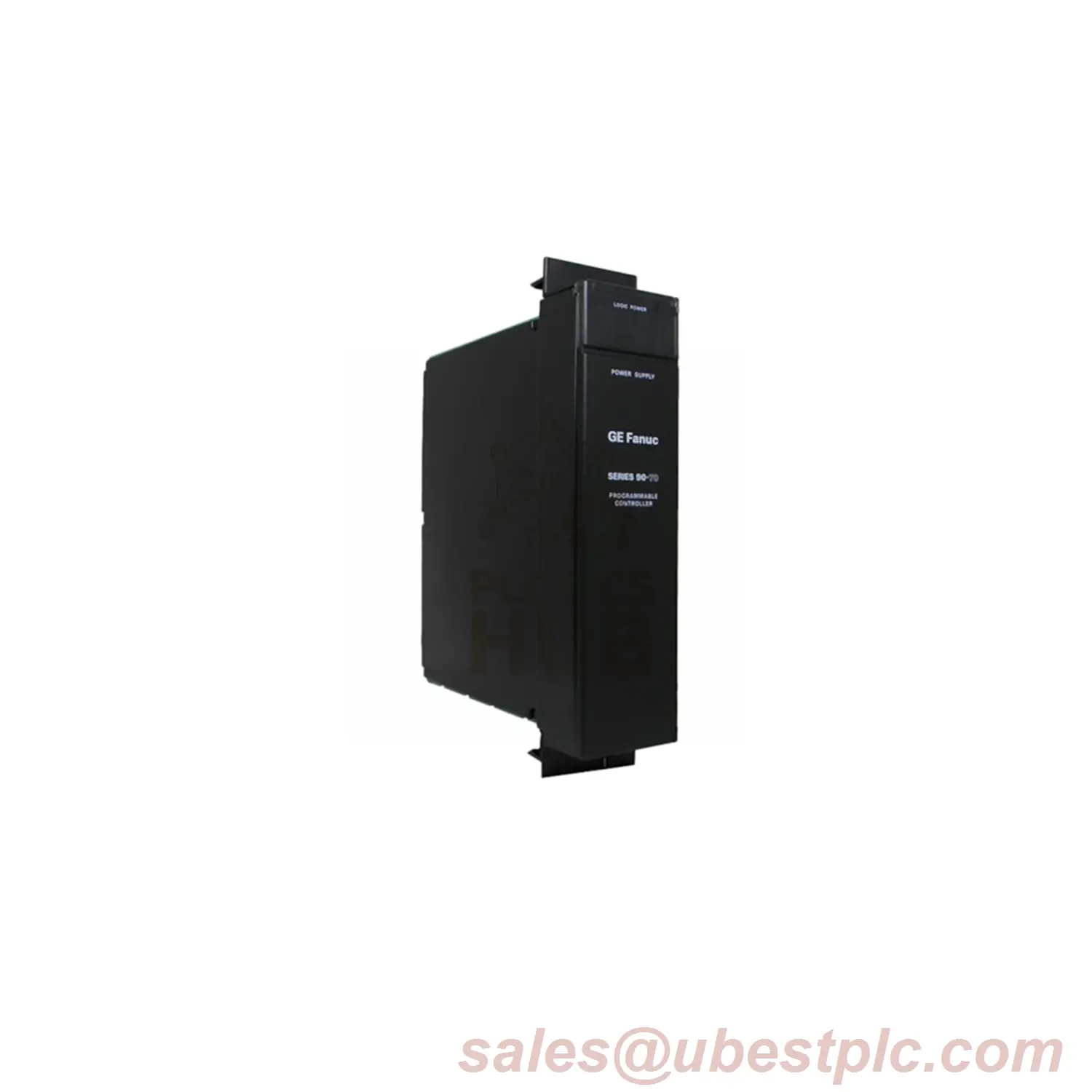

GE Fanuc IC697PWR721 90W Power Supply Module
Product Description
This external power supply for GE Series 90-70 PLC racks delivers 90W regulated power with 5V/12V/-12V outputs. Requires PSA adapter module for rack connection. Ideal for distributed power applications in industrial control systems.
Technical Data
- Brand: GE Fanuc
- Model: IC697PWR721 (Series 90-70)
- Input Voltage: 21-32VDC (24VDC nominal)
- Output Power: 90W maximum
- Output Voltages:
- +5VDC @ 16.5A
- +12VDC @ 1.5A
- -12VDC @ 1A
- Inrush Energy: 22J @ 32VDC
- Operating Temp: 0-60°C
- Shock Rating: 15G for 11ms
Installation Guide
- Mount externally near PLC rack
- Connect to PSA adapter module in rack’s power slot
- Wire 21-32VDC input power source
- Verify output voltages with multimeter
Safety & Specifications
- Operating temperature: 0-60°C
- Meets 15G shock resistance standards
- Backplane connection via PSA adapter only
- 12-month warranty
Packaging & Shipping
- Includes: IC697PWR721 module
- Note: PSA adapter sold separately
- Shipping: FedEx, UPS, DHL (3-5 business days)
FAQs
Q: Can it mount directly in the rack?
A: No – requires external mounting and PSA adapter connection.
Q: What is the PSA module?
A: Power Supply Adapter – interfaces between this unit and rack backplane.
Q: Maximum cable length to rack?
A: 3 meters recommended (consult manual for specifics).
Q: Can it power non-GE equipment?
A: Yes – standard DC outputs compatible with various devices.
