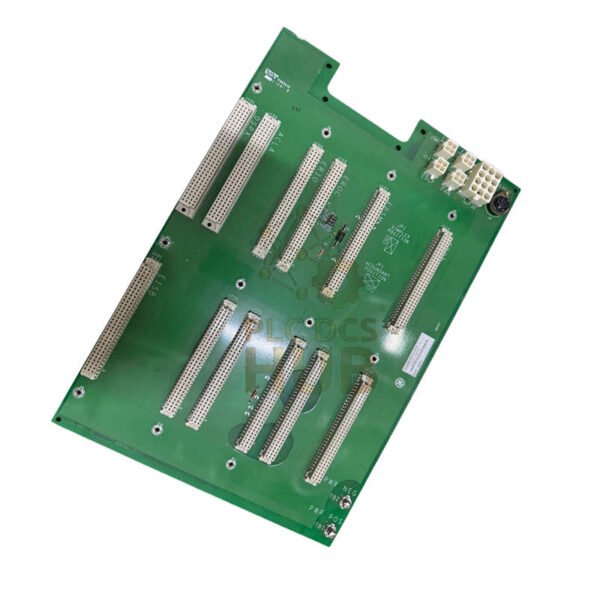

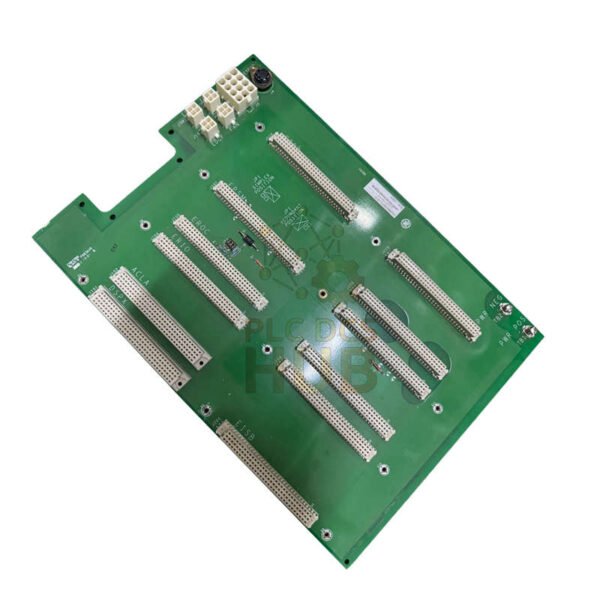

GE IS200ERBPG1A Exciter Regulator Backplane Module
The IS200ERBPG1A serves as the central backbone for EX2100 excitation control systems. This robust backplane connects all critical components in your GE turbine control setup. It supports both simplex and redundant operating configurations. The board ensures reliable power distribution and communication between modules.
Technical Specifications
- Manufacturer: General Electric
- Model: IS200ERBPG1A
- Series: EX2100 Excitation Control
- Function: Exciter Regulator Backplane
- Operating Mode: Simplex or Redundant
- Keypad Connectors: 1 (J4)
- Weight: Approximately 3 pounds
- Connector Types: 96-pin and 128-pin DIN
- Board Slots: Multiple VME compatible
- Origin: United States
Supported Modules
- Application Control Layer board (ACLA)
- Digital Signal Processing board (DSPX)
- Exciter Regulator Input/Output board (ERIO)
- Exciter Power Supply Module (EPSM)
- IGBT Exciter Regulator Interface board (ERDD)
- Exciter Regulator Options Card (EROC)
Connection Interface
- J1F1 and J1F2 – Fan power outputs
- J5M1 – ERRR board power
- J3 – ERRB backplane power
- J4 – Keyboard interface port
- J16 – EDCF board power supply
- Multiple VME backplane connectors
Installation & Compatibility
- Fits standard EX2100 regulator systems
- Compatible with Mark VI turbine controls
- Supports Ethernet Modbus communication
- Works with serial protocol systems
- Easy board insertion and removal
- Master jumpers for mode selection
Frequently Asked Questions
- What systems use the IS200ERBPG1A backplane?
- EX2100 excitation control and GE Mark VI turbine systems.
- How many boards can the backplane support?
- It accommodates six different module types simultaneously.
- What power connections does it provide?
- TB1 for positive power and TB2 for negative power.
- Does it support cooling systems?
- Yes, it provides power connections for two cooling fans.
- Can I use this in redundant configurations?
- Yes, it works in both simplex and redundant operating modes.
