GE QuickPanel IC754CSL06CTD HMI Panel

Description

Product Introduction

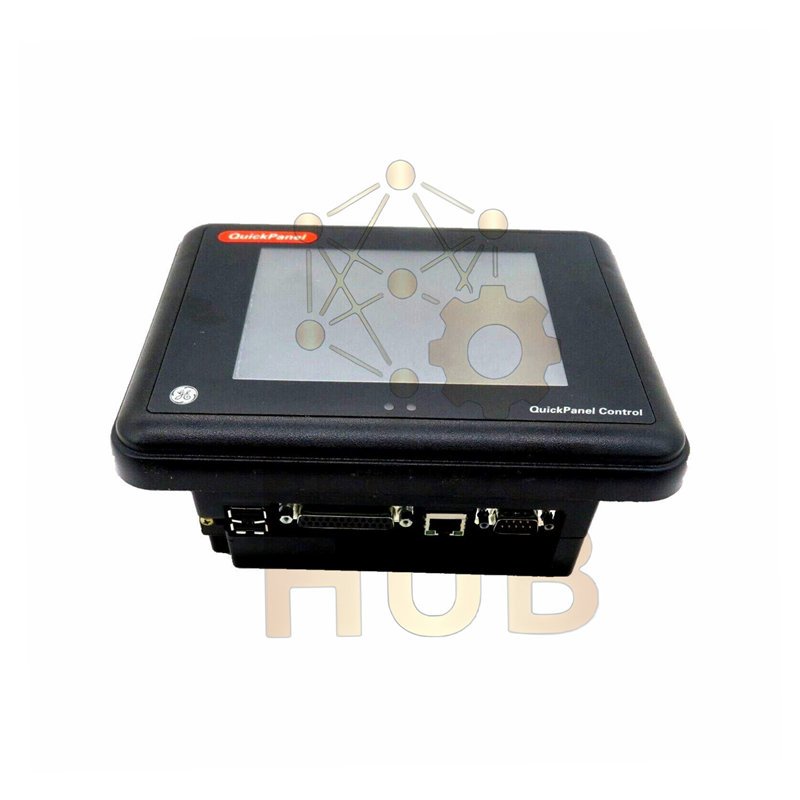

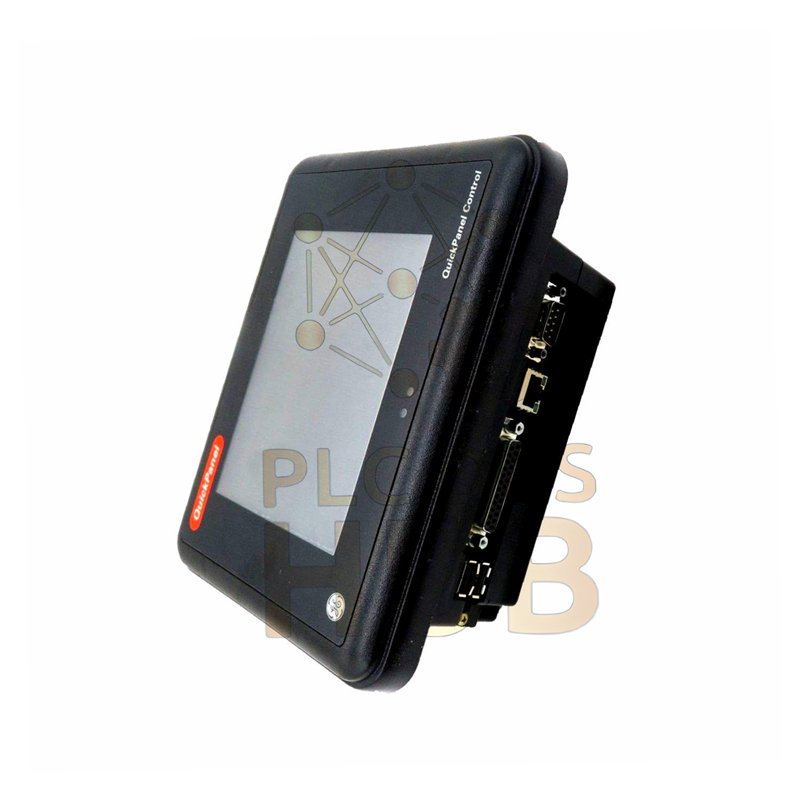

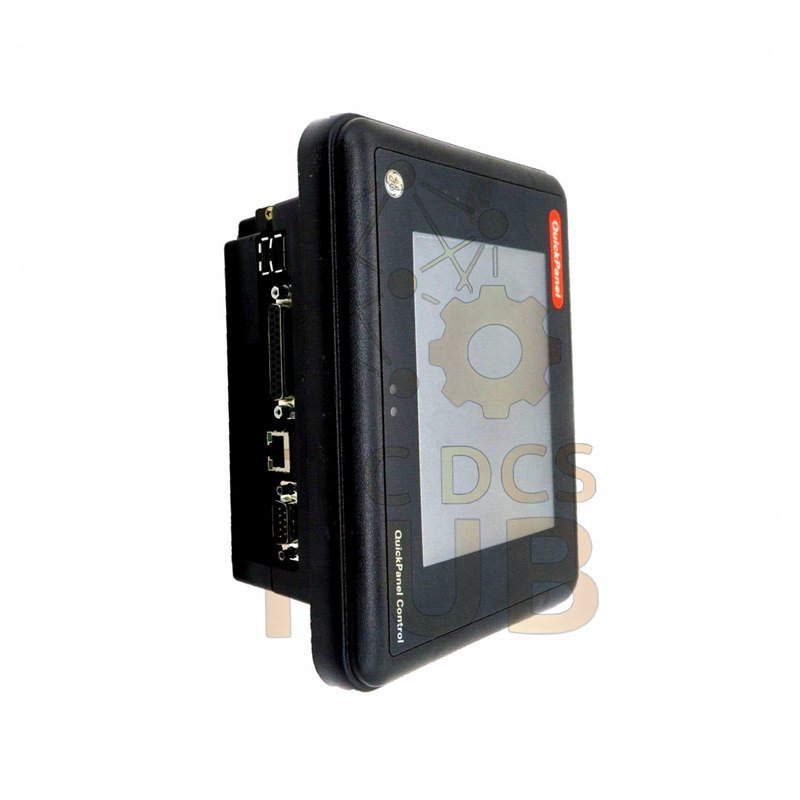

The GE QuickPanel IC754CSL06CTD is a compact HMI for clear machine control.

It shows data on a bright 6 inch TFT screen.

The touchscreen lets users make fast actions.

The unit uses an Intel PXA255 CPU for smooth tasks.

It runs on Windows CE for simple setup.

The panel supports Ethernet and serial links for broad use.

Key Features

• 6 inch color TFT with sharp runtime graphics.
• Touch input with fast response and high accuracy.
• 32 MB Flash for projects and data.
• 32 MB DRAM for stable runtime.
• 512 KB SRAM with battery keep alive.
• 512 KB boot ROM for safe start.
• Intel XScale 300 MHz processor.
• Windows CE OS with viewer tools.
• Ethernet, RS232, RS485, USB ports.
• Works in peer or network mode.
• Clear color animation for state checks.
• Good resistance to noise in plants.
• Stable design for long duty use.

Technical Specifications

• Brand: GE Fanuc Emerson
• Model: IC754CSL06CTD
• Series: QuickPanel
• Type: HMI Operator Interface
• Display size 6 inch.
• Resolution 320 x 240 pixels.
• Display type colored TFT.
• Touch type resistive 12 bit.
• CPU Intel PXA255.
• Clock speed 300 MHz.
• Flash memory 32 MB.
• DRAM 32 MB.
• SRAM 512 KB.
• Boot ROM 512 KB.
• One Ethernet port.
• One RS232 port.
• One EIA232C or EIA485 DP25S port.
• Two USB ports.
• Power 12 to 30 VDC.
• Real power 24 W.
• Connector Phoenix Contact 1777992.
• Link cable HMI-CABC93.
• Weight 3.01 kg.
• Runs simple tools and file viewers.
• Fast boot for safe field work.
• Wide voltage range for harsh sites.

Installation Guide

• Mount the panel on a clean flat cabinet door.
• Use firm panel clips for a tight seal.
• Supply clean 12 to 30 VDC power.
• Use short shielded cables for serial links.
• Keep USB ports free from dust.
• Check the gasket before startup.

Ease of Setup and Service

• Touch objects allow clear actions.
• Simple Windows CE tools speed edits.
• Backlight change takes little time.
• Memory parts load projects quickly.
• Logs help find field issues fast.

Compatibility

• Works with GE PLCs and many field devices.
• Supports peer links and plant networks.
• Reads tags from common controllers.
• USB ports support file updates.

Warranty

• 12 month warranty on hardware faults.
• Normal use must follow install rules.

Shipping Options

• FedEx
• UPS
• DHL

Typical Uses

• Pump control HMI pages.
• Conveyor start and stop screens.
• Mixing process graphics.
• Temperature and flow panels.
• Machine status review and logs.

FAQ

• How can I reduce screen glare?
• Place the panel away from direct plant lights.
• How do I speed project load time?
• Keep project files small and remove unused images.
• Why does the port lose link in cold areas?
• Check cable strain and use rated connectors.
• How can I improve touch accuracy?
• Clean the screen and use the built-in calibrate tool.
• How do I keep stable power during drops?
• Add a small DC UPS to hold short dips.

Download the manual for wiring steps and setup tips.
