Description

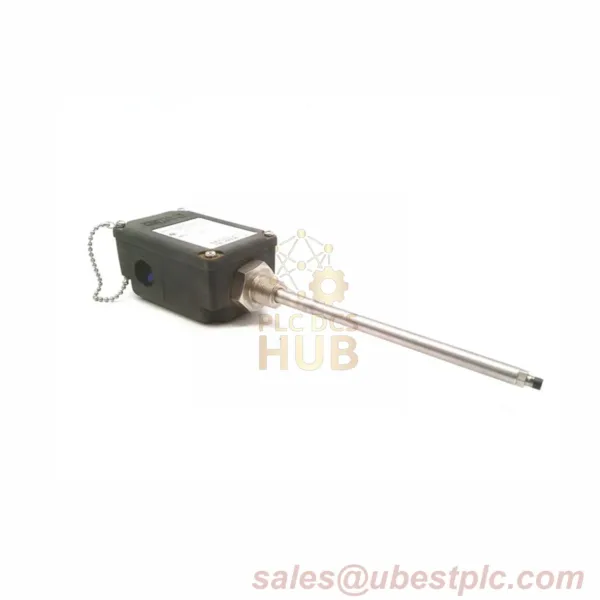

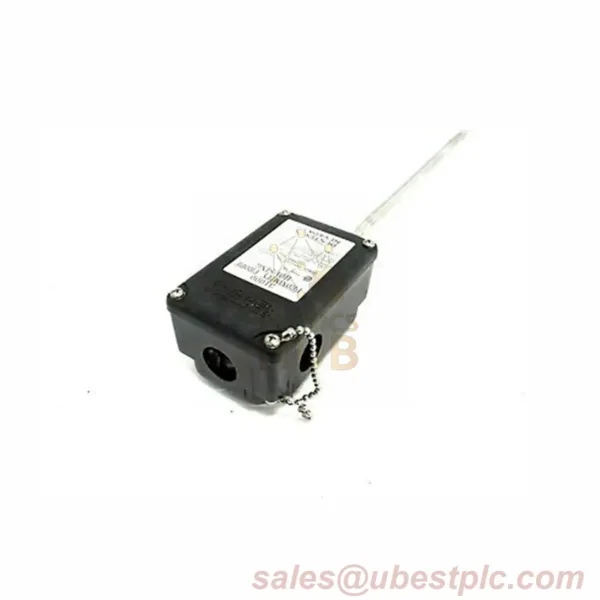

Product Introduction: Your Heavy-Duty Probe Enclosure
This is a Bently Nevada 31000/32000 series proximity probe housing. It is built tough for industrial use. You do not need to buy a probe with it. This gives you flexibility. You can use your own compatible sensor.
Part Number Explained: Your Custom Configuration
Your exact part is 32000-00-00-04-470-01-02. Here is what each part means:
- 32000: The main product series.
- -00: Probe not included. Use your own.
- -00: Probe cable not included.
- -04: Includes a 40 mm long standoff adapter.
- -470: Allows for very deep probe penetration of 470 mm.
- -01: Includes one M25 fitting and two protective plugs.
- -02: Has a 3/4-14 NPT mounting thread.
Key Features & Build Quality
- Extreme Protection: Rated Type 4X and IP66. Keeps out dust and water jets. Safe for hazardous areas (CENELEC EN50014).
- Built to Last:
- Housing: Strong, conductive PPS plastic.
- Metal Parts: Corrosion-resistant 304 and 303 stainless steel.
- Seal: Reliable Neoprene O-ring.
- Proven Strength:
- Withstands heavy 4 Joule impacts at very hot and cold temperatures.
- Housing can support over 200 lbs of force in tests.
- Use a torque wrench: tighten the nut to 260 in·lb (29.4 N·m).
- Works Anywhere: Operates from -51°C to +105°C (-60°F to 221°F).
- Weight & Origin: Weighs about 1.2 kg (2.6 lb). Made in the U.S.A.
How to Use & What Fits
This housing is for machinery monitoring systems. It is perfect for applications needing deep sensor reach. It works with Bently Nevada 3300 XL series 8mm probes and similar. You must source the probe and cable separately.
Easy Setup & Trusted Certifications
Installation is simple with the NPT thread. The design is service-friendly. It carries major safety marks from CSA and BASEEFA. This means it meets high global standards.
What You Get & Our Promise
- One Bently Nevada probe housing as described.
- The 40mm standoff adapter, M25 fitting, and plugs.
- Full 12-month warranty for peace of mind.
- Quick delivery via FedEx, UPS, or DHL to your site.
Expert FAQs: Your Questions Answered
What probe should I use with this housing?
It is designed for standard 8mm diameter proximity probes. We recommend the Bently Nevada 3300 XL 8mm series for guaranteed compatibility.
Why is the penetration depth (470mm) so important?
It allows you to monitor deep inside machinery or through thick casing walls. This is critical for certain turbine, compressor, or gearbox applications.
Does the warranty cover international orders?
Yes. Our 12-month warranty is valid worldwide. It covers defects in materials and workmanship.
What is a common mistake during installation?
Overtightening the retaining nut. Always use a torque wrench and follow the 260 in·lb specification to avoid damaging the housing or probe.
How do I choose between this and a shorter housing?
Select this model if your machine design requires the sensor tip to be 470mm from the mounting point. For shorter distances, choose a different “Penetration Option” code.
Need help selecting the right probe? Contact us: WhatsApp +86 158 8020 0923.
