Description
Product Description

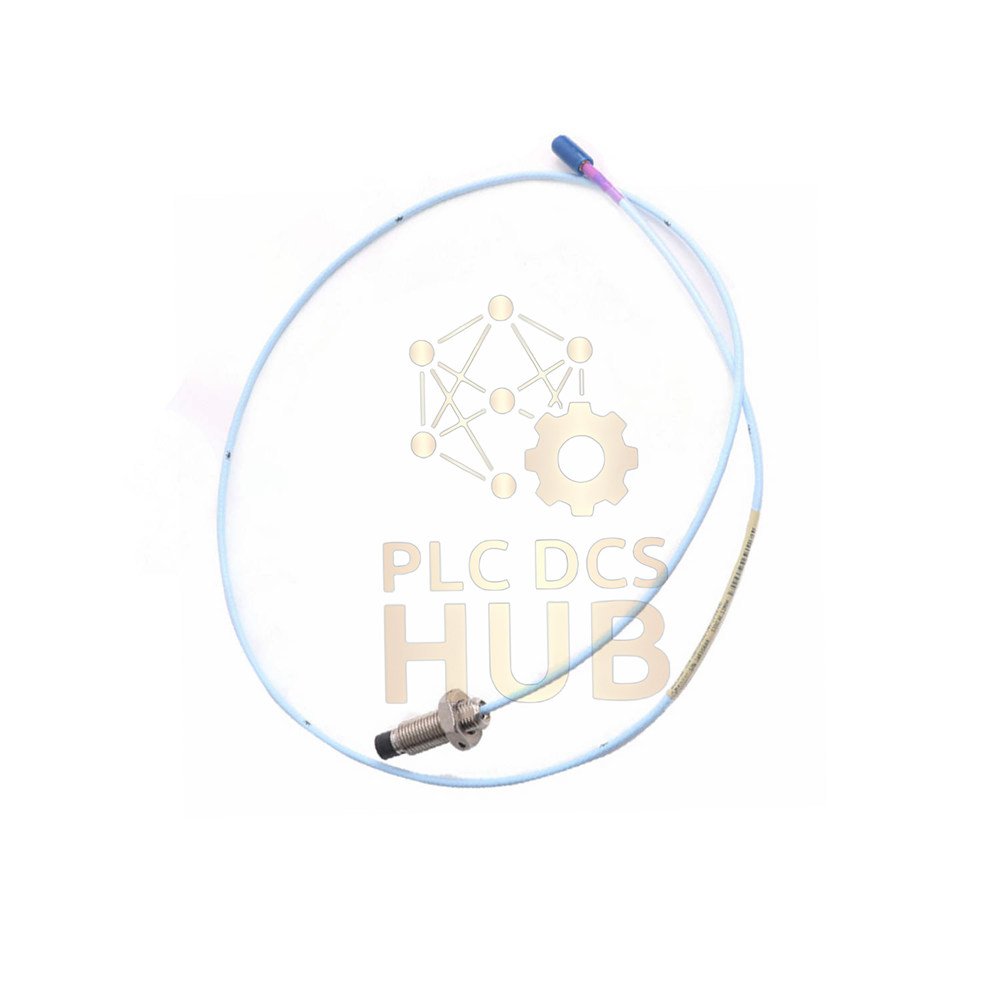

Get the genuine Bently Nevada 3300 XL 11 mm Proximity Probes. This model 330703-000-100-10-01-CN is perfect for industrial vibration monitoring. It is new and original with a full 12-month warranty. We ship fast worldwide via FedEx, UPS, or DHL.
Key Selling Points
- Precision Measurement: Ensures accurate machine health data.
- No-Armor Design: Standard M14 thread for versatile mounting.
- Long Case Length: 100mm overall length for deep installations.
- Wide Temperature Use: Reliable from -52°C to +177°C.
- Country-Specific Approval: CN option meets regional standards.
Technical Specifications Tree
- Brand: Bently Nevada
- Product Core: 330703 – 11mm Proximity Probe, M14 Thread, No Armor
- Option 000: Unthreaded Probe Length = 00 mm
- Option 100: Overall Case Length = 100 mm
- Option 10: Total Cable Length = 1.0 meter
- Option 01: Connector = Miniature Coaxial ClickLoc, Standard Cable
- Option CN: Agency Approval = Country Specific
- Electrical & Performance
- Probe DC Resistance: 5.9 ± 0.5 ohms
- Cable Type: 75 Ω Triaxial, FEP Insulated
- Magnetic Field Resistance: Very low output shift (e.g., 0.027 mil pp/gauss at 4.6mm gap).
- Physical Build
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Mounting Thread: M14 x 1.5
- Max Thread Engagement: 21 mm
- Installation Torque: Recommended 21.1 N•m, Maximum 63.3 N•m
- Environmental Ratings
- Operating/Storage Temperature: -52°C to +177°C
- Note: Avoid storage below -34°C to protect the seal.
- Temperature Classifications: T1 to T5 (EPL Ga/Gc), T90°C to T280°C (EPL Dc).
Installation & Compatibility
- Mounting: Use the M14x1.5 thread. Do not exceed 21mm engagement.
- Torque: Tighten to 21.1 N•m for a safe seal.
- Compatible Systems: Designed for Bently Nevada 3300 XL monitors.
- Typical Use: Monitor vibration on turbines, compressors, pumps, and fans.
What You Get & Support
- Package Includes: One 330703-000-100-10-01-CN probe in factory packaging.
- Warranty: Full 12-month manufacturer warranty.
- Shipping: Fast global delivery via FedEx, UPS, or DHL.
Professional FAQ
Product Configuration
- What does “CN” mean in the part number?
- It means this probe has country-specific agency approvals. Check with us for your region.
- Why choose the ‘000’ unthreaded length option?
- This is for applications where the probe mounts flush or uses a separate mounting bracket.
Application & Selection
- Is this probe good for high-temperature applications?
- Yes. It can operate up to +177°C. For the best life, keep it within the rated range.
- What is the main difference between armored and non-armored probes?
- Armored probes have a protective metal braid over the cable near the case. This model (330703) does not, making it more flexible for routing.
Ordering & Service
- Do you offer technical support after purchase?
- Yes. For application help, contact our engineers on WhatsApp at +86 158 8020 0923.
