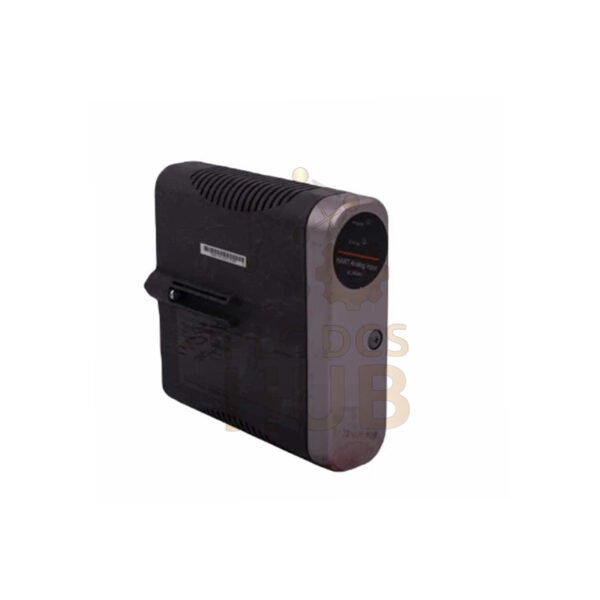

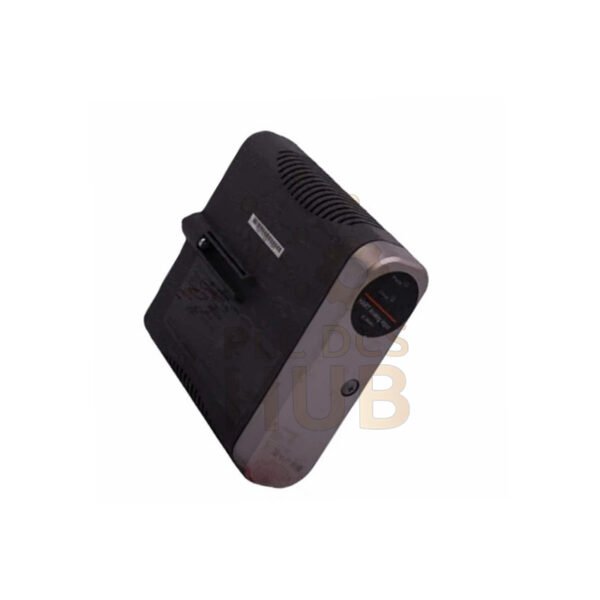

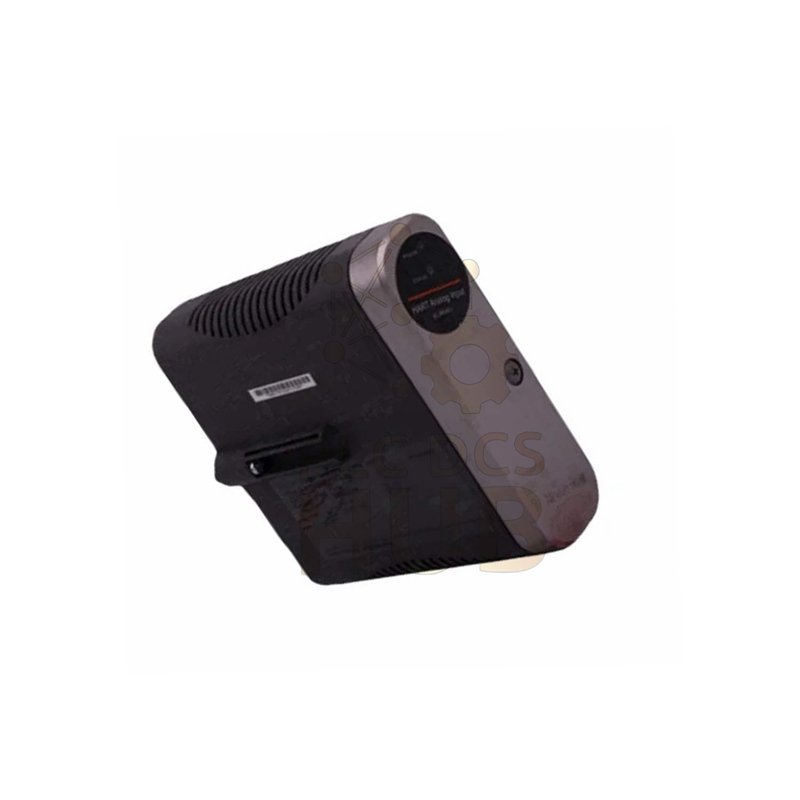

Honeywell 51454362-175 8C-IP0101 Series Digital Input Module for PLC

Description

Overview

• Honeywell 8C-IP0101 is a reliable digital input solution.
• Part number 51454362-175 supports stable field signal capture.
• The module is built for industrial control systems.
• It handles fast signal changes with high accuracy.

Key Selling Points

• 16 isolated input channels in one compact unit.
• Fast reaction improves control response.
• Strong electrical isolation protects controllers.
• Low power use reduces cabinet heat.
• Designed for long-term field operation.

Electrical & Signal Data

• Input type: Digital DC
• Number of points: 16
• Input voltage range: 18 to 32 V DC
• Nominal signal level: 24 V DC
• Input impedance: 4.7 kΩ
• Minimum ON voltage: 18 V DC
• Maximum OFF voltage: 5 V DC
• Response delay: less than 5 ms

Protection & Stability

• Isolation strength: 2500 V DC
• Resistant to electrical noise.
• Stable input reading under load changes.
• Designed for harsh plant conditions.

Power & Efficiency

• Internal power use: 1.2 W
• Low current draw supports dense racks.
• Efficient design improves system uptime.

Environmental Limits

• Operating temperature: -20°C to 60°C
• Storage temperature: -40°C to 85°C
• Humidity tolerance: 5% to 95%, non-condensing
• Suitable for indoor industrial cabinets.

Mechanical Information

• Width: 110 mm
• Height: 75 mm
• Depth: 35 mm
• Net weight: 250 g

Installation Notes

• Mount in a secure I/O rack.
• Ensure correct polarity before wiring.
• Use shielded cables in noisy areas.
• Label channels during commissioning.

Maintenance & Diagnostics

• No calibration required.
• Stable design minimizes false signals.
• Faults are easy to trace by channel.
• Module replacement is fast.

Typical Applications

• PLC input signal collection.
• Process automation systems.
• Discrete sensor monitoring.
• Oil, gas, and chemical plants.
• Manufacturing production lines.

Warranty & Shipping

• 12-month warranty from delivery date.
• Carefully packed for transport.
• Shipped via FedEx, UPS, or DHL.

Professional FAQ

• Is this module suitable for noisy field signals?
• Yes. High isolation and impedance reduce noise impact.
• Can it read fast switching sensors?
• Yes. The short response time supports quick inputs.
• What is the best voltage for stable input?
• Use 24 V DC for best signal reliability.
• Does cabinet temperature affect accuracy?
• Performance stays stable within rated limits.
• How do I choose the right digital input module?
• Check voltage range, channel count, and isolation level.
