Description
Overview

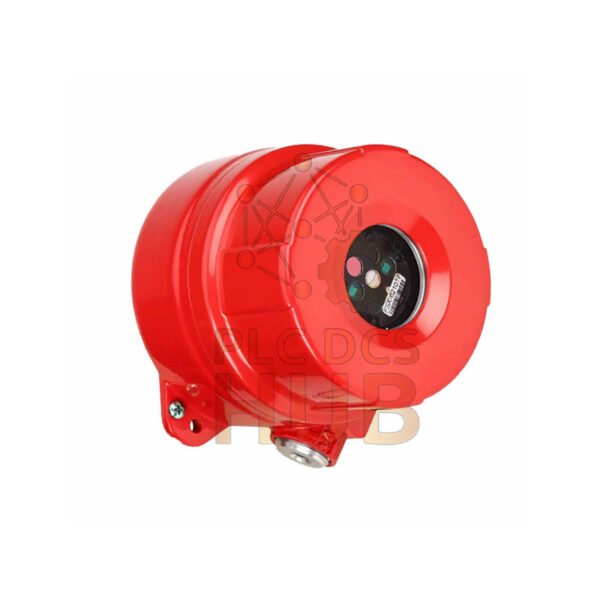

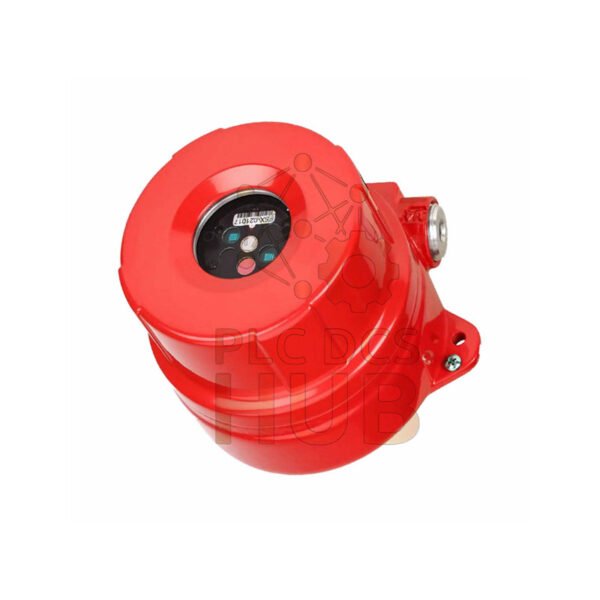

PLCDCS HUB introduces the FS24X-911-21-1 from Honeywell, built for fast and stable flame detection in industrial sites.
Main Features
- The Honeywell FS24X series detects flames with fast 2–5 second response time.
- FS24X-911-21-1 operates on 18–32 VDC and delivers clear 0–20 mA status outputs.
- The device supports relays, 4–20 mA, and Modbus for flexible system wiring.
Technical Specs
- Brand: Honeywell; Model: FS24X-911-21-1; Series: FS24X.
- Field of view reaches 90° (H) × 80° (V) for wide area coverage.
- Spectral range spans 0.4–5.0 microns for broad fire detection capability.
- Analog states: Fault 0 mA, Dirty Lens 2 mA, Normal 4 mA, Alarm 20 mA.
- Relay rating: 1A @ 24 VDC resistive.
Environmental & Mechanical
- IP66/NEMA4X enclosure resists dust and water for harsh environments.
- Aluminum body weighs 1.7 kg; stainless steel option increases weight.
- Temperature range runs from -40°C to +85°C for reliable outdoor operation.
Installation Guide
- Mount with 1/4 in holes spaced 5.50 in center-to-center.
- Use stranded wires (12–22 AWG) for stable electrical connections.
- Point the detector toward the target zone to cover the full FOV.
Packaging List
- One Honeywell FS24X-911-21-1 detector in sealed factory packaging.
- Mounting screws and quick installation guide.
- Shipping via DHL, UPS, or FedEx with tracking.
FAQ
- How often should I clean or test the detector?
Clean and test monthly to keep response times stable. - Where should I place the detector?
Choose a location with a clear line of sight to the hazard area. - What wiring practices help ensure stable signals?
Use stranded conductors and keep cable runs tidy and protected.
