Description
Overview

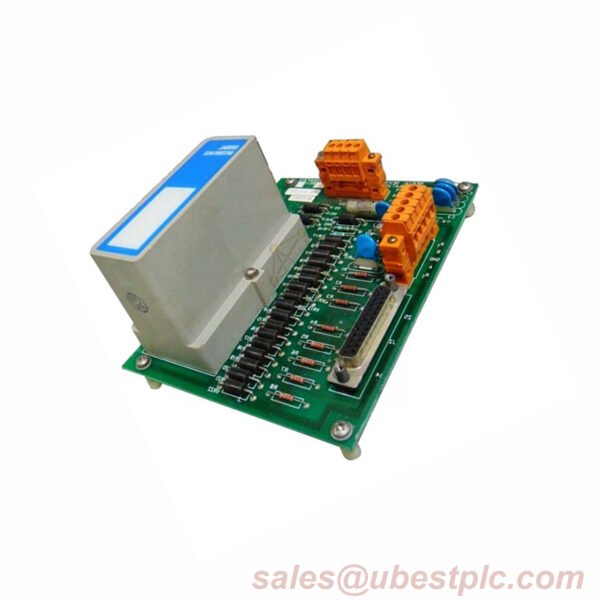

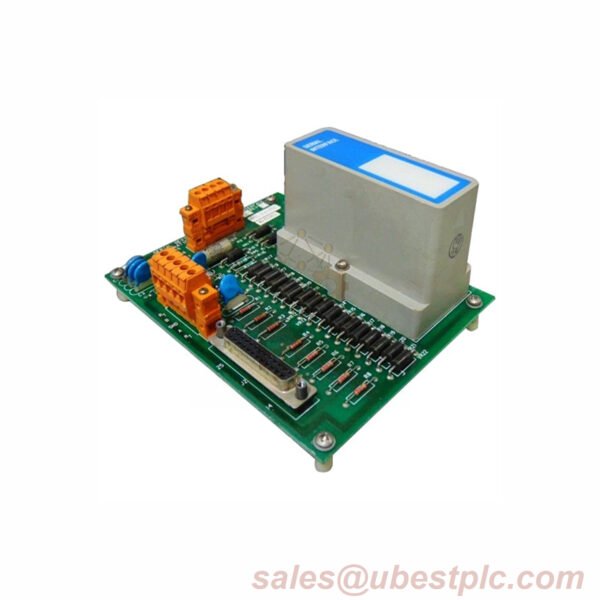

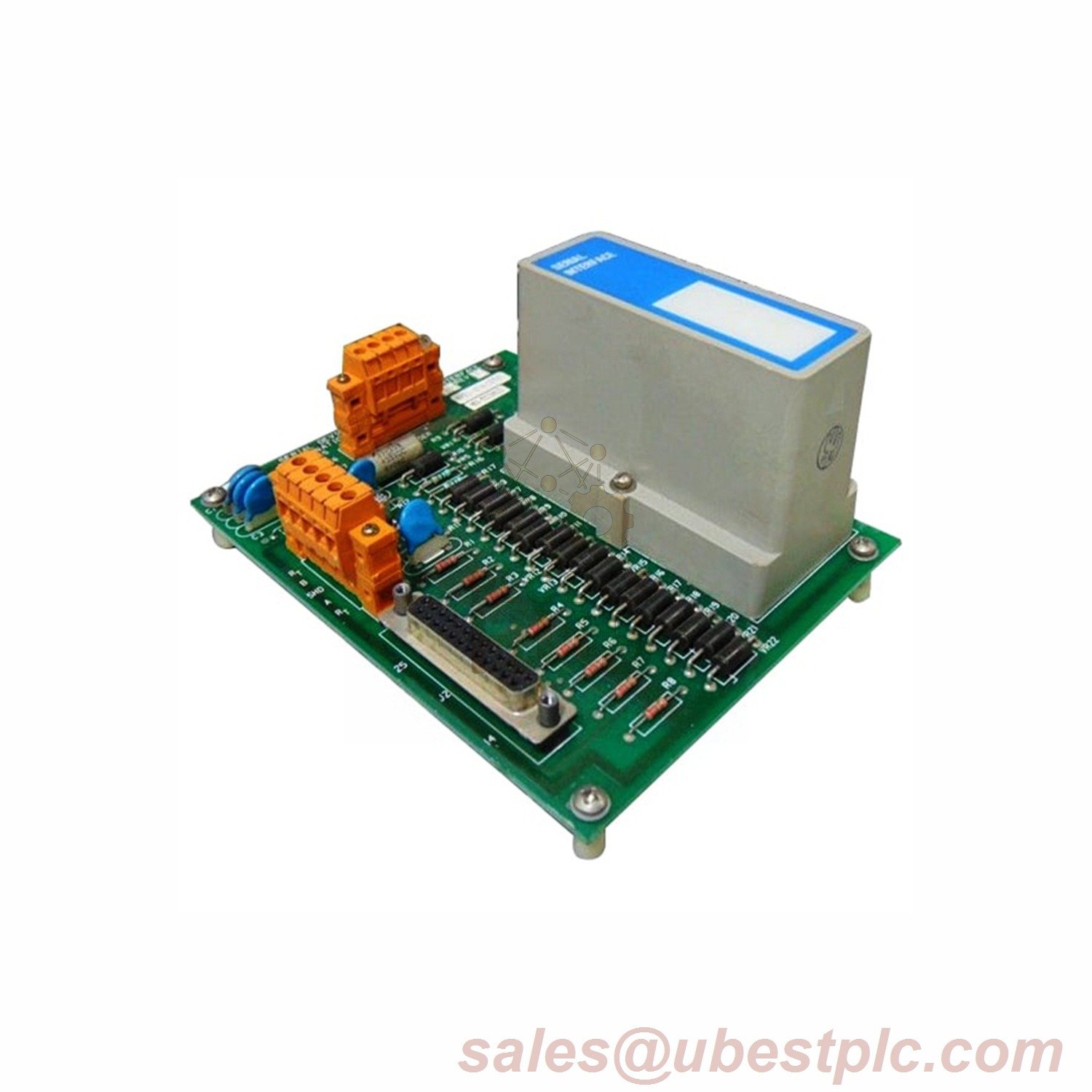

The Honeywell MC-TSIA12 (51303932-478) is a reliable and versatile serial communication module designed for industrial automation. Ideal for use in demanding environments, this module ensures high-performance data transmission across a wide range of applications. Its robust construction allows it to operate efficiently in temperatures as low as -40°C and up to 70°C, ensuring longevity and stability in challenging conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Honeywell |
| Model Number | MC-TSIA12 (51303932-478) |
| Channels per IOP | 2 |
| Max Distance | 300 meters |
| Baud Rate | 19.2 kbps |
| Data Format | 8 data bits + parity |
| Common Mode Voltage | 250 V rms (continuous) |
| Power Dissipation | Max 1.4 watts |
| Operating Temp. Range | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Connector Type | DB9 or equivalent |
| Isolation Voltage | 1500 V rms |
The MC-TSIA12 module is built with a strong focus on quality and reliability, making it perfect for industries where consistent data transfer is critical. It operates in a variety of environments, offering flexibility and adaptability.
