I/O Link Module IC693BEM320 GE Fanuc Series 90-30

Description

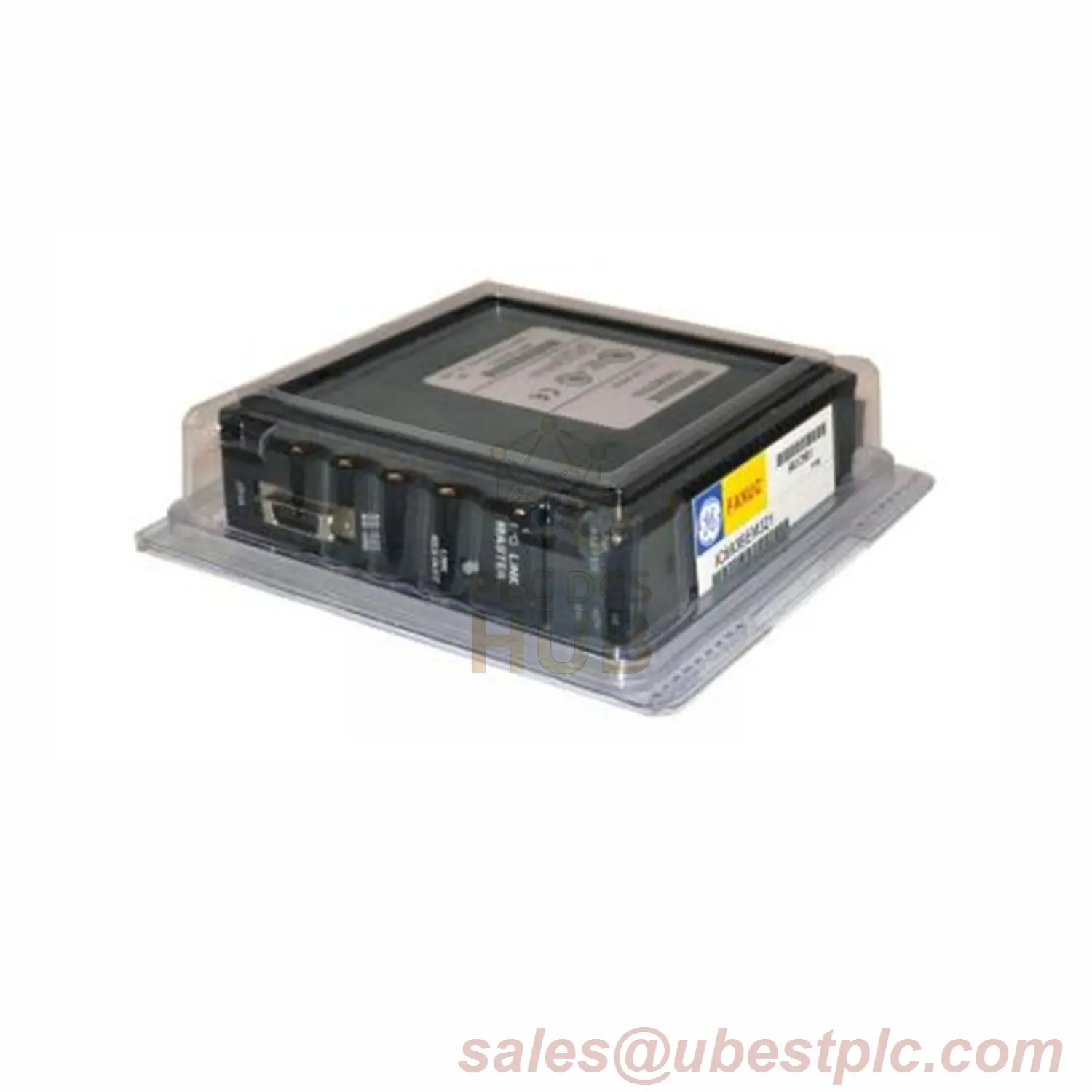

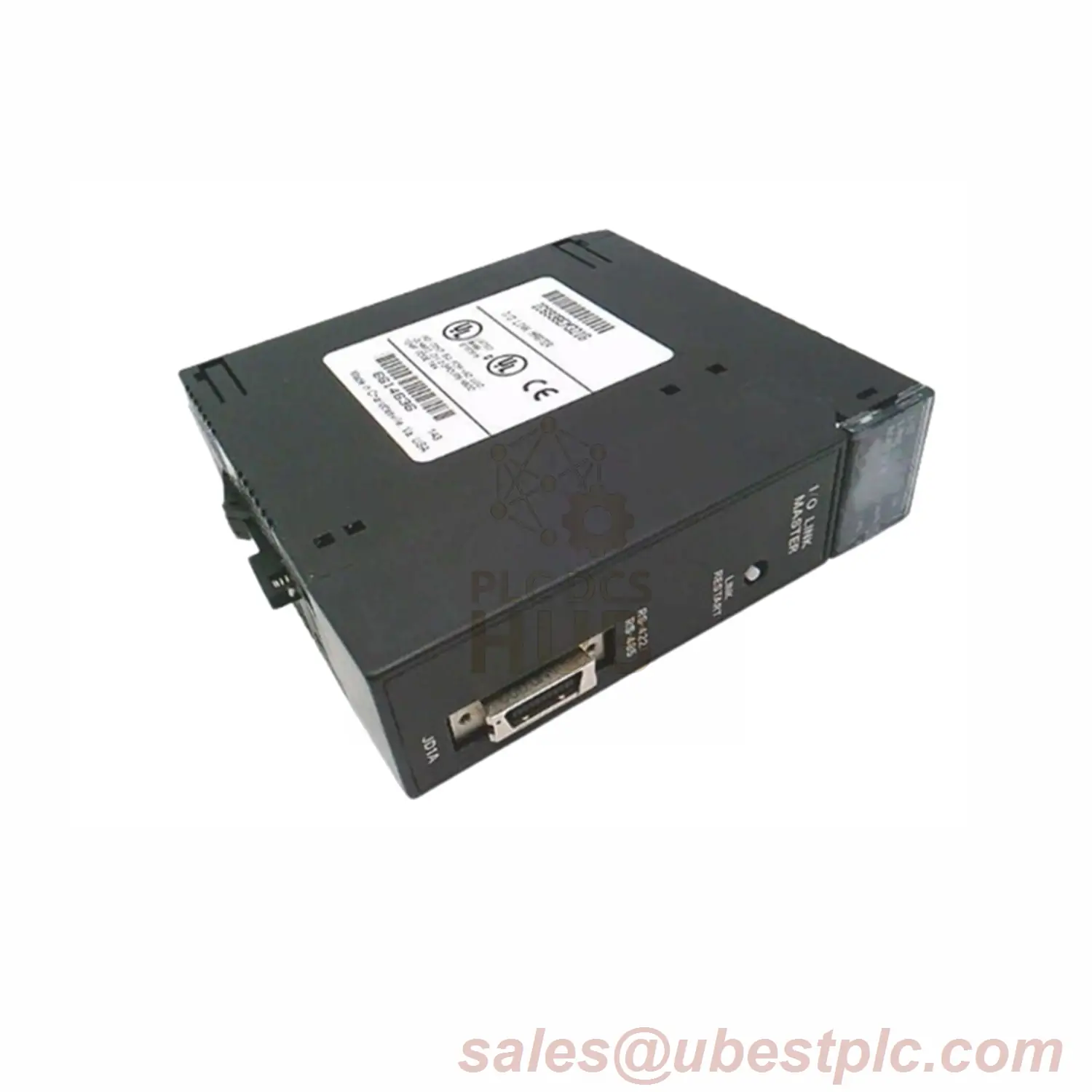

GE Fanuc IC693BEM320 I/O Link Module

Serial interface for Series 90-30/90-70 PLCs. Connects up to 64 I/O points using GE Fanuc’s I/O Link network. Installs directly into PLC backplane as slave device. Features jumper-selectable configuration and dual serial ports.

Technical Specifications

• Brand: GE Fanuc
• Model: IC693BEM320 (Full suffix: IC693BEM320)
• Series: 90-30/90-70 PLC
• Type: I/O Link Module
• I/O Points: 32 or 64 (jumper-selectable)
• Ports: 2 (RS-485 + RS-422)
• Temp Range: 0°C to 60°C (32°F to 140°F)
• Humidity: 5% to 95% Non-Condensing
• Power: 5VDC from backplane

Installation Guide

Slide into any Series 90-30/90-70 backplane slot. Set configuration jumper under front cover. Requires qualified technician. Maintain operating temperature with climate control if needed.

Compatibility

Works with Series 90-30 and 90-70 PLCs. Supports up to 16 slave modules per master PLC.

Certifications & Packaging

• Package Includes: IC693BEM320 Module
• Warranty: 12 Months

Shipping Options

Fast worldwide delivery: FedEx, UPS, DHL

FAQ

Q: How many I/O points supported?
A: Configurable for 32 or 64 points via jumper.

Q: Master or slave module?
A: Slave device only in I/O Link networks.

Q: Maximum modules per system?
A: Up to 16 modules per master PLC.

Q: Operating temperature limits?
A: 0°C to 60°C (32°F to 140°F)
