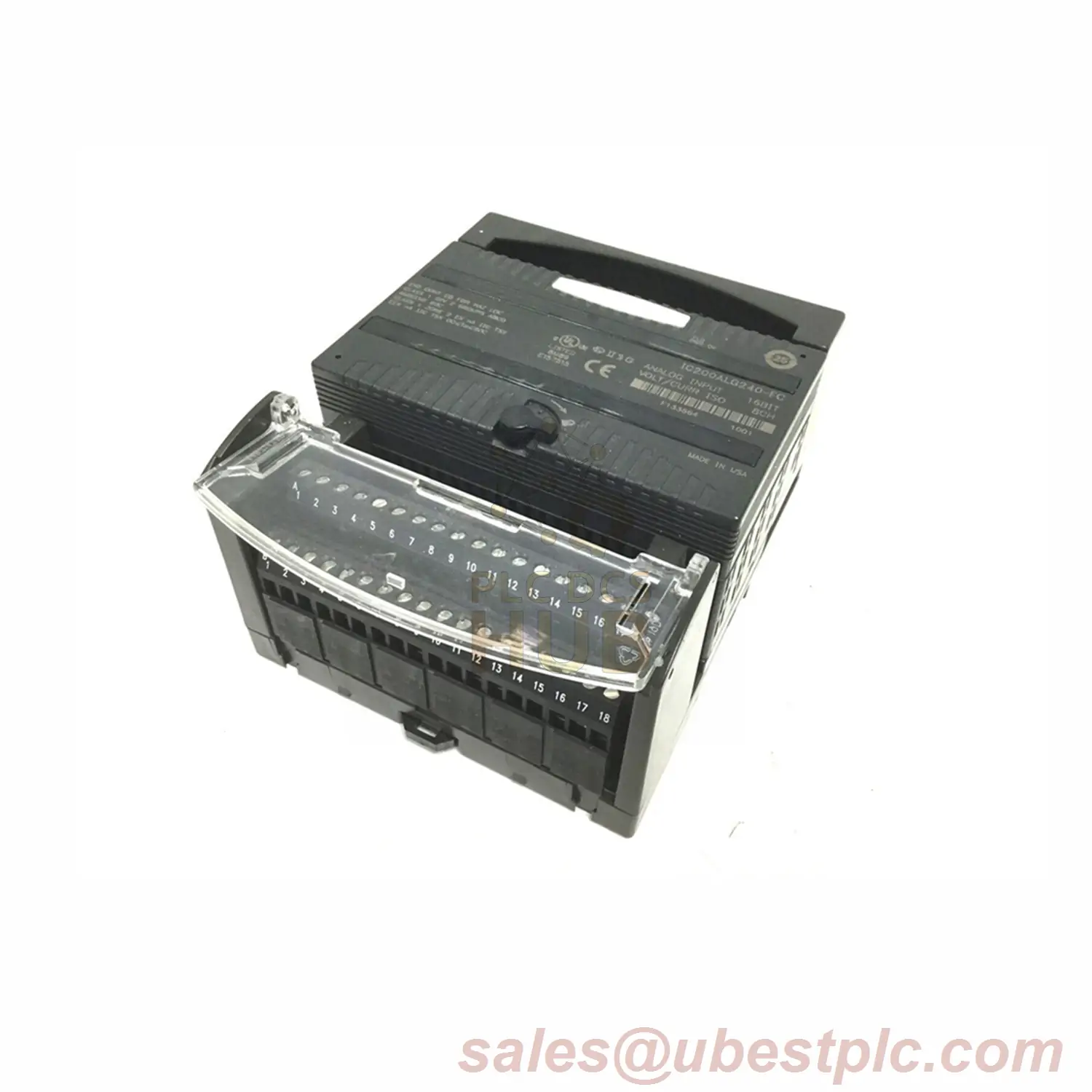

IC200ALG327 Analog Output Module: Precision 8-Channel Control
Description
GE Fanuc’s IC200ALG327 analog output module delivers flexible signal control for industrial systems. Features 8 single-ended channels with 13-bit resolution and dual-range output (-10V to +10V or 4-20mA). Operates at 15ms update speed with self-diagnostics. Backplane-powered design simplifies installation.
Technical Data
| Brand | GE Fanuc |
| Model | IC200ALG327 (Full Suffix: IC200ALG327) |
| Output Range | -10V to +10V DC / 0-10V DC 4-20mA (default) or 0-20mA (jumper-configurable) |
| Channels | 8 single-ended |
| Resolution | 13 bits |
| Update Rate | 15 ms maximum |
| Isolation | 250V AC continuous (output-logic) 1500V AC for 1 min (output-ground) |
| Load Capacity | 5000 Ω minimum |
| Backplane Power | 5V DC @ 50mA max |
| Field Power | 18-30V DC |
Installation Guide
- Mounts in Versamax carriers.
- Requires shielded twisted-pair cables for noise immunity.
- Use jumper to switch current ranges (4-20mA/0-20mA).
- External 18-30V DC power needed for field outputs.
Compatibility
Works with GE Fanuc Versamax PLC systems. Not compatible with RX3i or 90-30 series.
Packaging
- 1 x IC200ALG327 module
- 12-month warranty
Shipping
Worldwide via FedEx, UPS, DHL. Express options available.
FAQ
Q: Can it drive valves directly?
A: Yes, supports 4-20mA valve control signals.
Q: Is jumper configuration per-channel?
A: No, global setting for all current outputs.
Q: RF interference protection?
A: Use shielded cables; derate accuracy in high-RF areas.
Q: LED indicators meaning?
A: Green: Backplane power OK. Amber: Module communication active.
