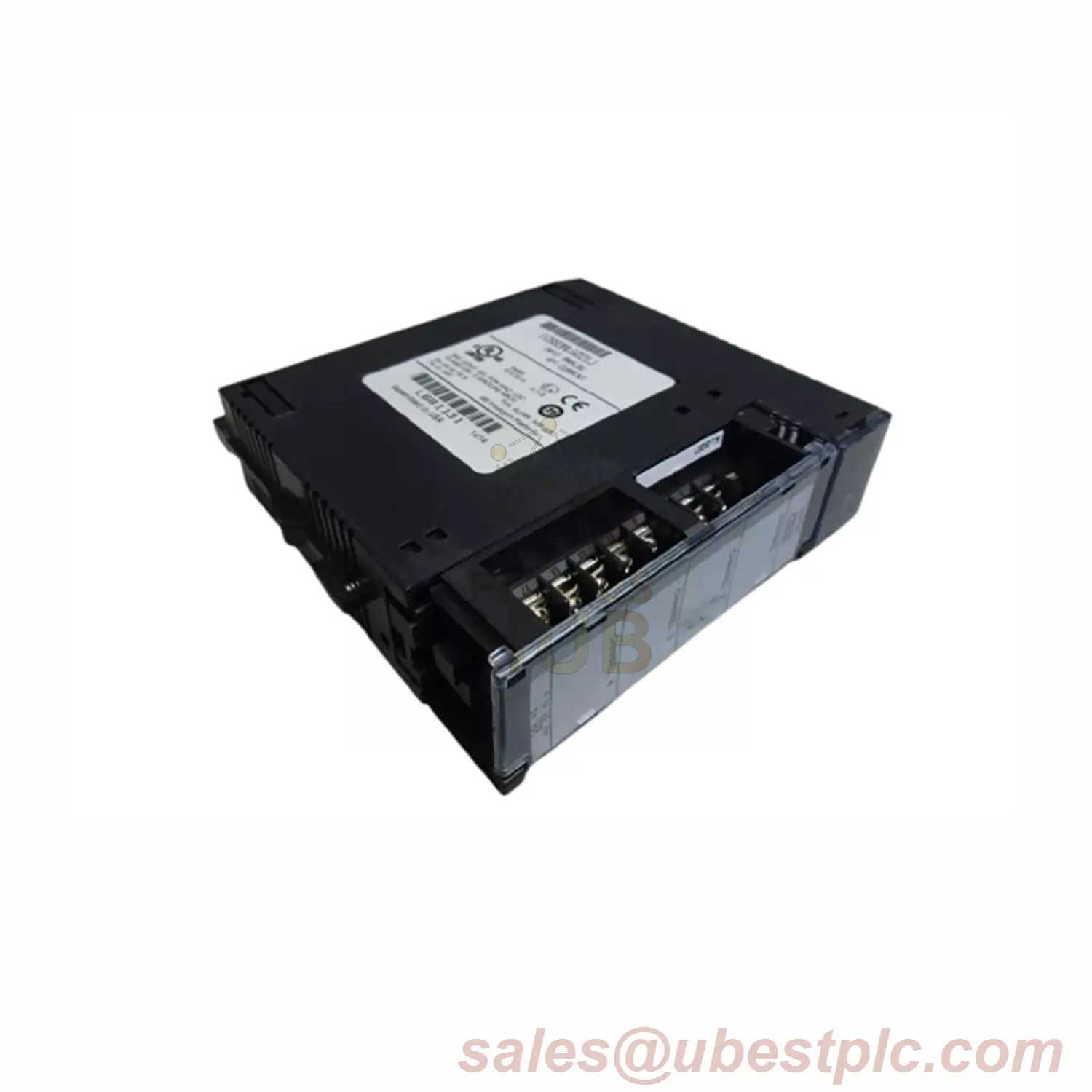

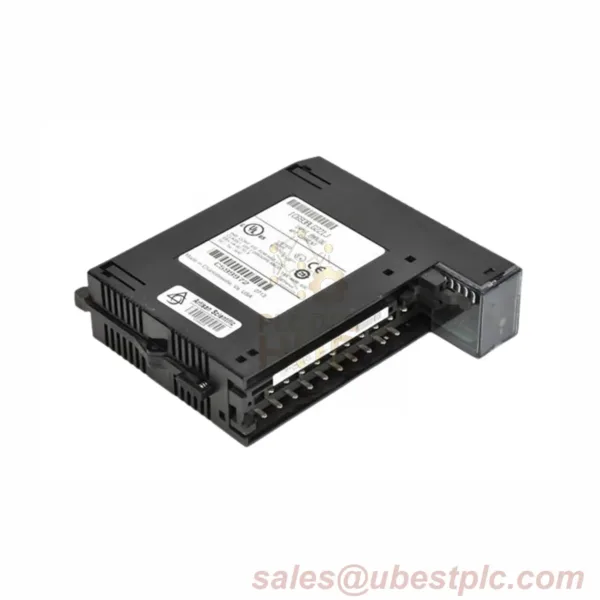

IC693ALG222 Analog Voltage Input Module
DESCRIPTION
GE Fanuc’s IC693ALG222 offers 16-channel analog input for Series 90-30 PLCs. Handles ±10V bipolar and 0-10V unipolar signals. Features 1500V isolation and dual-status LEDs. Fits 5-slot/12-slot baseplates.
TECHNICAL DATA
| Brand | GE Fanuc |
| Model | IC693ALG222 |
| Series | Series 90-30 |
| Channels | 16 single-ended (8 differential) |
| Voltage Range | -10 to +10V (bipolar) 0 to 10V (unipolar) |
| Resolution | 5mV (bipolar) 2.5mV (unipolar) |
| Update Rate | 13ms (all channels) |
INSTALLATION GUIDE
- Install in any slot of 5/12-slot baseplate
- Max 4 modules with CPUs 311/313/323
- Connect to +5V DC (112mA) and +24V DC (41mA)
- Use shielded cables for noise protection
DIAGNOSTICS & MAINTENANCE
- Monitor dual LEDs: “Module OK” and “Power Supply OK”
- Check accuracy quarterly: ±0.25% @25°C
- Verify input filter response: 41Hz (single)
- Calibrate annually for optimal performance
PACKAGING LIST
- IC693ALG222 Analog Module
- Installation documentation
- Mounting hardware
SHIPPING METHODS
Priority global delivery via FedEx, UPS, DHL
FAQ
Q: Can channels be individually configured?
A: Yes. Each supports bipolar or unipolar operation.
Q: What’s the maximum system capacity?
A: Up to 51 modules with CPUs 350-364 (including remote I/O)
Q: How to verify module health?
A: Check the two green status LEDs for power and operation.
