Description

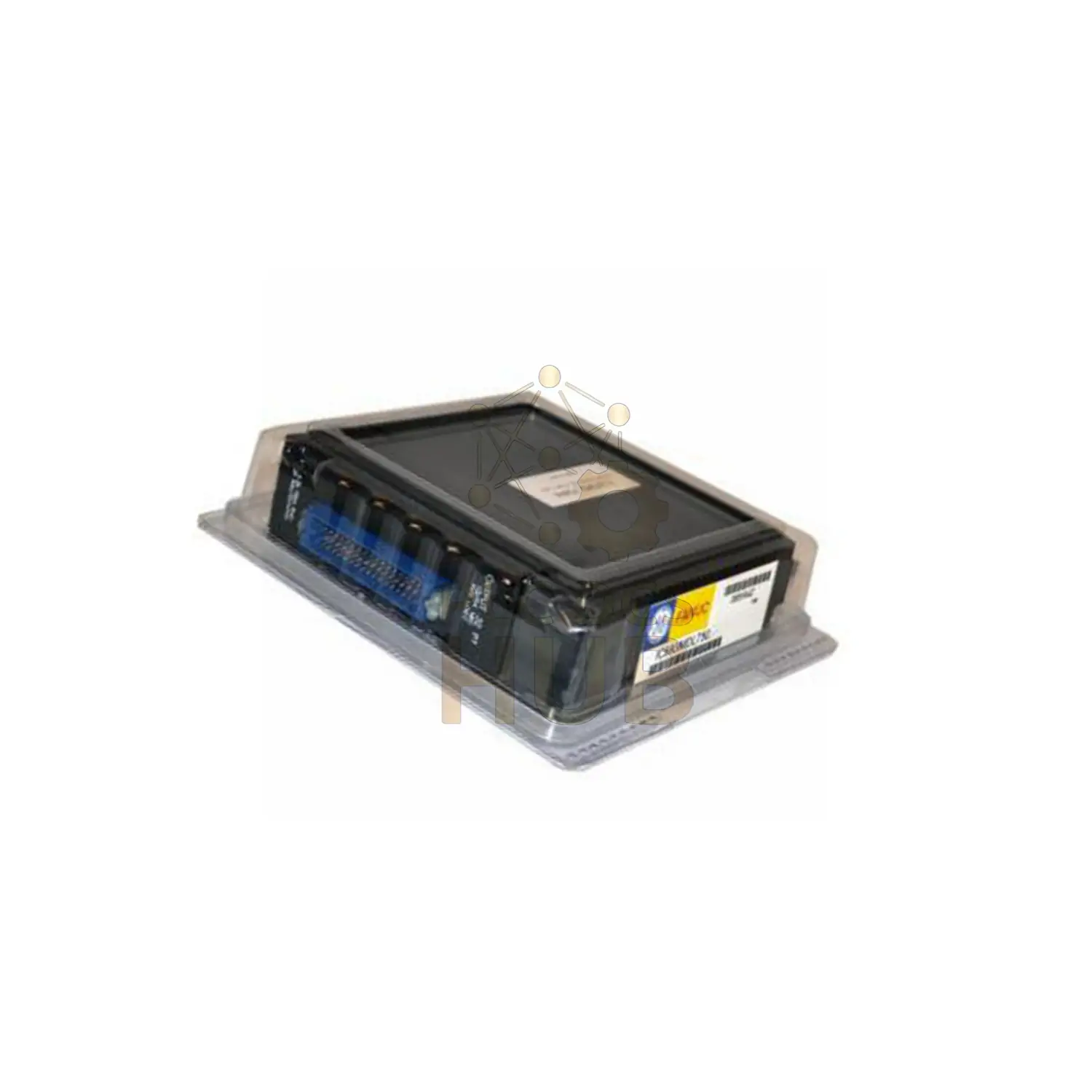

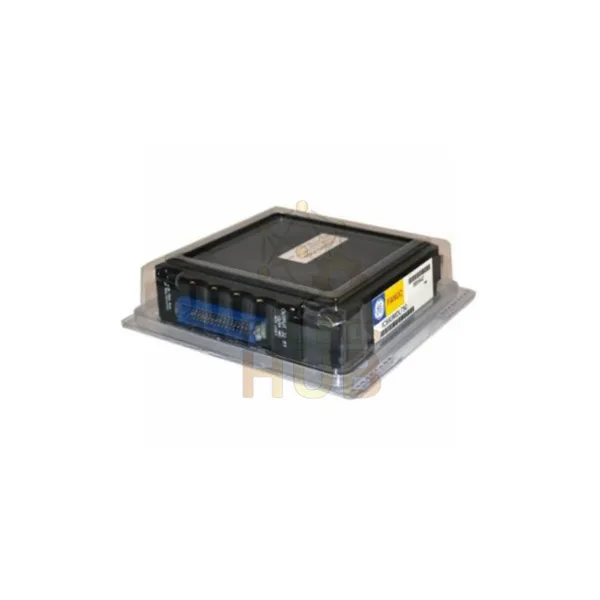

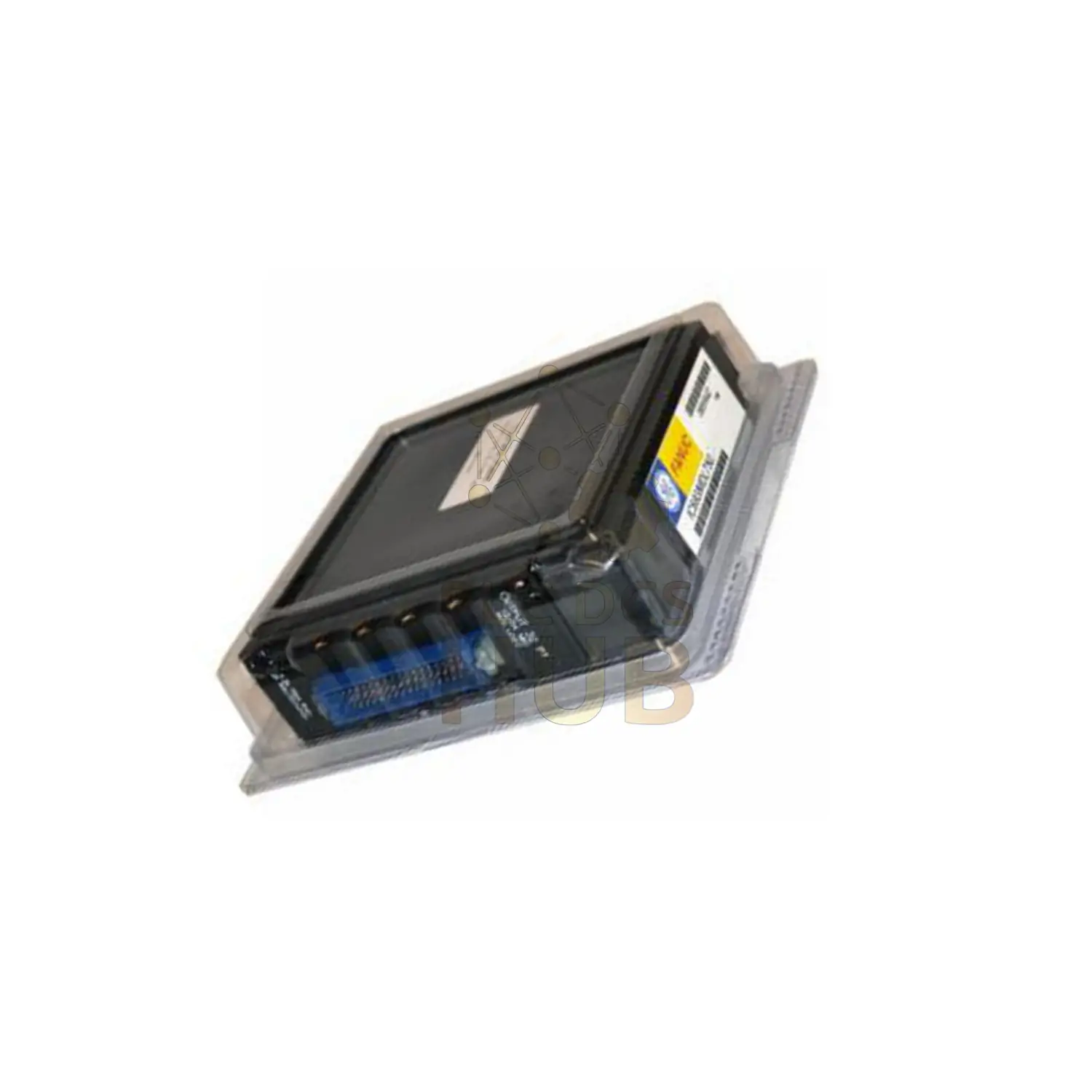

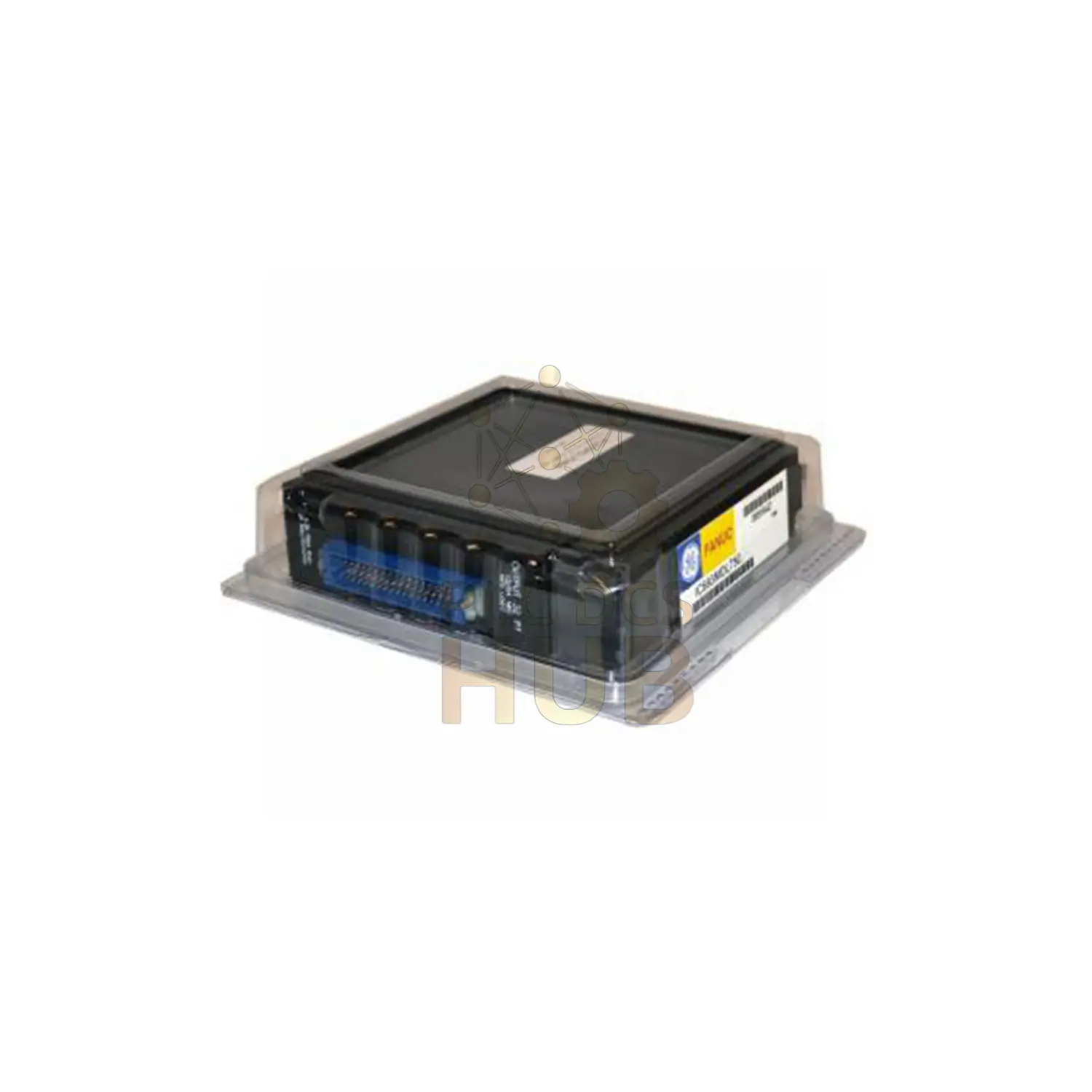

GE Fanuc IC693MDL751 PLC Output Module: Legacy Reliability for Industrial Control
Core Features
- High-Density Output: 32 DC points (4 groups x 8)
- Voltage Range: 12-24VDC ±20%
- Isolation Strength: 1500V logic/field separation
- Compact Design: Fits 90-30 series 5/10-slot racks
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Current (Per Point) | 0.3A Peak |
| Common Current | 2.0A Max/Group |
| Leakage Current | <0.1mA @ Off State |
| Voltage Drop | 0.24VDC Typical |
| Power Consumption | 21mA (All Outputs ON) |
| Response Time | 1ms ON/OFF |
Installation Guide
- Connector: 50-pin Honda (MS-50F)
- Wiring Options:
– Direct 50-pin cable (3ft/6ft available)
– DIN-rail terminal blocks recommended - Isolation: Maintain 1500V separation from AC circuits
Compatibility Notice
- Works with 90-30 CPUs (IC693CPUxxx)
- Requires 5/10-slot rack (IC693CHSxxx)
- Not compatible with RX3i platforms
FAQ
Q: Can interface with modern HMIs?
A: Yes – through 90-30 PLC’s communication ports
Q: Surge protection required?
A: Recommended for inductive loads (e.g., solenoid coils)
Q: Replacement terminal blocks available?
A: Use IC693TBS300 (3ft) or IC693TBS600 (6ft)
Package Contents
- 1x IC693MDL751 Module
- 50-pin connector (pre-installed)
