Analog Input Module – Fast & Precise

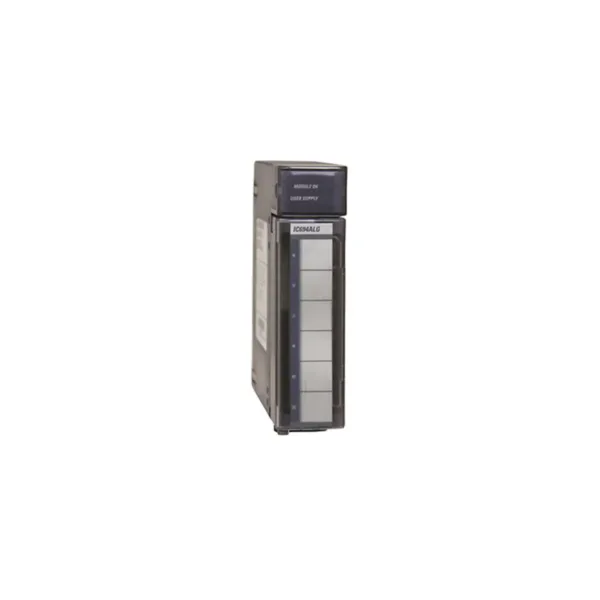

The IC694ALG220 by Emerson Automation (ex-GE) captures 4 analog signals at 1ms speed. Ideal for real-time monitoring in RX3i systems.
Key Features
- ✅ 4 Input Channels (1ms conversion each)
- ✅ Wide Voltage Range: -10V to +10V
- ✅ 4-20mA Current Support
- ✅ Low Power: 27mA @ 5V DC
- ✅ 12-month warranty
Technical Specs
- Brand: Emerson
- Model: IC694ALG220
- Inputs: 4 channels
- Voltage Range: -10V to +10V
- Current Range: 4-20mA
- Update Rate: 4ms per channel
- Shipping: FedEx, UPS, DHL
Installation Guide
- Power off the RX3i system.
- Install module in any I/O slot.
- Connect 24V DC power via TB1 connector.
Compatibility
- All RX3i CPUs
- Universal/Expansion/Remote backplanes
- 24V DC isolated power supply
Real Use Case
A water treatment plant monitored pH and pressure sensors with IC694ALG220, achieving 99.9% data accuracy.
FAQ
Q: Can it be hot-swapped?
No – always power off first.
Q: Max wire length?
Follow 24V DC isolation guidelines.
