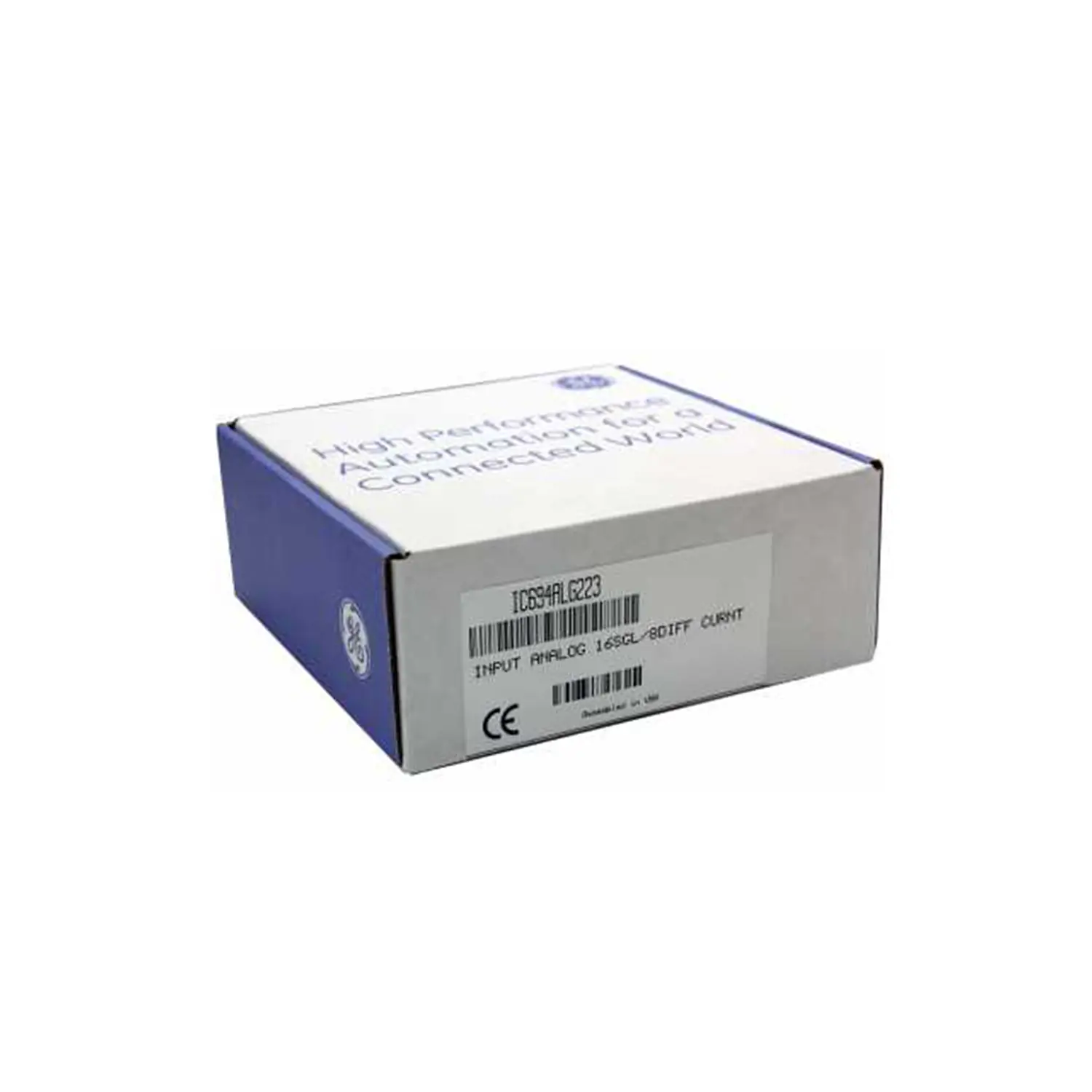

IC694ALG223 GE Fanuc RX3i Analog Input Module PACSystems RX3i

16-Channel Current Input Module – High-Density

The IC694ALG223 by Emerson Automation (ex-GE) handles 16 current inputs at 13ms speed. Ideal for multi-sensor industrial setups.

Key Features

• ✅ 16 Inputs (0-20mA / 4-20mA)
• ✅ Open-Wire Detection (4-20mA Enhanced)
• ✅ High Resolution: 4-5µA/bit
• ✅ Alarm Thresholds configurable via software
• ✅ 12-month warranty

Technical Specs

• Brand: Emerson
• Model: IC694ALG223
• Input Ranges: 0-20mA, 4-20mA (Normal/Enhanced)
• Resolution: 4µA (4-20mA) / 5µA (0-20mA)
• Speed: 13ms per channel
• Power: 5V (120mA) / 24V (65mA)
• Shipping: FedEx, UPS, DHL

How It Compares

• vs IC694ALG220:
  • ALG220: 4 current inputs, 4ms speed
  • ALG223: 16 current inputs, 13ms speed
• vs IC694ALG221:
  • ALG221: 4 voltage inputs (±10V)
  • ALG223: 16 current inputs
• vs IC694ALG222:
  • ALG222: 16 voltage inputs (differential/single-ended)
  • ALG223: 16 current inputs

FAQ

Q: What’s “Enhanced” 4-20mA mode?
Detects open wires (0mA) for critical alarms.

Q: Max sensors per module?
16 – ideal for large-scale setups.
