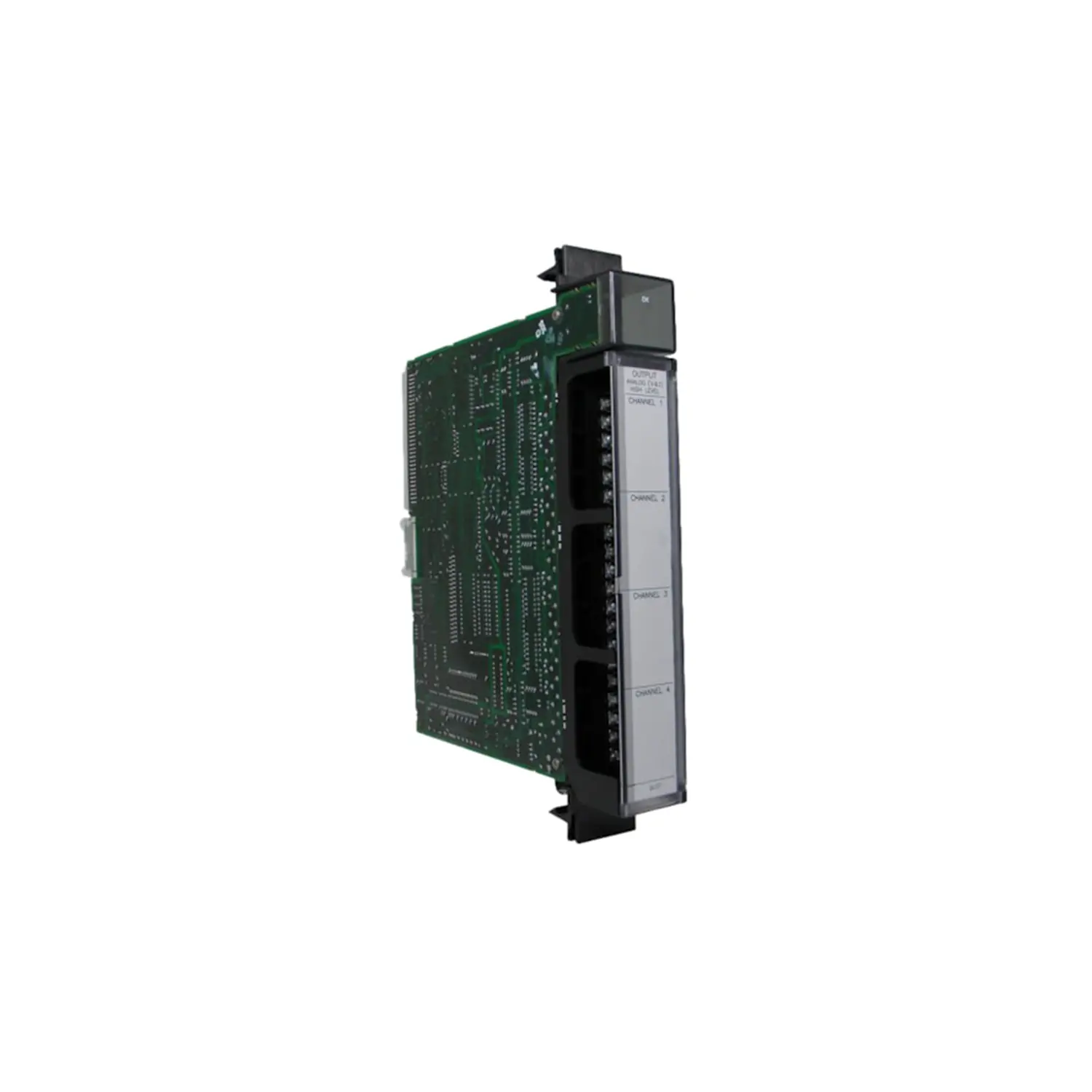

GE Fanuc IC697ALG320 Analog Output Module – Precision Industrial Control
⚡ Core Specifications
Brand: GE Fanuc/Emerson
Model: IC697ALG320
Outputs: 4 channels (expandable to 252)
Resolution: 16-bit (14-bit monotonic)
Speed: 2ms conversion rate
???? Technical Highlights
• Dual-mode output: ±10VDC or 0-22.2mA
• ±2.5mV voltage accuracy
• 700Ω max current load
• 25ppm/°C thermal stability
• CE/ATEX/IECEx certified
???? Industry Applications
Chemical Plants: Controls precision valve actuators
Food Processing: Manages mixer speed/pressure
Power Generation: Adjusts turbine governor systems
???? Installation Guide
1. Mount in Series 90-70 rack
2. Connect 24VDC external power
3. Wire outputs via 16AWG cables
4. Configure via Windows software
5. Verify green diagnostic LEDs
⚠️ Critical Notes
• Max 7 modules per CPU rack
• Discontinued – limited stock available
• -10°C to +60°C operation only
• Replace every 5-7 years
• Use EMI-shielded cabling
???? Global Shipping
FedEx Industrial: 3-5 work days
DHL Express: 2-4 work days
UPS Worldwide: 4-7 work days
???? Warranty & Support
12-month legacy warranty
Extended technical support contracts available
