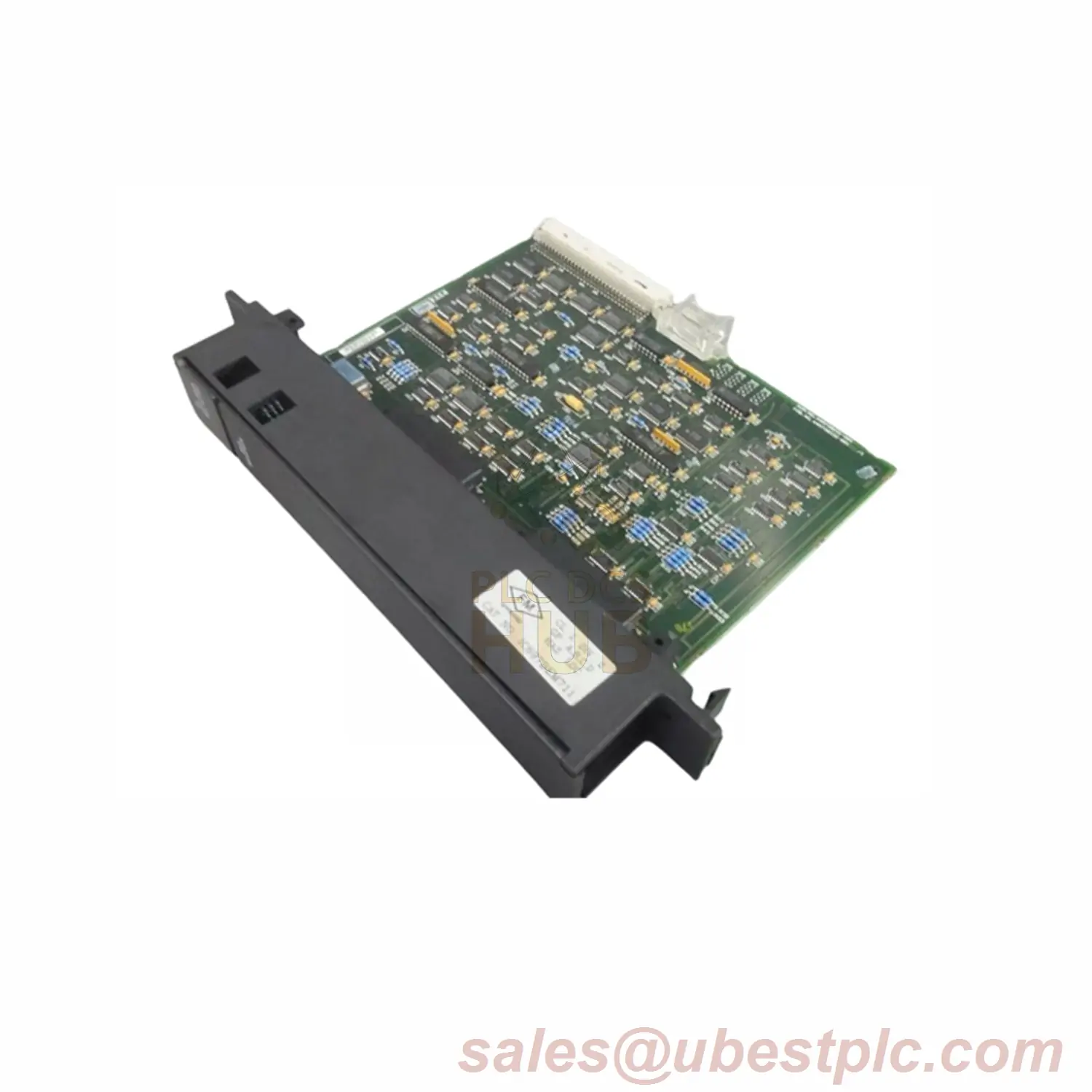

GE Fanuc IC697BEM761 I/O Interface Module: High-Density PLC Expansion
Product Overview
Expand your IC600 PLC system with this industrial-grade interface module. Handles 2000+ I/O points across 8 racks using 37-pin connectors. Built-in termination resistors ensure stable communication.
Key Specifications
| Manufacturer | GE Fanuc |
| Model Code | IC697BEM761 |
| Series Family | Series 90-70 |
| Backplane Power | 1.3A @ 5V DC |
| Max Expansion | 8 racks |
| Per-Rack Capacity | 256 I/O |
| Connector Type | Dual 37-pin |
Mounting Instructions
- Install in IC697 control rack
- Lower connector: Upstream cable
- Upper connector: Downstream cable
- Set rack numbers via backplane jumpers
Diagnostic Features
- RACK LED: Rack faults
- MODULE LED: Interface errors
- I/O CHAIN LED: Bus failures
Package Includes
- IC697BEM761 Module
- Termination Resistors
Delivery Options
FedEx | UPS | DHL | Express Shipping
Common Questions
Q: Maximum I/O capacity?
A: 2000 inputs + 2000 outputs
Q: Rack addressing method?
A: Configure via backplane jumpers
Q: Compatible CPUs?
A: IC600 series controllers
Q: Operating humidity range?
A: 5% to 95% non-condensing
