Description
Overview

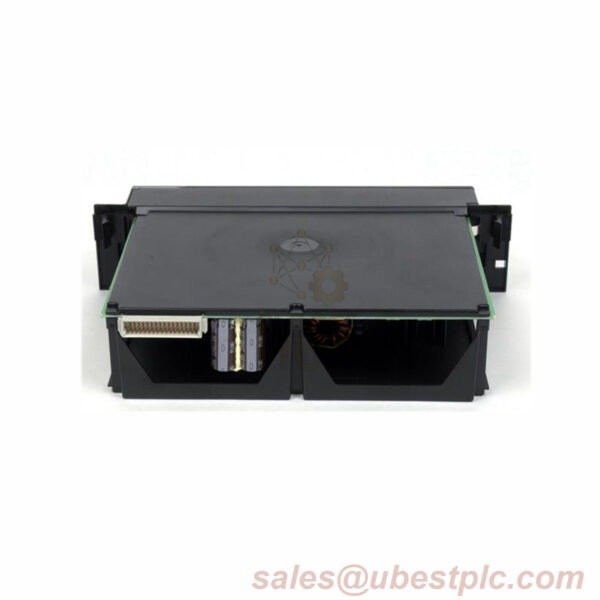

The IC697PWR710/712 Power Supply Module is a reliable and efficient solution designed to provide stable power to your industrial systems. It can operate from both 120/240 VAC and 125 VDC inputs, making it versatile for various applications. Its rugged slide-in rack mount construction ensures easy installation and maintenance, while its electronic short circuit and overcurrent protection safeguard against power issues. This power supply module is perfect for applications requiring power factor correction and is compatible with VME standards.
Technical Data
| Brand | GE Fanuc |
|---|---|
| Model | IC697PWR710/712 |
| Power Output | 56W Maximum |
| Nominal Voltage | 120/240 VAC or 125 VDC |
| Input Voltage Range | 90 to 264 VAC, 47 to 63 Hz (AC), 100 to 150 VDC (DC) |
| Output Voltage | +5 VDC: 4.90 to 5.25 volts (5.1 volts nominal) |
| Current Output | Up to 11 Amps (5V) |
| Overcurrent Protection | Electronic, 12 Amps typical |
| Ride Through Time | Minimum 21 ms from loss of AC input |
| Power Factor | > 0.95 |
| Overvoltage Protection | 6.2 volts typical |
| Inrush Current | 3 Amps (typical) |
| Power Supply | 90W Maximum at Full Load |
