Description

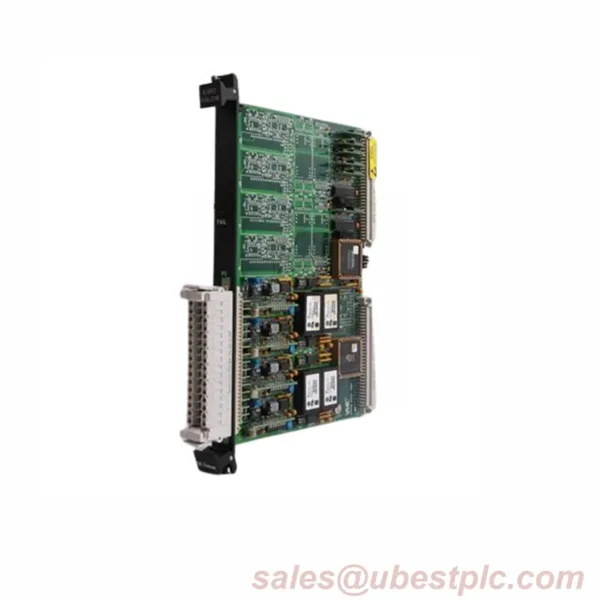

GE Fanuc IC697VAL314: Precision Isolated Analog Output Board
???? Key Features
- 1,500V isolation (channel-to-channel/VMEbus)
- 12-bit resolution for high accuracy
- 4/8 configurable output channels
- 0.08% voltage/current output accuracy
???? Core Specifications for IC697VAL314
| Output Type | Voltage/Current | Channels | 4 or 8 |
| Voltage Ranges | ±2.5V to ±10V | Current Ranges | 4-20mA/0-20mA/5-25mA |
| Load Capacity | 10mA @ ±10V | Isolation | 1,500Vpk |
???? Electrical Performance
- Gain Error: ±0.08% max
- Nonlinearity: 0.025% max
- Offset Drift: ±275μV/°C
- Output Impedance: <0.8Ω (connected)
???? Critical Applications
- Nuclear reactor monitoring systems
- Industrial automation test rigs
- Power grid SCADA controls
- Medical equipment calibration
???? Installation & Compliance
- Pluggable barrier strip connectors
- VMEbus ANSI/IEEE STD 1984-1987 compliant
- Optical isolation for noise immunity
???? Support & Shipping
- 12-month performance warranty
- Global delivery: DHL/FedEx/UPS
- COO documentation available
