Description

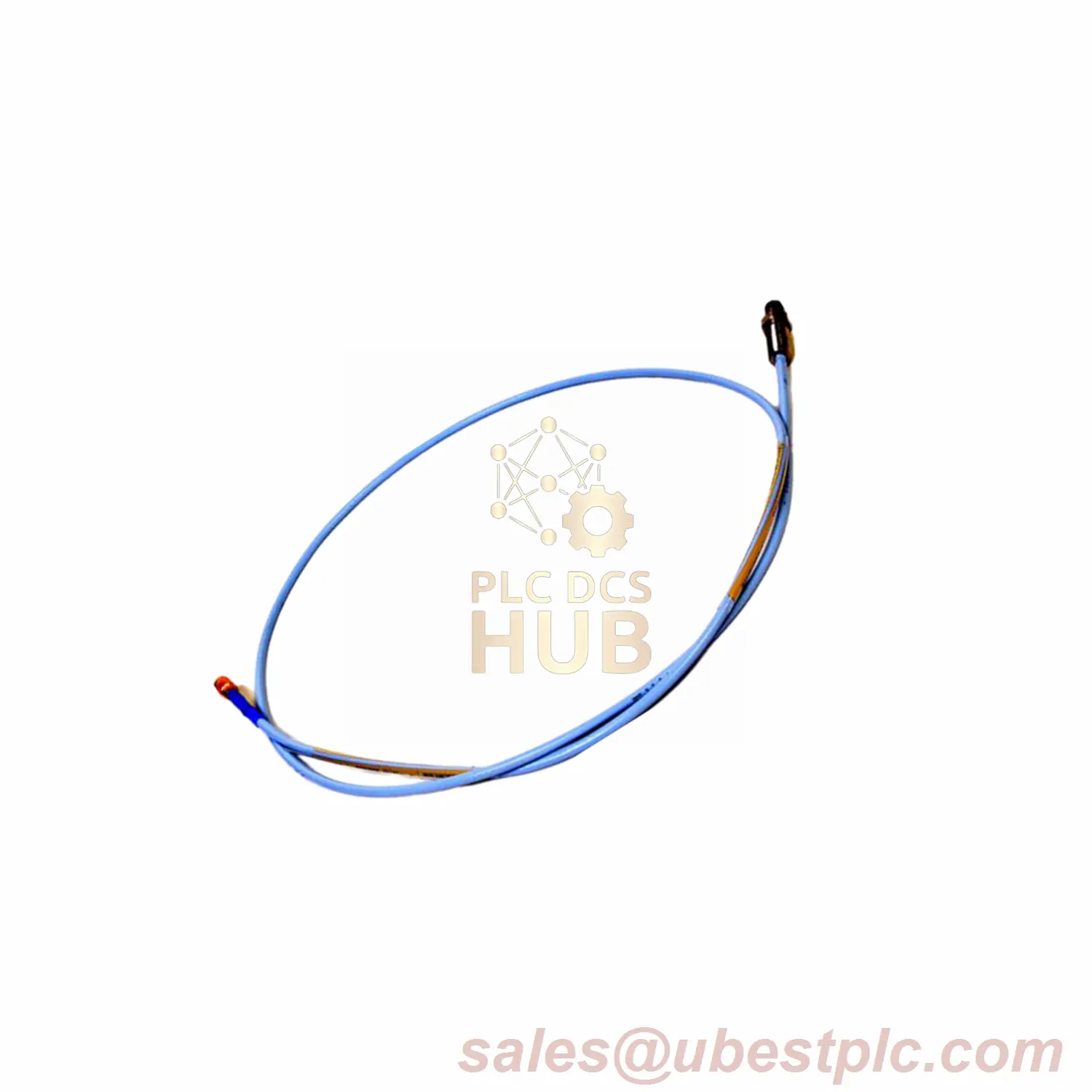

Bently Nevada 3300 XL 8 mm Proximity Probe
The 330103-08-13-10-02-CN is a precision-engineered vibration and displacement sensor tailored for industrial machinery monitoring. Featuring an M10x1 thread and 8 mm sensing diameter, this probe delivers reliable performance in extreme conditions. Designed with a standard cable and 130mm case length, it is ideal for applications requiring compact installation and robust signal integrity.
Technical Data
- Brand: Bently Nevada
- Model: 330103-08-13-10-02-CN
- Suffix Breakdown: 08 (80mm Unthreaded Length), 13 (130mm Case), 10 (1.0m Cable), 02 (Standard Cable), CN (Country Approval)
- Linear Range: 0.25 mm to 2.3 mm (10–90 mils)
- Output Signal: -1 to -17 Vdc
- Accuracy: ±0.50 Ω (Probe Resistance: 7.59 Ω ±0.50)
- Operating Temp: -52°C to +177°C (Standard) / +218°C (Extended Tip)
- Cable: 1.0m Standard with ClickLoc Connector
- Weight: 323 g/m (11.4 oz)
- Pressure Seal: Viton® O-Ring (Not pre-tested)
Installation & Compatibility
- Wiring: 0.2–1.5 mm² (16–24 AWG) shielded triad; ≤305m from monitor
- Thread Engagement: Max 15mm (M10x1)
- Compatibility: Integrates with Bently Nevada 3300 XL Proximitors and monitors
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T1-T5 (Zone 0), AEx/Ex nA/ec IIC T1-T5 (Zone 2)
- Hazardous Areas: Class I/II/III, Groups A-G
Applications
Deployed in oil refinery compressors to monitor shaft alignment and prevent bearing wear. Case Study: Installed on a hydroelectric turbine to detect axial displacement, enabling predictive maintenance and reducing downtime by 30%.
Contact: For technical support or customization, email sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
