Product Description

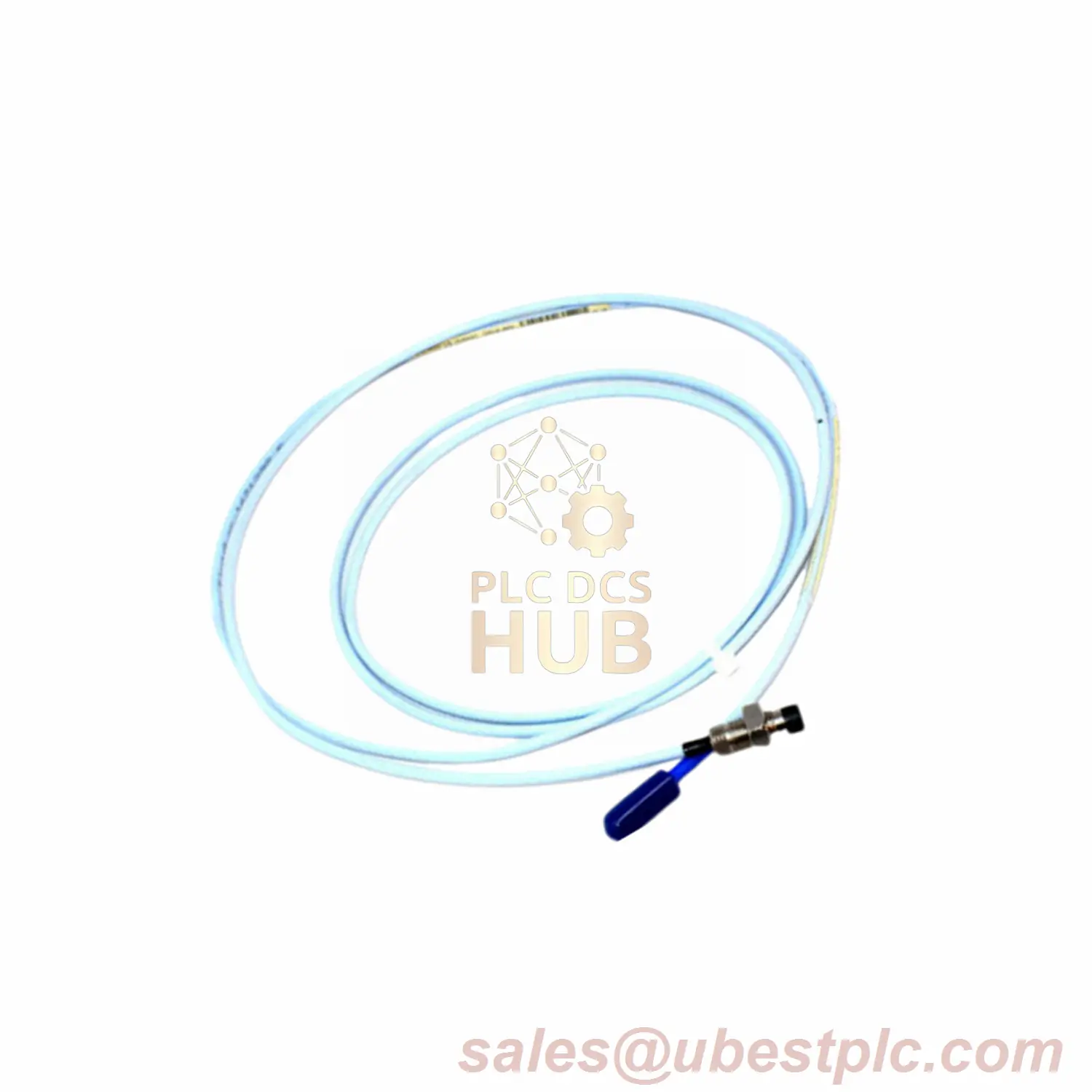

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330103-00-07-10-12-CN) is a high-performance sensor designed for precision vibration and position monitoring in industrial machinery. Featuring a stainless steel case and PPS probe tip, it ensures durability in harsh environments. The probe includes a Miniature Coaxial ClickLoc connector and FluidLoc cable for reliable signal transmission.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-07-10-12-CN
- 00: Unthreaded Length (0 mm)
- 07: Overall Case Length (70 mm)
- 10: Total Cable Length (1.0 meter / 3.3 feet)
- 12: Miniature Coaxial ClickLoc Connector with FluidLoc Cable
- CN: Country-Specific Agency Approval
- Range: 2 mm (80 mils), Linear Range: 0.25–2.3 mm (10–90 mils)
- Accuracy: Probe Resistance: 7.59 Ω ±0.50 Ω
- Output Signal: -1 to -17 Vdc (Recommended Gap: -9 Vdc / 1.27 mm)
- Operating Temperature: -52°C to +177°C (Standard); Up to +260°C (Extended)
Installation Guide
- Field Wiring: 0.2–1.5 mm² (16–24 AWG) shielded triad cable; Max 305 meters (1,000 feet).
- Thread Engagement: M10x1 thread with ≤15 mm engagement.
- Avoid temperatures below -34°C (-30°F) to prevent seal damage.
Compatibility & Certifications
- Intrinsic Safety: Compatible with AEx/Ex ia IIC T5–T1 Ga barriers (Class I, Zone 0).
- Non-Incendive: Supports AEx/Ex nA/ec IIC T5–T1 Gc (Class I, Zone 2).
- Compliance: IEC 68-2-3 (93% humidity), ATEX, UL, CSA.
Package & Warranty
- Includes: Probe, ClickLoc connector, installation manual.
- Warranty: 1-year limited warranty against defects.
Application Examples
- Vibration monitoring in turbines, compressors, and motors.
- Position sensing in high-temperature industrial environments.
Contact Us: For inquiries, email sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
