Product Overview

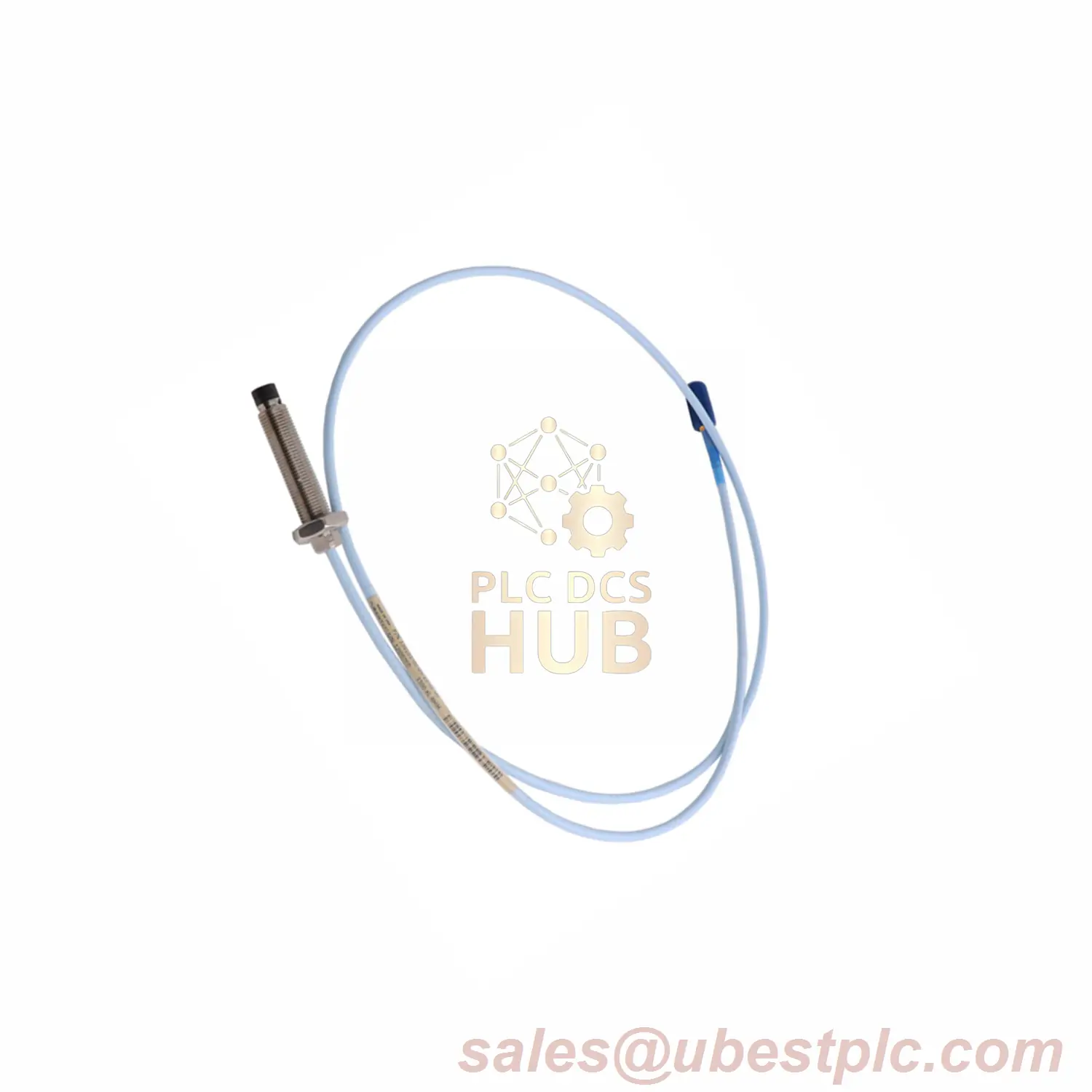

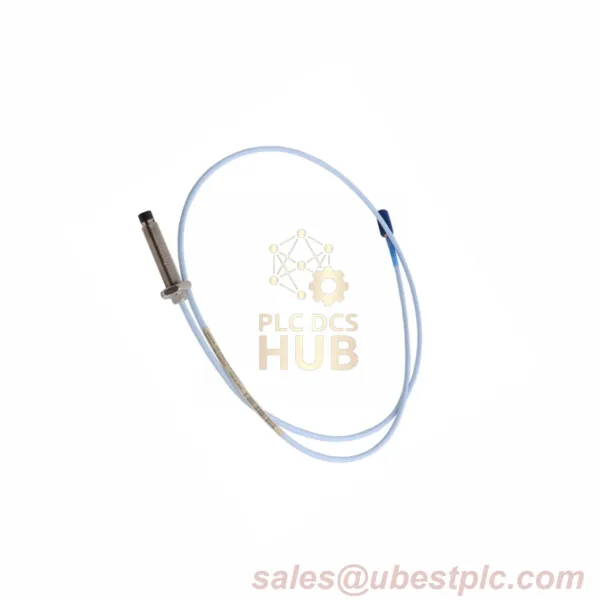

The Bently Nevada 3300 XL 8mm Proximity Probe (Model: 330103-00-08-05-02-05) is engineered for high-reliability displacement monitoring in extreme conditions. Featuring an 80mm stainless steel case and ClickLoc® Gen2 connector, this variant combines rugged construction with enhanced signal integrity.
Technical Specifications for 330103-00-08-05-02-05
- Full Suffix Code: 00-08-05-02-05
00: 000mm Unthreaded Length
08: 80mm Case Length
05: 0.5m Cable
02: ClickLoc® Gen2 Connector
05: CSA/ATEX/IECEx Certified
- Frequency Response: ±1dB from 0-12kHz @ 305m cable
- Shock Tolerance: 50g peak (11ms duration) without calibration shift
- Insulation Resistance: >100MΩ @ 500VDC
- Cable Bend Radius: 25mm minimum (dynamic applications)
Performance Enhancements
- Connector Upgrade: IP69K-rated ClickLoc® Gen2 with anti-vibration lock
- Thread Lubrication: Pre-applied Molykote 111 for -54°C to 232°C operation
- EMI Protection: 85dB attenuation @ 100MHz-1GHz
Installation Protocol
- Use double-shielded SYCWY 3×1.0mm² cable for marine environments
- Maintain 20mm axial clearance from adjacent probes
- Torque mounting nuts to 15Nm ±10%
Certifications
- IECEx ETL 19.0043X (Zone 0/1)
- ATEX Directive 2014/34/EU Cat. 1G
- CSA C22.2 No. 25-2016
Industrial Applications
- Aerospace: Thrust bearing monitoring in turboprop engines (FAA 33.83 compliant)
- Marine: Stern tube bearing wear detection on LNG carriers
- Pharmaceutical: Hygienic-design mixer shaft monitoring in CIP/SIP processes
Package Details
- 1× Probe with NIST-traceable calibration certificate
- 3× A4-80 stainless steel Helicoil inserts
- 1× MIL-STD-810G compliant transit case
Specialized Support: For marine certification packages or shock test reports, contact sales@ubestplc.com
Contact Information
For technical inquiries: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
