Description
Product Snapshot

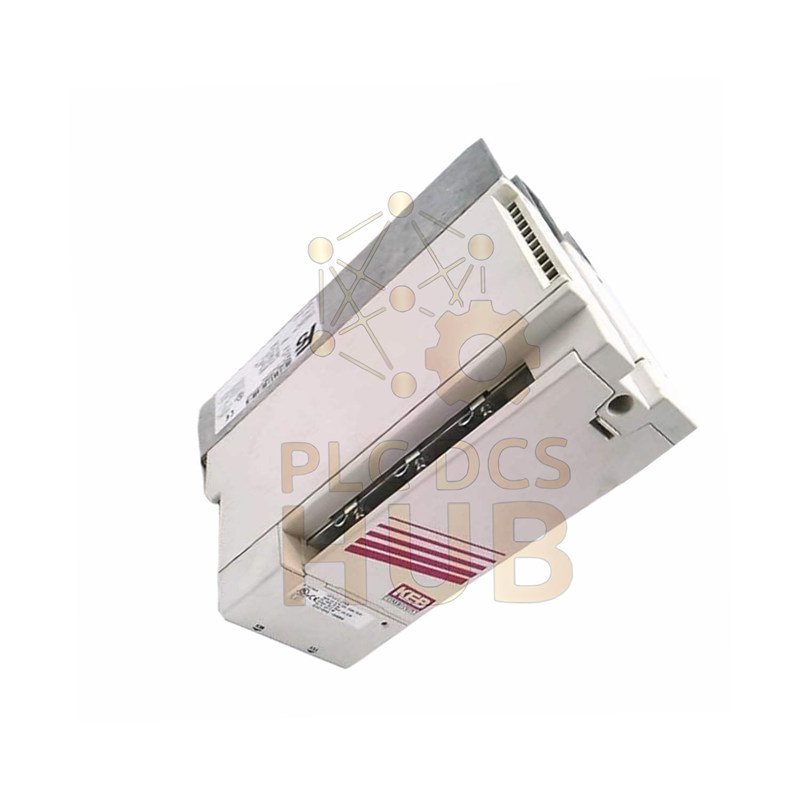

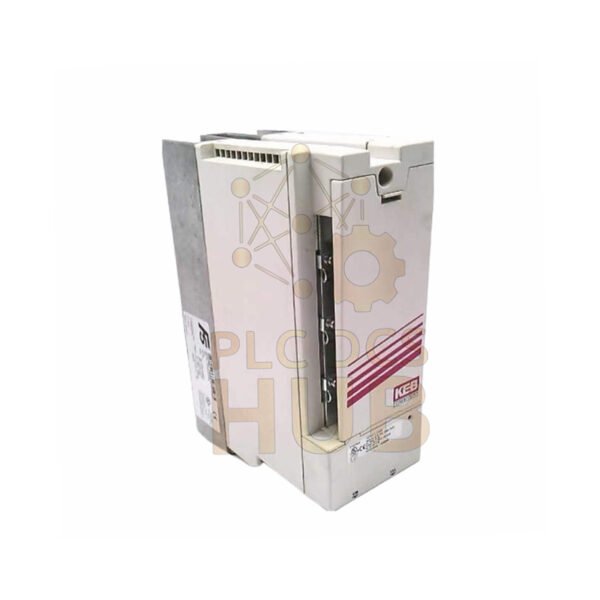

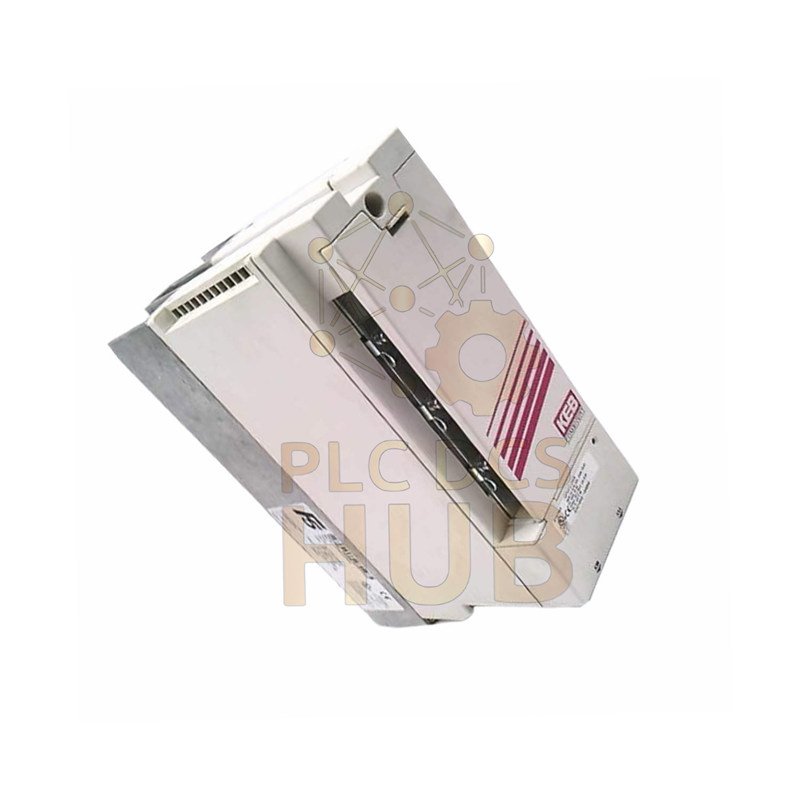

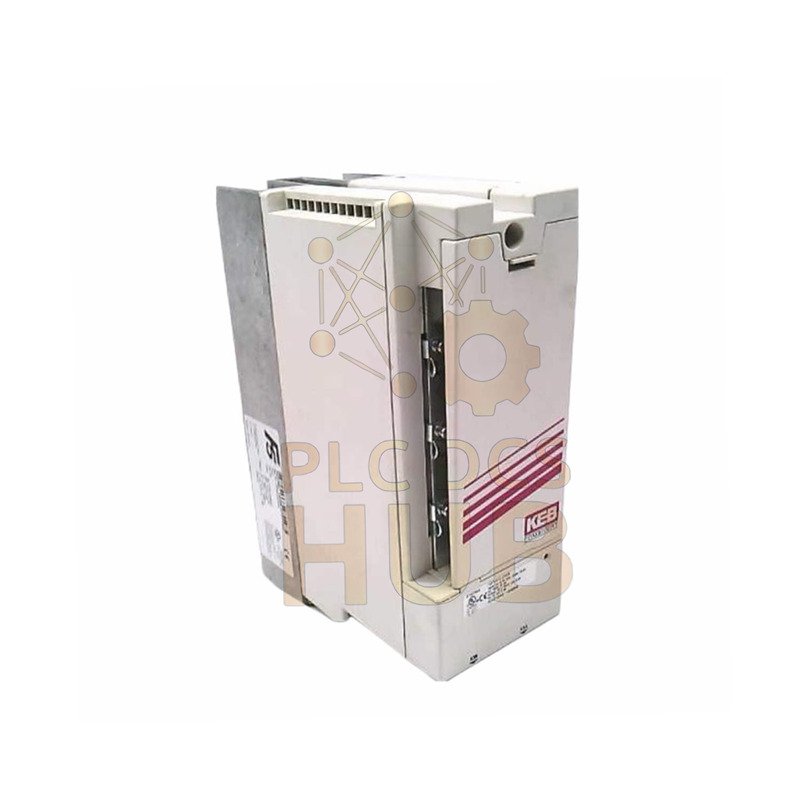

The KEB 12F5A1D-3A0A is a discontinued drive from the
F5 Combivert Series.
It supports stable control in legacy systems.
This model fits three-phase industrial power.
Rated at 4 kW, it handles demanding loads.
The drive works on 400 VAC.
It suits panel-mounted automation cabinets.
Electrical Ratings
- Brand: KEB
- Model: 12F5A1D-3A0A
- Series: F5 Combivert
- Drive Type: Industrial Drive
- Input Voltage: 400 VAC
- Phase: 3 Phase
- Rated Power: 4 kW
- Apparent Power: 6.6 kVA
- Rated Current: 13.3 / 10.6 A
- Switching Frequency: 8 kHz
- Efficiency: 98%
Control and Signal Features
- Control Method: PID
- Communication: RS485 Modbus RTU
- Display: 4-digit LED
- Output Types: Relay, 4–20 mA
- Power Supply: 24V DC
- Resolution: 0.1°C
Sensor and Temperature Handling
- Sensor Inputs: Thermocouple, RTD
- Measurement Range: -50°C to +150°C
- Thermal Stability: High accuracy control
- Max Heatsink Temp: 90°C
Mechanical and Installation
- Mounting Type: Panel Mount
- Compact housing for cabinets
- Clear terminal layout
- Easy replacement in F5 systems
Key Selling Points
- Ideal for legacy automation support
- Stable PID loop control
- Reliable signal resolution
- High thermal tolerance
- Simple field wiring
Logistics and Warranty
- Condition: Discontinued by manufacturer
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
- Secure industrial packaging
Professional FAQ
- Can this drive replace other F5 models?
- Yes. Check power and current limits before swap.
- Is this drive suitable for temperature control?
- Yes. It supports RTD and thermocouple inputs.
- How stable is PID tuning?
- PID control remains stable under load changes.
- What is a common field issue?
- Poor airflow can raise heatsink temperature.
- Is Modbus setup complex?
- No. Standard RS485 wiring is enough.
