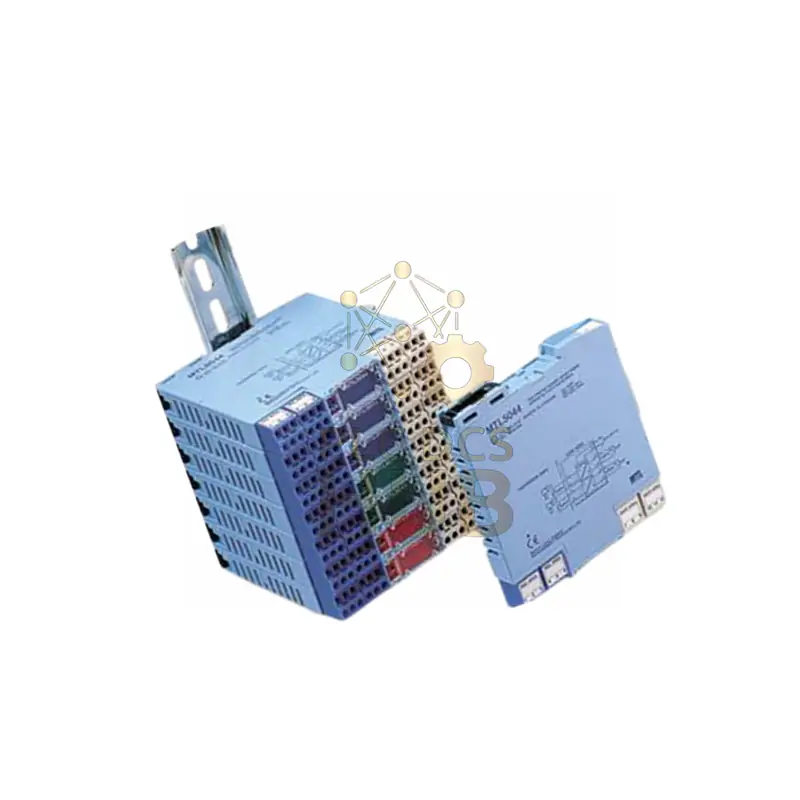

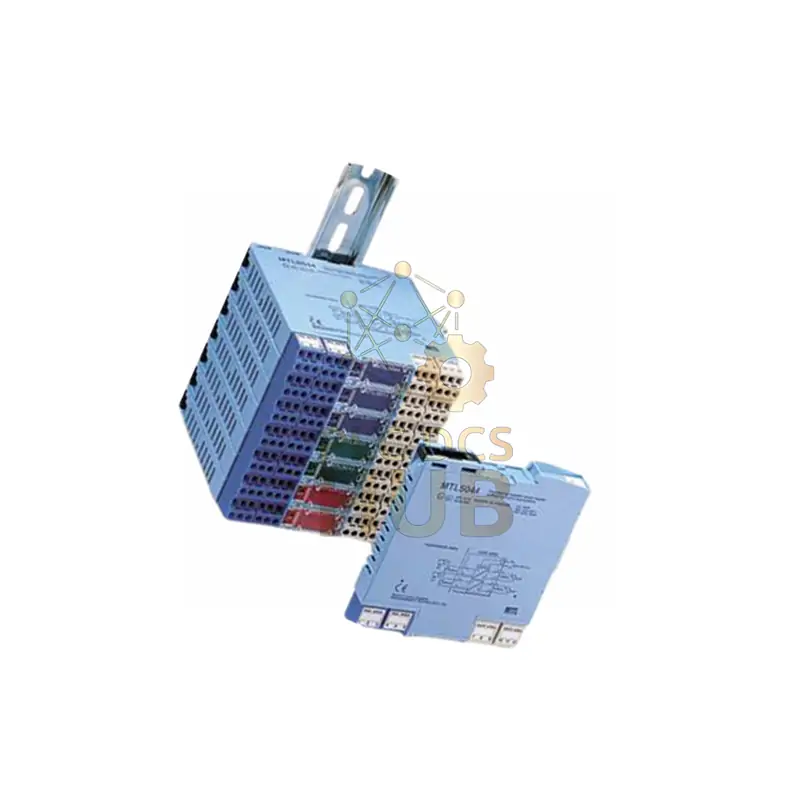

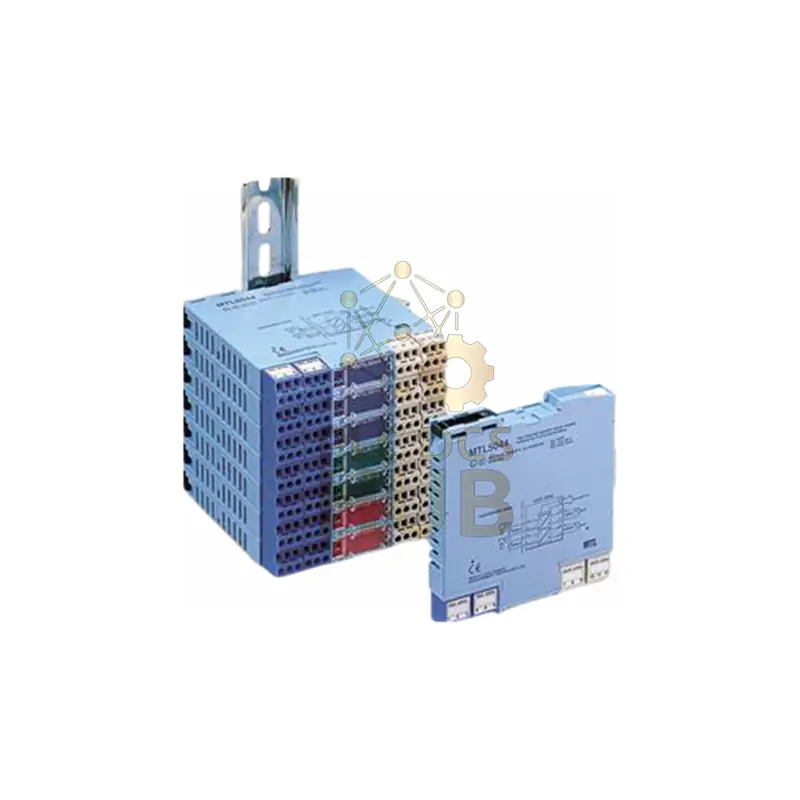

MTL5040 Dual-Channel Isolator: Advanced Signal Conditioning for Hazardous Areas
Powerful Signal Management
The MTL5040 safely powers 2-wire transmitters in explosive zones while repeating 4-20mA signals. It also sends control signals from safe areas to hazardous areas. Perfect for complex industrial setups.
Key Specifications
| Brand/Model: | MTL5040 Series Signal Conditioner |
| Channels: | Two independent channels |
| Input Range: | 0-24mA (both channels) |
| Output Range: | 4-20mA (0-24mA over-range) |
| Accuracy: | Better than 20µA |
| Response Time: | 250µs typical |
| Load Capacity: | 550Ω max |
| Power Supply: | 20-35V DC |
| Isolation: | 250V AC between circuits |
Terminal Connections
1: Input -ve
2: Input +ve
11: Output -ve
12: Output +ve
4: Output -ve
5: Output +ve
8: Input -ve
9: Input +ve
13: Supply -ve
14: Supply +ve
Safety & Compliance
Approved for use in:
• Zone 0, IIC, T4-T6 hazardous areas
• Division 1, Group A locations
Meets all international safety standards
Frequently Asked Questions
Q: Can MTL5040 handle signal failures?
A: Yes, it manages 0-24mA range including under/over-range signals.
Q: What’s the maximum cable length?
A: Works with cables up to 550Ω resistance at 20mA.
Q: Does it need special connectors?
A: Standard industrial connectors work with terminal connections.
Q: How fast does it respond to signal changes?
A: Responds within 250 microseconds typically.
Q: Can I use it with non-HART devices?
A: Yes, works with all standard 4-20mA equipment.
Package Contents
• MTL5040 signal conditioner unit
• Installation guide
• Safety compliance documents
Warranty & Shipping
12-month product warranty
Worldwide shipping via FedEx, UPS, DHL
Delivery in 3-5 business days
