Description

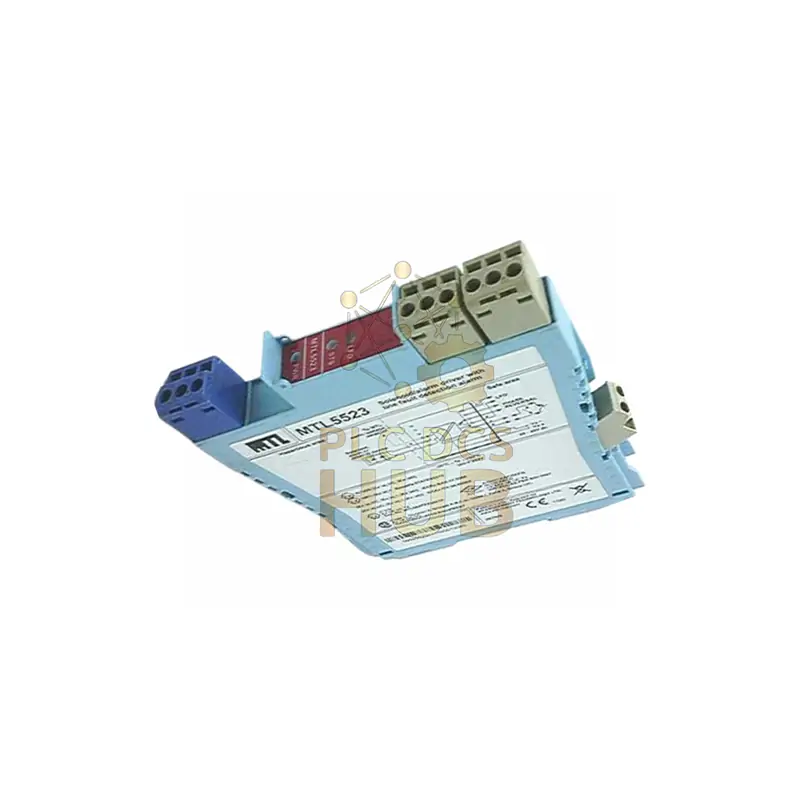

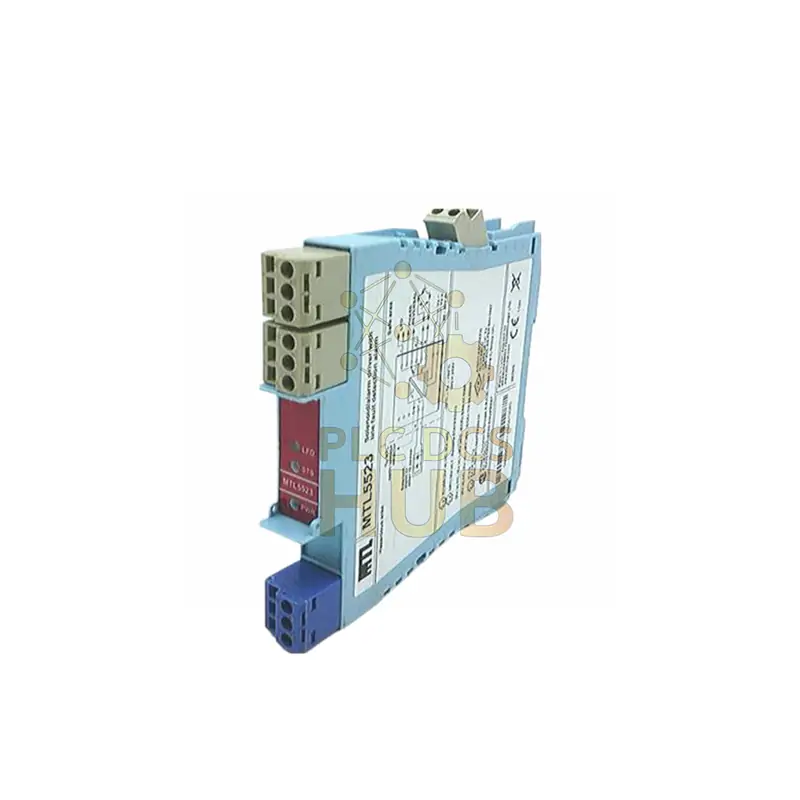

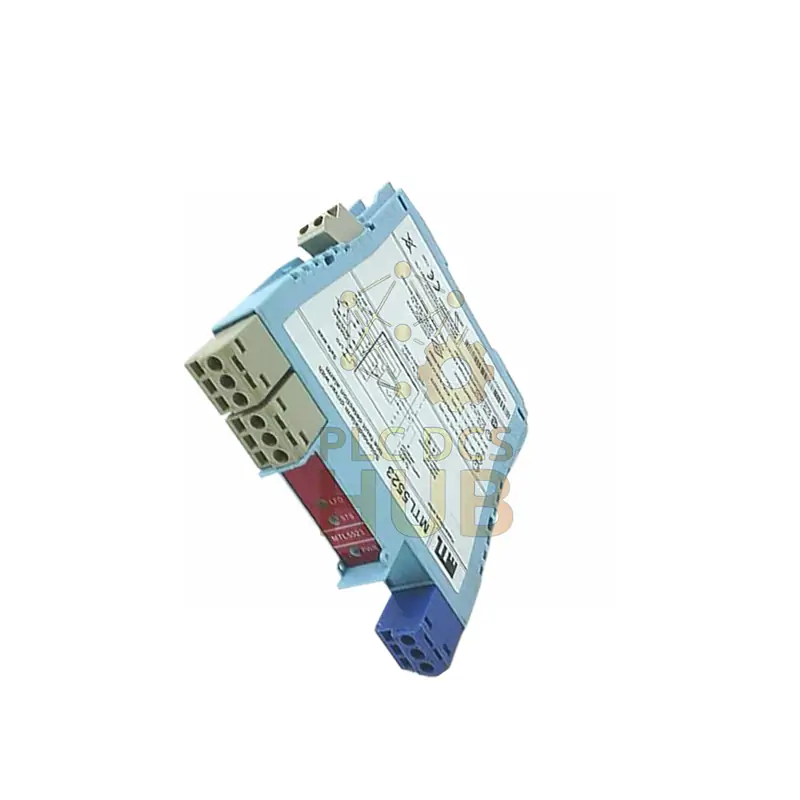

MTL5523: Safe Area to Hazardous Area Interface

The MTL5523 interface lets you control hazardous area devices from a safe area. Use a simple switch or logic signal to safely operate solenoids and other loads. It features built-in line fault detection (LFD) for safety. If a wire breaks or shorts, the module instantly signals the fault.

Technical Specifications

• Brand: MTL
• Model: MTL5523
• Input Signal: Dry Contact or Logic (On: <1.4V, Off: >4.5V)
• Output Voltage: 13.6V to 24V
• Output Current: 48mA min
• Response Time: < 100ms
• Line Fault Detection: Detects opens and shorts (55Ω to 4kΩ range)
• Power Supply: 24V DC
• Power Consumption: 100mA max
• Hazardous Area Approval: Zone 0, IIC, T4-T6 & Div. 1, Group A

How To Connect

• 1. Connect your safe-area control signal (switch or logic) to the control input terminals.
• 2. Wire your hazardous-area load (like a solenoid) to the output terminals.
• 3. Apply 24V power to the unit.
• 4. The green light means power is on. The yellow light shows the output is active. A red light means a wire fault.

Frequently Asked Questions

• Q: What can I control with the MTL5523?
• A: You can control solenoids and other on/off devices in hazardous areas.
• Q: Can I use a computer to control it?
• A: Yes. A logic signal from a PLC or computer can easily turn the output on and off.
• Q: What does the red LED mean?
• A: The red LED lights up if there is a broken wire or a short circuit in your field wiring.
• Q: Does it work with all types of switches?
• A: Yes, it works with standard dry contact switches and open-collector transistors.
• Q: Can I add earth fault detection?
• A: Yes, you can add an optional MTL4220 module to terminal 3 for earth leakage detection.

Package & Warranty

You will receive: 1x MTL5523 Interface Module.

This product is covered by a full 12-month warranty.
