NSv Proximity Probe 330905-00-13-10-02-05 Bently Nevada

Description

Description

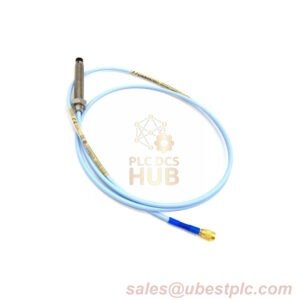

The Bently Nevada 330905-00-13-10-02-05 is a 3300 NSv Proximity Probe designed for precision vibration monitoring in hazardous environments. Featuring a 130 mm stainless steel case, 1.0 m armored cable, and global certifications, this probe excels in chemical-laden process compressors. Engineered as a direct upgrade to 3300 RAM probes, it delivers enhanced durability and signal accuracy in extreme conditions.

Technical Specifications

• Model: 330905-00-13-10-02-05
• Suffix Code Breakdown:
  • -00: 0 mm unthreaded length
  • -13: 130 mm (5.1″) case length
  • -10: 1.0 m (39″) cable
  • -02: ClickLoc™ connector + standard cable
  • -05: CSA/ATEX/IECEx certified
• Electrical:
  • DC Resistance: 4.2 Ω ±0.5 (1.0m length)
  • Scale Factor: 7.87 V/mm (±12.5%) (200 mV/mil)
  • Frequency Response: 0-10 kHz (±3 dB)
  • Linearity: ±0.06 mm (±2.3 mils)
• Mechanical:
  • Case Material: AISI 304 SST (corrosion-resistant)
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Thread Torque: 33.9 N·m max / 11.3 N·m recommended
  • Bend Radius: 25.4 mm (1.0″)
• Environmental:
  • Operating Temp: -52°C to +177°C (-62°F to +351°F)
  • Pressure Seal: Viton® O-ring (500 psi differential)
  • Certifications: ATEX II 3G, IECEx Ex ec IIC T4, CSA
