Description
Product Profile

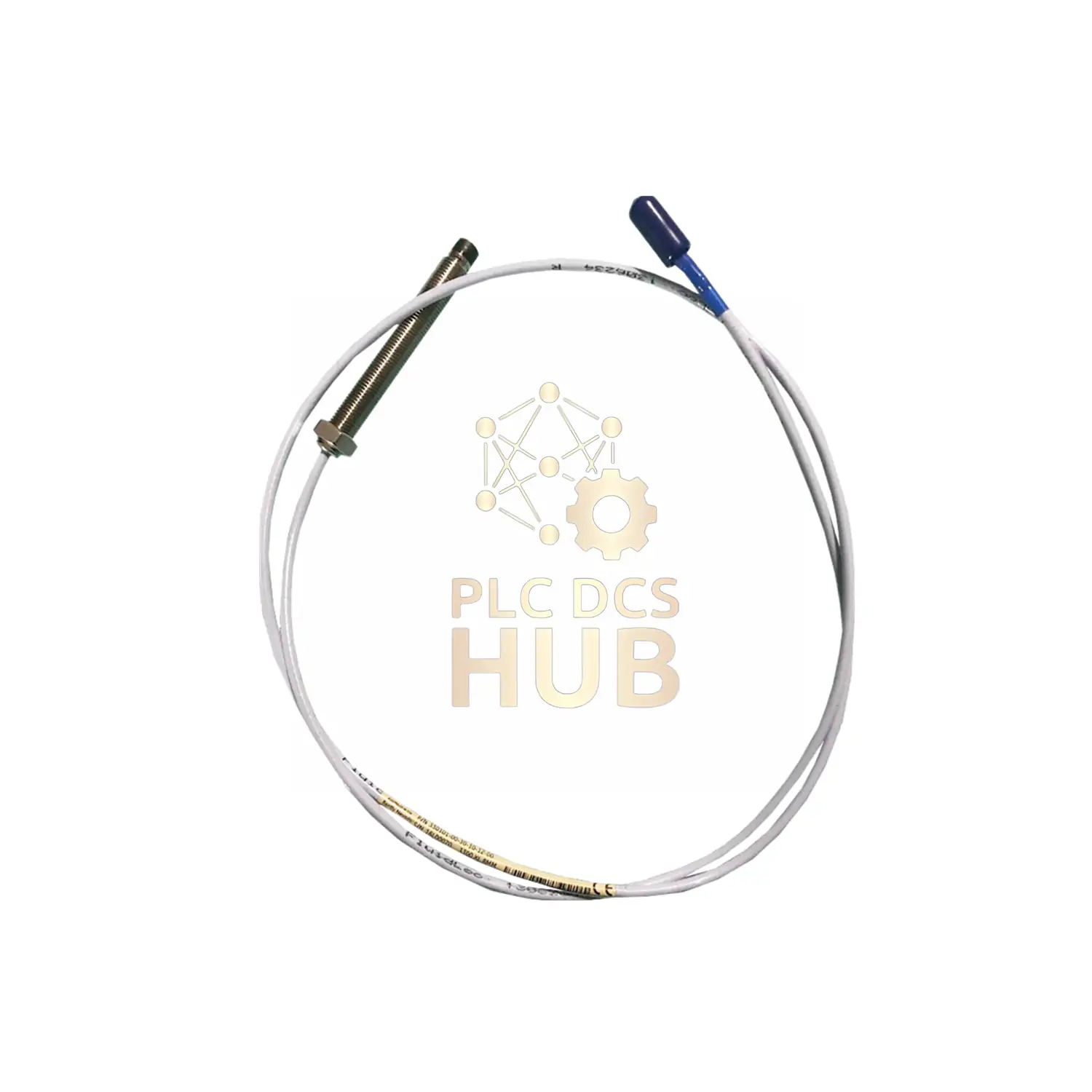

This is a genuine Bently Nevada 3300 XL 11 mm Proximity Probe. The full part number is 330702-00-26-50-12-00. It is brand new, made in the USA, and comes in sealed factory packaging. This model is built for demanding industrial environments.
Contact our technical team on WhatsApp: +86 158 8020 0923.
Detailed Configuration
- Manufacturer & Origin
- Bently Nevada
- Made in U.S.A.
- Part Number Architecture
- Complete ID: 330702-00-26-50-12-00
- 330702 – Core Model: Armored 11mm Probe, 1/2-20 UNF Thread.
- › 00 – Unthreaded Shank: 0.0 inch.
- › 26 – Case Body Length: 2.6 inches.
- › 50 – Integrated Cable: 5.0 meters (For 5m Proximitor systems only).
- › 12 – Cable System: FluidLoc™ with ClickLoc Connector.
- › 00 – Certifications: Standard, No Special Approvals.
- Complete ID: 330702-00-26-50-12-00
- Key Technical Attributes
- Electrical
- DC Resistance (5m): 7.2 Ω ± 0.8 Ω.
- Cable: 75 Ω Triaxial, FEP Insulation.
- Mechanical
- Mounting Thread: 1/2-20 UNF.
- Installation Torque: 15.2 N•m (133 in•lb) recommended.
- Max Thread Engagement: 0.750 inch.
- Min Cable Bend Radius: 25.4 mm (1.0 in).
- Construction
- Case: Armored AISI 304 Stainless Steel.
- Tip: Wear-resistant Polyphenylene Sulfide (PPS).
- Seal: Viton® O-ring (Not pressure-tested by default).
- Environmental
- Operating Temp: -51°C to +177°C (-60°F to +351°F).
- Avoid prolonged exposure below -34°C to protect seal.
- Electrical
Installation & Usage
- Use exclusively with a matching 5-meter Proximitor sensor.
- Install in a 1/2-20 UNF threaded hole.
- Tighten to 15.2 N•m using a calibrated torque wrench.
- Connect the ClickLoc connector by hand only.
System Compatibility
- Designed for Bently Nevada 3300 XL monitoring systems.
- Ideal for critical vibration measurement on turbines, fans, and gearboxes.
FAQs: Your Questions Answered
Product Differentiation
- Q: What is FluidLoc cable, and why is it important?
- A: FluidLoc is a special cable construction that resists fluid ingress along the cable core. It is crucial for environments with oil mist, coolant spray, or high humidity to prevent signal failure.
Application & Selection
- Q: This probe has armor AND FluidLoc. When is this combination necessary?
- A: This is the premium choice for harsh sites. Use it where cables face both physical damage (crushing, abrasion) from machinery and exposure to oils or chemicals.
- Q: Can I replace a standard cable probe (option -02) with this FluidLoc model (-12)?
- A: Yes, electrically and mechanically they are compatible. The FluidLoc version provides enhanced environmental protection as a direct upgrade.
Ordering & Logistics
- Q: How does the warranty and shipping work for this item?
- A: We provide a full 12-month manufacturer’s warranty. Orders ship quickly via reliable carriers like FedEx, UPS, or DHL with complete tracking.
- Q: My application involves high pressure. Is this probe suitable?
- A: The probe has a Viton® O-ring seal but is not factory pressure-tested. For high-pressure or safety-critical uses, you must request a custom pressure seal test from the manufacturer before purchase.
Smart Selection Checklist
- Confirm you need a 5-meter system length.
- Select this 330702-00-26-50-12-00 for maximum durability (Armor + FluidLoc).
- Verify your mounting hole is 1/2-20 UNF thread.
- Ensure you have space for the 2.6-inch long probe body.
- Remember, agency approvals are not included with the “-00” suffix.
- Your order includes peace of mind with warranty and express shipping.
