Description
Product Quick View

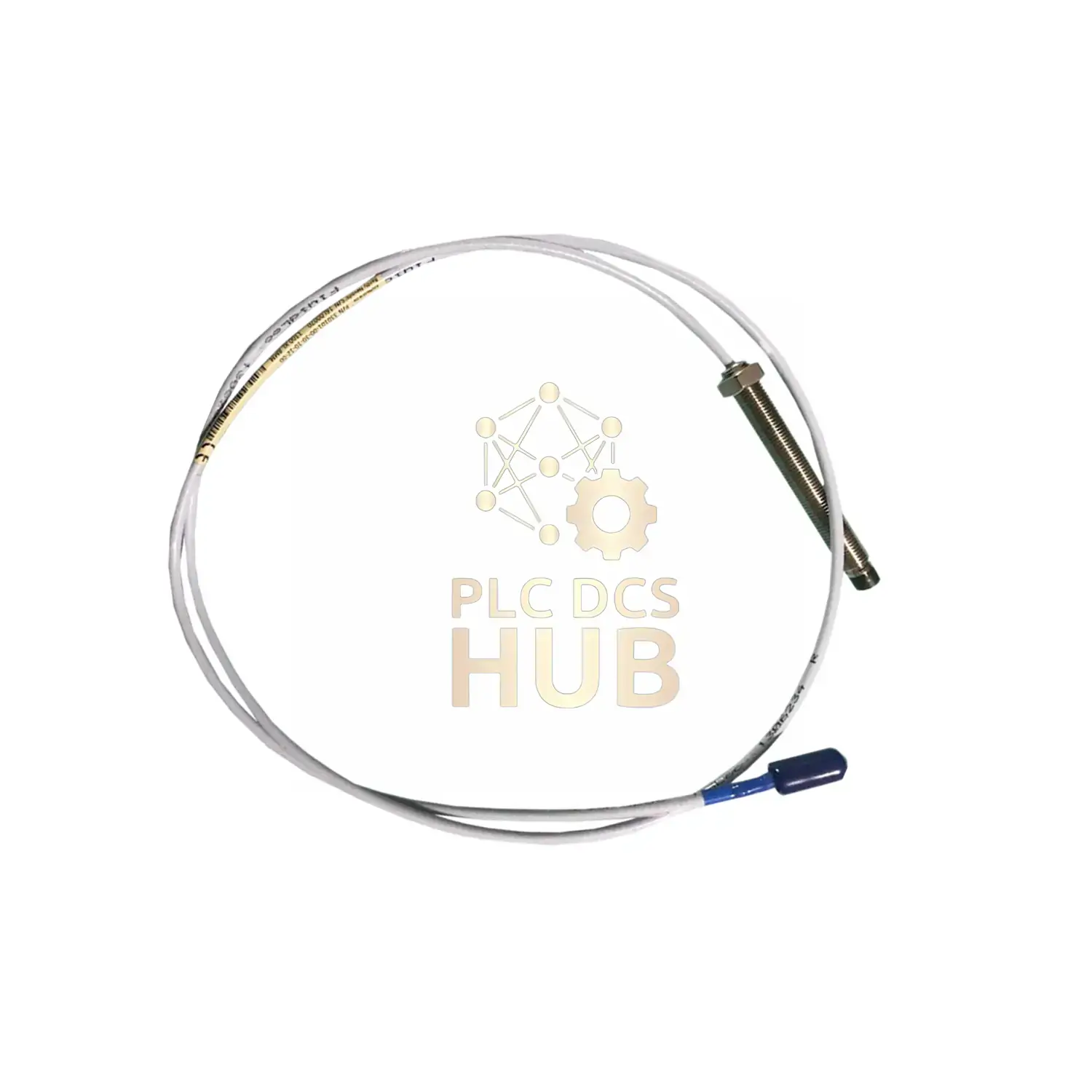

This is the ultimate sensor for tough jobs: a Bently Nevada 3300 XL 11 mm Proximity Probe, part number 330702-00-30-50-11-05. New, U.S.-made, and fully loaded with premium features. It’s the complete package for reliable vibration monitoring.
Get expert advice on WhatsApp: +86 158 8020 0923.
Product Build Sheet
- Essentials
- Manufacturer: Bently Nevada
- Product Type: Proximity Probe / Vibration Sensor
- Series: 3300 XL 11mm
- Condition: New & Original, U.S.A. Made
- Part Number Breakdown
- Full Model: 330702–00–30–50–11–05
- 330702: Armored Probe, 1/2-20 UNF Thread
- ➤ 00: Unthreaded Length = 0.0 in
- ➤ 30: Case Length = 3.0 in
- ➤ 50: Cable Length = 5.0 m (For 5m Proximitor only)
- ➤ 11: Connector & Cable = ClickLoc with Protector & FluidLoc Cable
- ➤ 05: Approvals = Multiple Agency Certifications
- Core Technical Data
- Electrical: Resistance (5m) = 7.2 Ω ± 0.8 Ω.
- Mechanical:
- Mounting: 1/2-20 UNF thread.
- Torque: 15.2 N•m recommended.
- Construction:
- Case: AISI 304 Stainless Steel (Armored).
- Tip: PPS Plastic.
- Cable: 75 Ω Triaxial, FluidLoc, FEP Insulated.
- Environment:
- Temperature: -51°C to +177°C.
- Seal: Viton® O-ring (Not pressure tested).
Installation Instructions
- Pair only with a 5-meter Proximitor.
- Install in 1/2-20 UNF threaded hole.
- Use a torque wrench. Tighten to 15.2 N•m.
- Do not bend cable tighter than a 1.0-inch radius.
System Fit
- Works with Bently Nevada 3300 XL monitors.
- Measures vibration on turbines, pumps, motors.
Certifications
- This model (-05) holds multiple safety approvals.
- Suitable for use in certified hazardous locations.
FAQ: Quick Answers
About This Model
- Q: What does “FluidLoc cable with connector protector” give me?
- A: It gives you double protection. FluidLoc stops oil and moisture inside the cable. The connector protector shields the electrical connection from physical damage and dirt.
Selection & Use
- Q: Why choose the 3.0-inch case length (-30) over the 2.6-inch version?
- A: The 3.0-inch body provides more thread engagement in thicker mounting brackets or machine housings. This offers better mechanical stability in high-vibration areas.
- Q: We need probes for an offshore platform. Is this the right model?
- A: Yes, this 330702-00-30-50-11-05 is ideal. The armor, FluidLoc cable, and Multiple Approvals (-05) are designed for harsh, regulated environments like offshore platforms.
Ordering & Support
- Q: What if I need a different connector type?
- A: The “-11” suffix is fixed for this model. For other connectors (e.g., -01, -02), you would need a different part number. Contact us to find the exact match.
- Q: How do I get this part, and what is covered?
- A: Add to cart for fast checkout. Your new 330702-00-30-50-11-05 probe includes a 12-month warranty. We ship worldwide via FedEx, UPS, or DHL with tracking.
Buyer’s Checklist
- Confirm your system uses 1/2-20 UNF thread.
- You must have a 5-meter Proximitor.
- Need max durability? This model has armor, FluidLoc, and connector guard.
- Check for 3.0 inches of clear mounting depth.
- Require site certifications? The -05 suffix provides them.
- Your purchase is safe with warranty and reliable shipping.
