Description
Description

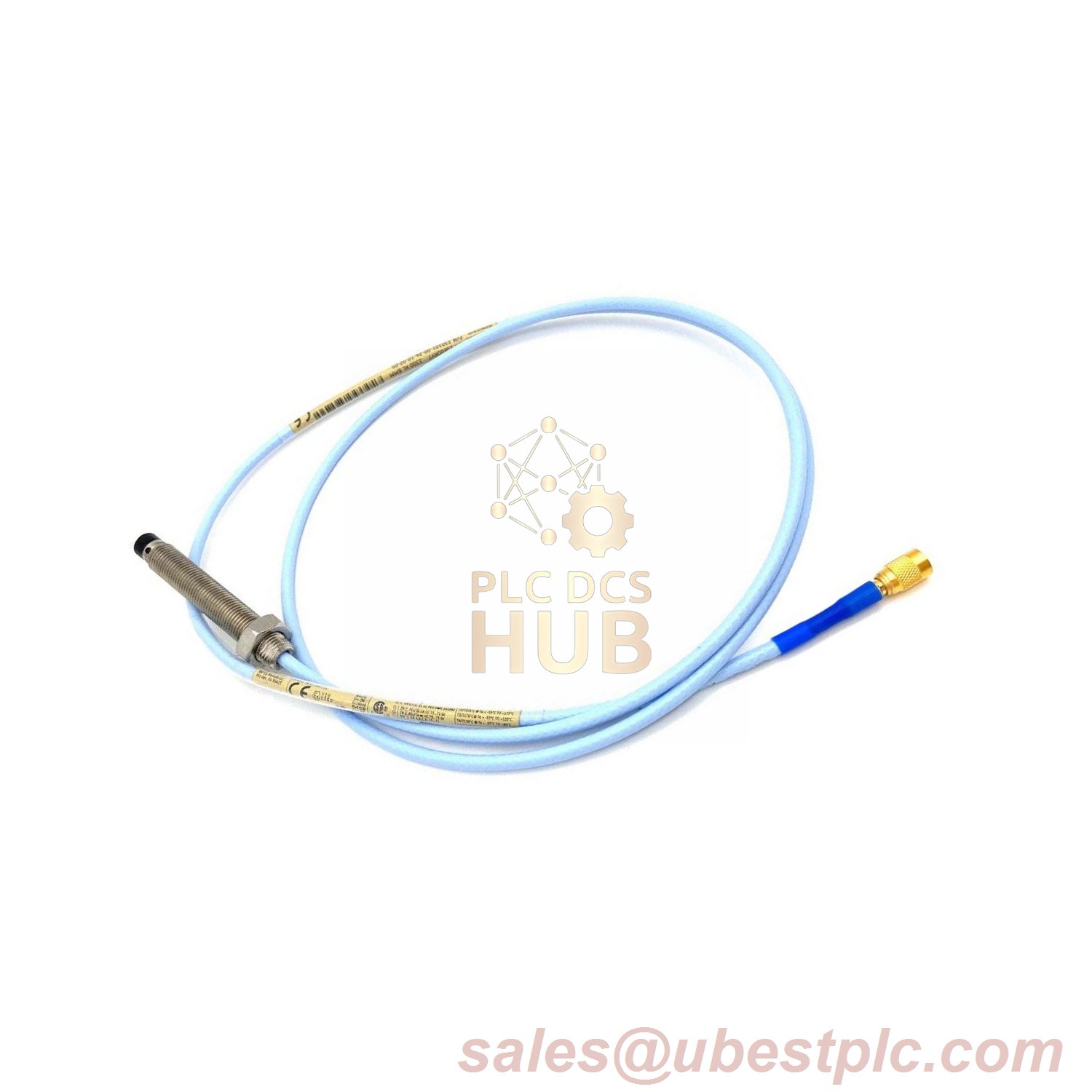

The Bently Nevada 330104-07-14-05-01-00 Proximity Probe is a rugged industrial sensor designed for precision vibration monitoring in non-hazardous environments. Featuring a 140 mm stainless steel case, Miniature ClickLoc™ connector with protector, and Viton® O-ring seal, this 8 mm probe combines durability with easy installation. Ideal for standard industrial applications requiring reliable performance without certification overhead.
Technical Specifications
- Model: 330104-07-14-05-01-00
- Configuration:
- Unthreaded Length: 70 mm (2.75″)
- Case Length: 140 mm (5.5″)
- Total Cable Length: 0.5 m (1.6 ft)
- Connector: Miniature ClickLoc™ with Protector
- Certifications: Not Required
- Electrical:
- Power Supply: -17.5 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- DC Resistance (0.5m): 7.45 Ω ±0.50
- Mechanical:
- Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: AISI 303/304 Stainless Steel
- Seal: Viton® O-ring (pressure-rated)
Why Choose This Model?
This probe delivers industrial-grade reliability for non-hazardous environments. The extended 140 mm case allows deeper mounting in machinery, while the ClickLoc™ protector ensures connector longevity. With a corrosion-resistant stainless steel body and Viton® seal, it’s built for demanding applications.
Contact Support
For pricing or technical assistance:
sales@ubestplc.com
