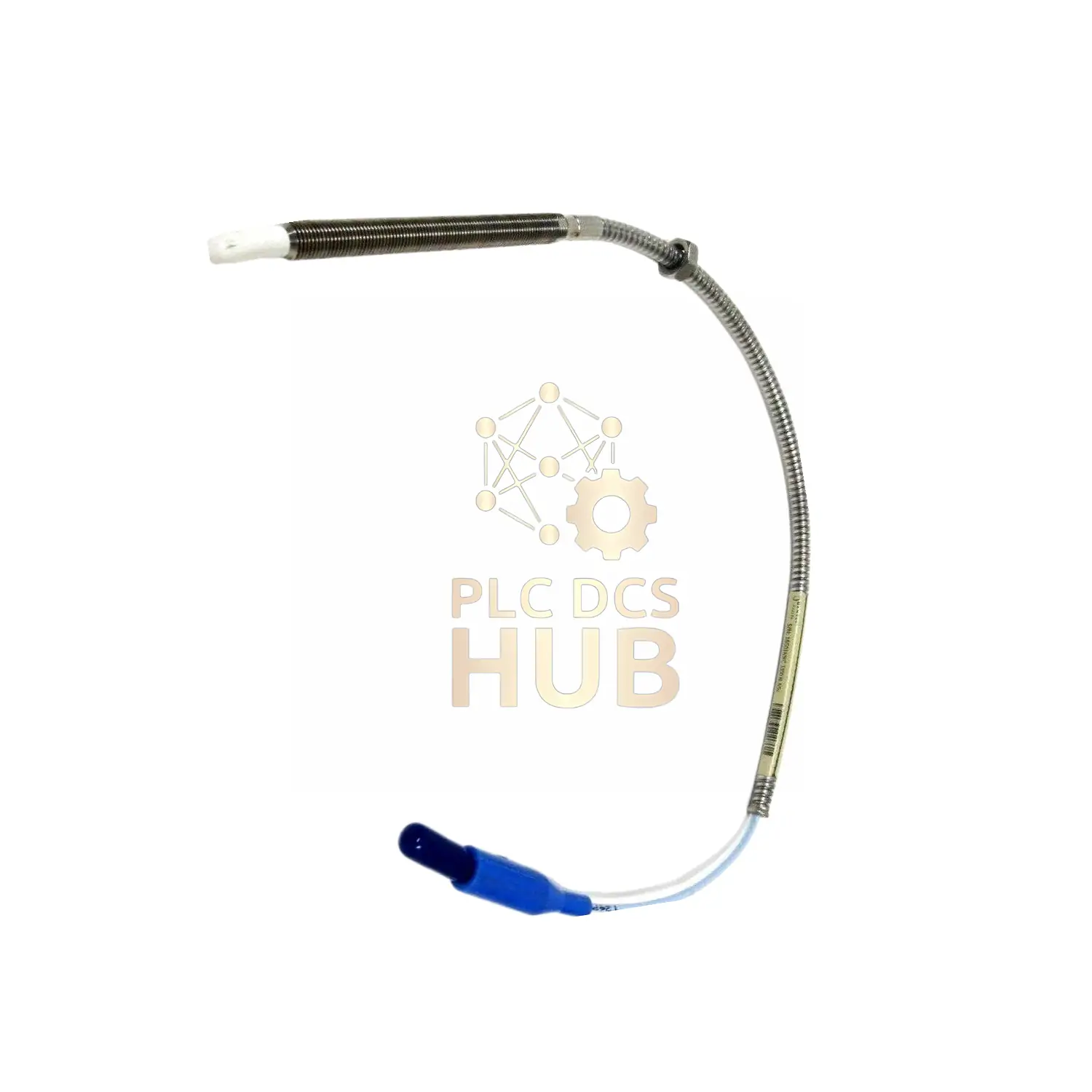

3300 NSv Proximity Probe: Precision Vibration Monitoring for Industrial Safety
Technical Data
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Full Suffix Information: Product No. 330909-05-25-10-02-00 (05 = 0.5 in unthreaded length, 25 = 2.5 in case length, 10 = 1.0 m total length, 02 = ClickLoc connector, 00 = no agency approval).
Key Specs:
- Output Signal: 75 Ω coaxial cable (standard analog signal).
- Measurement Range: General purpose for gap sensing (contact us for exact needs).
- Accuracy: High reliability; probe resistance 4.2 ± 0.5 ohms at 1.0m length.
- Operating Temperature: -52°C to +177°C (-62°F to +351°F).
- Storage Temperature: Same as operating range.
- Cable Type: 75 Ω coaxial, FEP insulated. Length options: 0.5, 1, 5, or 7 meters.
- Weight: About 14 to 150 g (0.5 to 5.3 oz).
- Thread Type: 3/8-24 UNF. Max thread engagement: 0.563 inches.
Installation Guide
Follow these steps for safe setup:
- Use the recommended torque: 11.3 N•m (100 in•lb). Max torque is 33.9 N•m (300 in•lb).
- For first three threads, torque should be 7.5 N•m (66 in•lb) max.
- Keep thread engagement under 0.563 inches.
- Do not expose to under -34°C (-30°F) for long periods. This can damage the seal.
Compatibility
Works with Bently Nevada 3300 series monitoring systems. The Miniature coaxial ClickLoc connector fits standard industrial setups. Good for vibration sensors in machines like turbines or pumps.
Packaging & Warranty
Includes probe, cable, and connector in protective packaging. Backed by a 12-month warranty from purchase date. Covers defects in materials or workmanship.
Shipping Methods
Fast global delivery via FedEx, UPS, or DHL. Tracking provided for all orders.
FAQ
Q: What is the max operating temperature?
A: +177°C (+351°F). Do not exceed this limit.
Q: Can I use this probe in high-pressure areas?
A: It has a Viton O-ring seal, but it is not tested for pressure. Use in normal conditions.
Q: How do I connect the cable?
A: Use the ClickLoc connector for secure links. It is easy and quick.
Q: What if the probe fails?
A: Contact us under the 12-month warranty for support or replacement.
Q: What shipping options are there?
A: We ship with FedEx, UPS, or DHL for fast service.
