Description
Industrial-Grade Vibration Monitoring

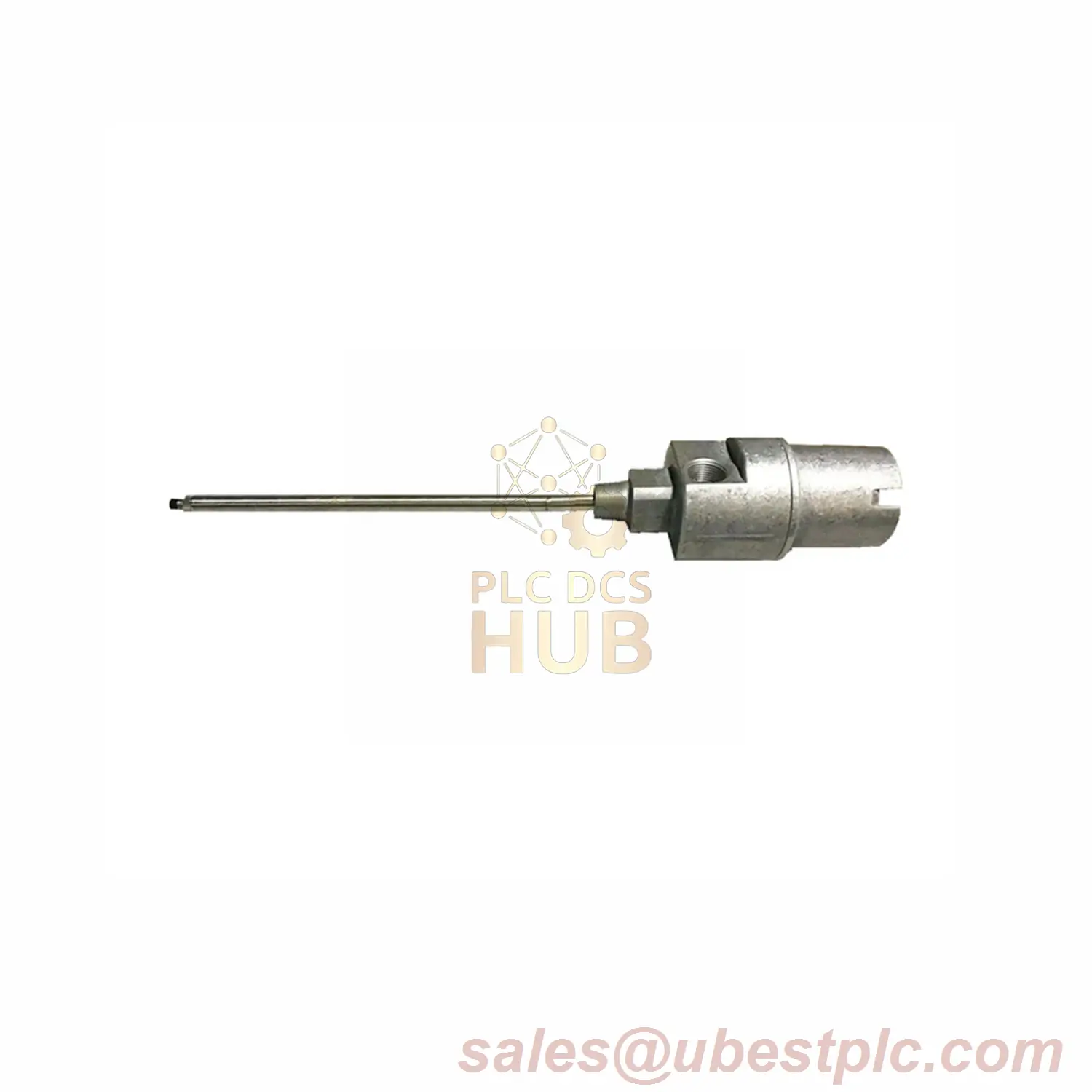

The Bently Nevada 21000-16-10-00-256-01-02 features a 5.6″ (142mm) penetration depth optimized for mid-range vibration analysis in Class II Division 1 Group F combustible dust environments. Includes explosion-proof -01 fittings for rapid deployment.
Technical Profile
Model Deconstruction for 21000-16-10-00-256-01-02
- 16: 3300 XL 8mm Diameter Probe
- 10: 1.0m (39″) High-Temp Silicone Cable
- 00: Direct Mount (No Standoff)
- 256: 5.6″ Penetration (D)
- 01: Explosion-Proof Conduit Fitting Kit
- 02: Mounting Thread 02 3/4-14 NPT
Performance Data
- Frequency Response: 0.5-12 kHz (±3dB)
- EMC Immunity: 30V/m @ 10kHz-1GHz
- Shock Resistance: 100g @ 11ms
- Cable Bend Radius: ≥38mm
Mission-Critical Applications
Cement Kiln Drives
Monitors pinion gear mesh patterns in Group F coal dust conditions, with 5.6″ penetration reaching through refractory insulation layers. Aluminum housing resists alkali buildup.
Hydrogen Compressors
Tracks rotor unbalance in Class I Group C hydrogen service, utilizing -01 explosion-proof fittings to prevent gas ingress. Withstands 100°C continuous operation.
Certification Matrix
- CSA C22.2 No. 25
- ATEX Cat 3G Ex nA IIC T4
- IEC 61207-1 Compliance
- NEMA 4X Equivalent
Special Configuration Notes
► For C+D >300mm: Mandatory use of P/N 21000-SPK ► Flag label orientation: 45° from mounting plane ► Torque specs: 20-25 N·m for dome cover ► Grounding: ≤2Ω to equipment chassis
Expert Support: sales@ubestplc.com
Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
