Deep-Reach Vibration Monitoring for Industrial Automation

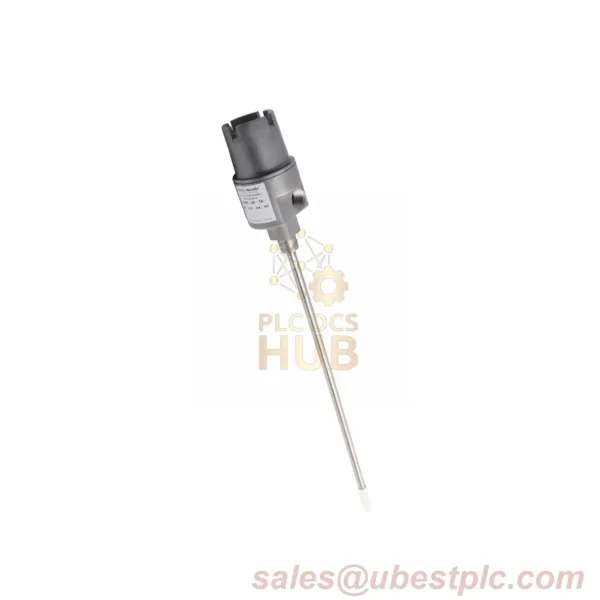

The Bently Nevada 21000-28-05-00-096-03-02 delivers 9.6″ (244 mm) extended probe penetration, specifically engineered for deep-bearing condition monitoring in API 670-compliant systems. Featuring multi-size cable management and CSA T4 certification, this assembly enables real-time predictive maintenance in Class I Division 1 hazardous zones with ±0.15% linearity.
Precision Engineering Specifications
- Manufacturer: Bently Nevada
- Measurement Resolution: 0.1 µm (0.000004″)
- Frequency Bandwidth: 0.1-15 kHz (±2 dB)
- Thermal Drift: <0.05%/°C (-50°C to +125°C)
- Cable Insulation: 1000V AC RMS, 105°C rated
- Housing Protection: IP68 submersible rating
Suffix Configuration Details for 21000-28-05-00-096-03-02
- 28: 8mm XL probe with dual CSA/ATEX certification
- 05: 0.5m oil-resistant cable (20″)
- 00: Flush-mounted installation
- 096: 9.6″ (244mm) deep-access design
- 03: NPT plug + reducer + tri-lock cable seals
- 02: 3/4-14 NPT industrial thread
Advanced Installation Features
Optimized for submersible pump monitoring with 316L stainless components resisting chloride-ion stress corrosion. Integrated cable seals prevent ingress in washdown environments (1000 PSI tested).
Compliance & Certifications
- CSA: Class I Div 1 Gr C/D, T4A rating
- NORSOK M-001: Offshore material compliance
- IEC 60079-0: Explosive atmosphere certified
Complete System Package
- Extended 9.6″ marine-grade probe sleeve
- 3/4″-to-1/2″ corrosion-resistant reducer
- Triple-range cable grip system
- High-pressure EPDM seals
- 12-month salt-spray warranty
Industrial Automation Application
Deployed in offshore drilling platforms for vertical turbine pump monitoring, achieving 0.6µm RMS accuracy in seawater environments. Enables automated emergency shutdown via 4-20mA HART protocol when vibration exceeds 7.1 mm/s RMS.
Technical Consultation: Contact sales@ubestplc.com for hazardous area network configurations.
