Description

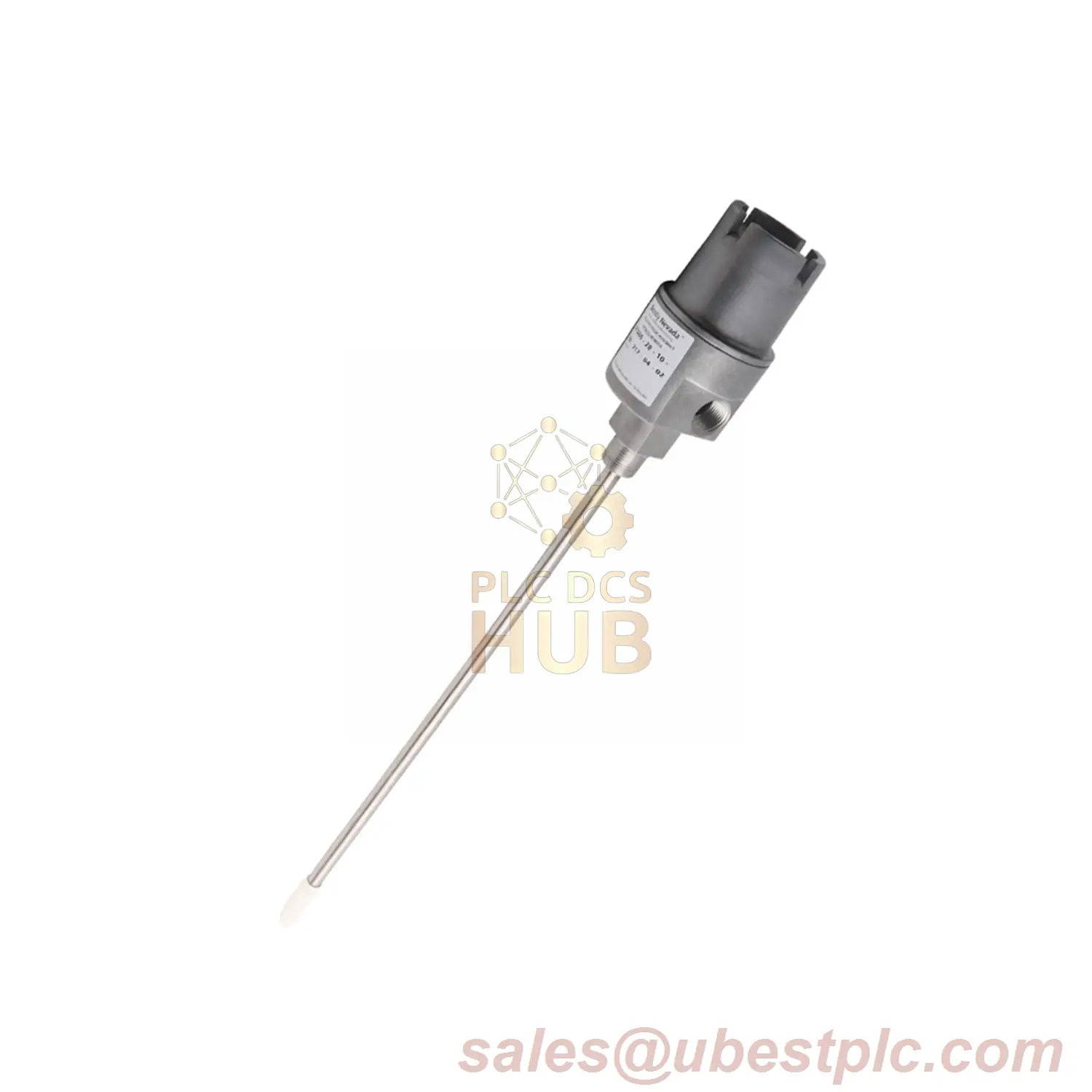

Bently Nevada Compact Monitoring System
Designed for space-constrained hazardous zones, 21000-16-05-15-072-03-02 combines 7.2″ penetration with 0.5m short cable. CSA/ATEX-certified for API 670 compliance in explosive environments.
Precision Engineering Specs
- Brand: Bently Nevada
- SKU: 21000-16-05-15-072-03-02
- Radial Clearance: 0.05-2.5mm (2-100 mils)
- Shock Resistance: 50g @ 11ms half-sine
- Cable Bend Radius: 25mm minimum
- Surface Finish: 32μin Ra (stainless components)
Configuration Breakdown
- 16 → 8mm 3300XL Probe (M12x1 Connector)
- 05 → 0.5m (20″) Low-Profile Cable
- 15 → 1.5″ Standoff (ANSI B16.5 Flange)
- 072 → 7.2″ (183mm) Penetration Depth
- 03 → NPT Conduit Adapter Kit
- 02 → 3/4-14 NPT Mount
Advanced Features
- RFI Shielding: >80dB @ 10MHz-1GHz
- Thermal Cycling: 500 cycles (-50°C ↔ +125°C)
- Hermetic Seal: <1×10⁻⁸ atm·cc/s He leak rate
Sector-Specific Applications
- Semiconductor Cleanrooms: Vacuum chamber bearing monitoring
- Underground Mining: Conveyor drive alignment in methane zones
- Pharma Mixers: Sterile environment shaft vibration analysis
Compliance Overview
- CSA: Class I Div2 Gr A/B/C/D T6
- IEC 60079-0: 2017 Ed 7.0
- NACE MR0175: H₂S Service Approved
Package Contents
- 304 Stainless Steel Housing
- 3/4″ NPT Explosion-Proof Plug
- Silicone-Free Conformal Coating
- 12-Month Zero-Failure Warranty
Custom Solutions: Contact sales@ubestplc.com
