Description
Advanced Sensing Solution

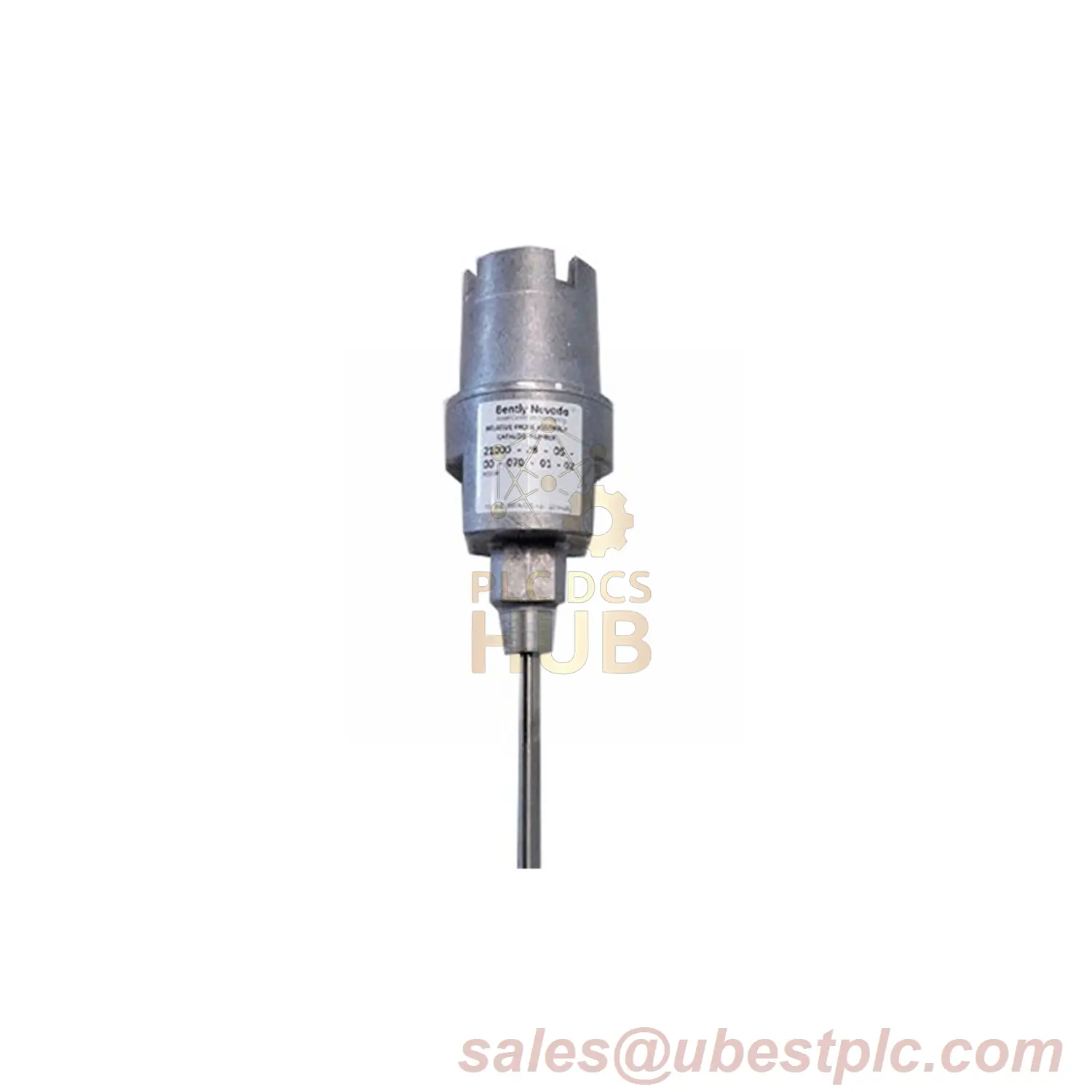

The Bently Nevada 21000-16-10-15-070-03-02 combines a 7″ penetration depth with 1.5″ standoff clearance, engineered for complex installations requiring extended reach and vibration dampening. Certified for Class I Division 1 Group D environments.
Precision Engineering Details for 21000-16-10-15-070-03-02
Suffix Map
- 16: 8mm 3300 XL HiTemp Probe (-40°C to +125°C)
- 10: 1.0m Armored Cable (39″)
- 15: 38mm Standoff Adapter
- 070: 7.0″ (177.8mm) Probe Penetration
- 03: Dual NPT Fittings + Tri-Seal Grip
Operational Limits
- Max C+D Length: 32.9″ (83.5cm)
- Resonance Threshold: 300mm (requires support sleeves)
- EMI Shielding: 60dB attenuation @ 1GHz
- Ingress Protection: IP68 when properly torqued
Specialized Applications
Offshore Oil Rig Compressors
Monitors turbine shaft runout in Zone 2 salt spray environments, utilizing the 7″ penetration to bypass insulated casing layers. The 1.5″ standoff prevents contact with vibrating pipework.
Cryogenic Pump Systems
Operates at -196°C in LNG transfer facilities, with aluminum housing preventing thermal contraction issues. Penetration depth allows monitoring through vacuum-jacketed piping.
Certification Highlights
North America:
CSA C22.2 No. 30
FM Approved Class 6061
International:
IECEx IEC 60079-1
ATEX Directive 2014/34/EU
Installation Toolkit
1. Probe alignment gauge (P/N 21000-ALIGN) 2. Anti-seize compound (Nickel-based) 3. Torque wrench template (18-22 N·m) 4. Explosion-proof thread sealant
⚠ Critical Note: For penetrations exceeding 7″, use support sleeve P/N 21000-SUP-7. Contact sales@ubestplc.com for seismic qualification data.
Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
