Description
Industrial-Grade Vibration Sensing

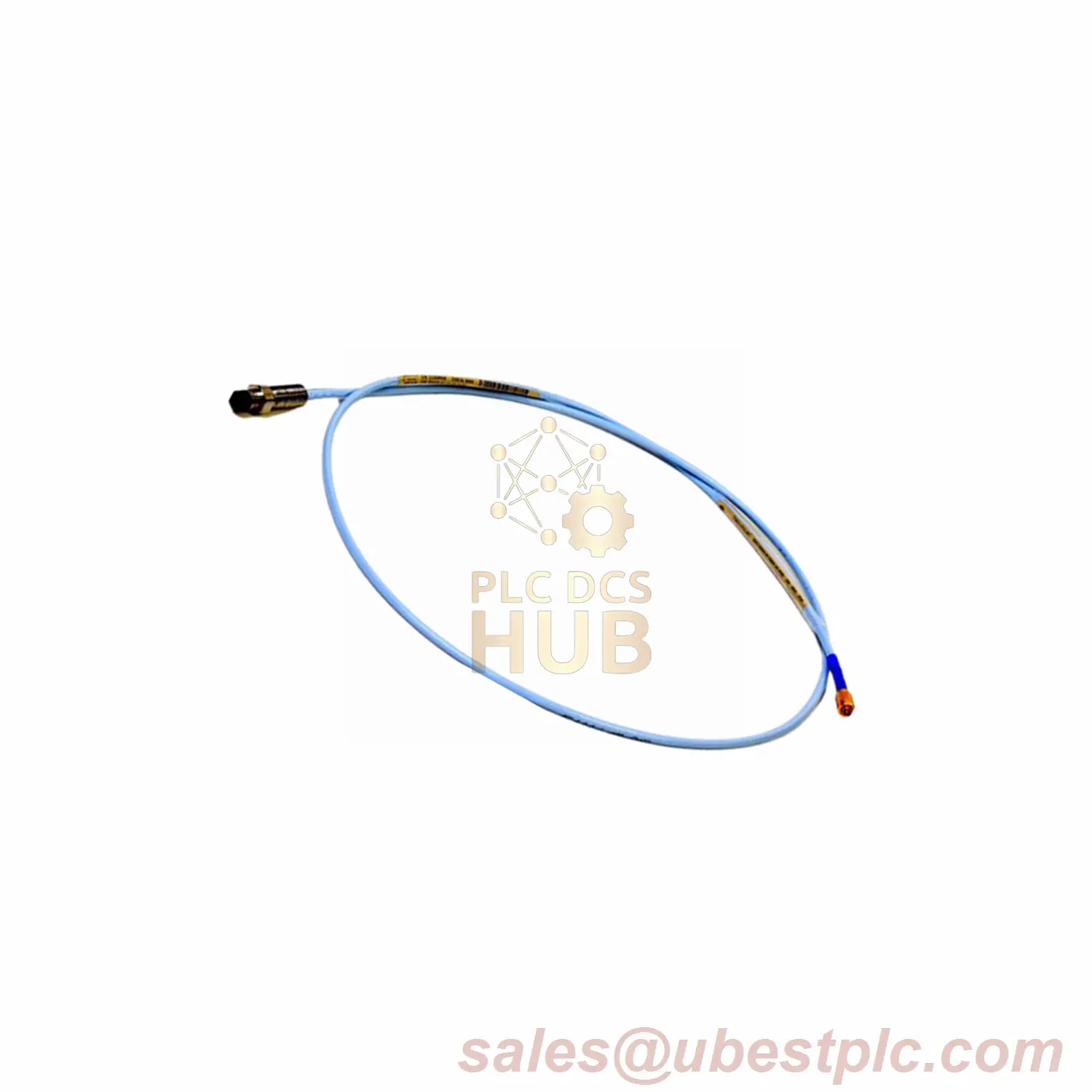

The Bently Nevada 3300 XL 8mm Probe (Model: 330103-00-15-50-02-00) delivers precision monitoring with its 150mm extended stainless steel housing and 5-meter high-flex cable. Engineered for installations requiring deep equipment access.
Configuration Details for 330103-00-15-50-02-00
- ▶︎ Suffix Code: 00-15-50-02-00
- ▶︎00: Unthreaded Length Option 00mm
- ▶︎ 15: 150mm Case Length
- ▶︎ 50: 5.0m (16.4ft) Cable
- ▶︎ 02: ClickLoc® Gen3 Connector
- ▶︎00: Agency Approval Not required
Performance Metrics
- ▶︎ Temp Stability: ±0.1%/°C (-30°C to +85°C)
- ▶︎ Signal Noise: <2mV RMS @ 1kHz
- ▶︎ Cable Flex: 10,000+ bend cycles
- ▶︎ IP Rating: IP68 submersible design
Unique Applications
Chemical Processing: Agitator shaft runout detection in PTFE-lined reactors
Wind Energy: Gearbox planetary carrier monitoring in 6MW+ turbines
Paper Manufacturing: Yankee dryer bearing health analysis (120°C steam environments)
| Certification | Standard |
|---|---|
| EMC Immunity | EN 61000-6-2 Level 4 |
| Mechanical Shock | IEC 60068-2-27 (50g) |
Technical Support: For submersible installation guidelines or ClickLoc® Gen3 specifications, contact sales@ubestplc.com
Recommended Bently Nevada Probes
| 330103-00-05-10-02-CN | 330103-00-06-10-02-CN | 330103-00-12-10-02-CN |
|---|---|---|
| 330103-00-09-10-02-CN | 330103-04-09-10-02-CN | 330103-00-08-10-01-CN |
| 330103-00-07-10-12-CN | 330103-20-25-05-02-00 | 330103-01-07-05-02-00 |
