Description

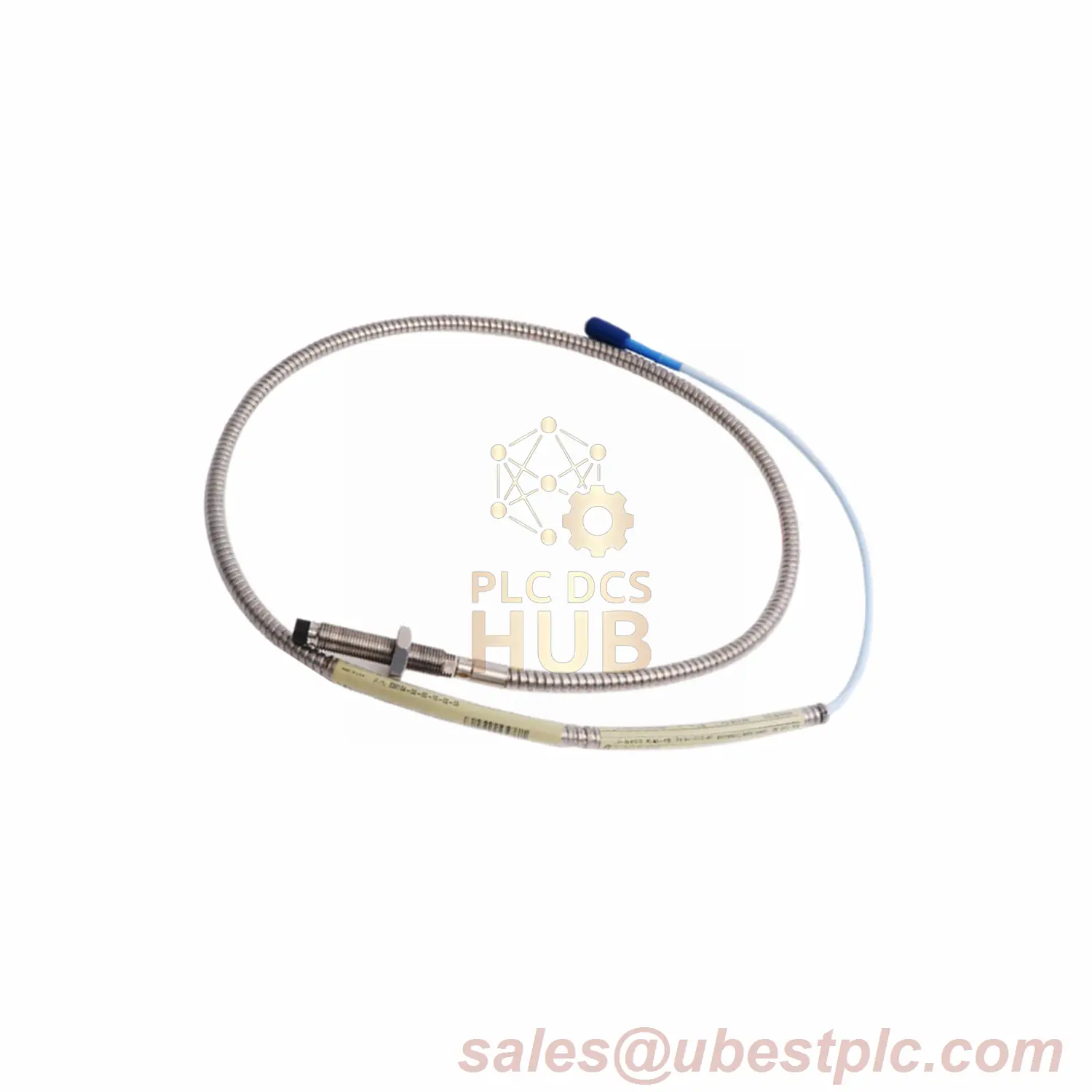

Bently Nevada 3300 XL 8mm Proximity Probe
Model: 330103-00-05-15-02-CN
■ Core Specifications
- Brand: Bently Nevada
- Suffix Code for 330103-00-05-15-02-CN:
- 00: 0mm Unthreaded Length
- 05: 50mm Case (Optimal for Tight Spaces)
- 15: 1.5m Extended Cable (4.9 ft)
- 02: ClickLoc Connector (Standard Triad Shielded)
- CN: China-Specific Certifications
■ Technical Parameters
- DC Resistance: 7.73Ω ±0.50 @1.5m
- Frequency Bandwidth: 0–10 kHz (±3dB)
- Linear Accuracy: ±1.5% Full Scale (0.25–2.3mm)
- Cable Durability: Resistant to Abrasion/Oil (IP66 Equivalent)
■ Environmental Ratings
- Temperature Range:
- Probe Tip: -52°C to +218°C
- Cable: -51°C to +260°C (Extended Cable Heat Tolerance)
- Pressure Seal: Viton® O-Ring (On-Demand Testing)
- Humidity Stability: <3% ASF Shift @93% RH
■ Compliance & Safety
- China Machinery Safety Directives
- AEx/Ex ec IIC T5-T1 (Zone 2 Hazardous Areas)
■ Industrial Applications
- Steel Manufacturing: Roller Alignment in Hot Strip Mills
- Marine Engineering: Propulsion Shaft Monitoring on LNG Carriers
- Data Centers: Cooling Pump Vibration Analysis for High-Availability Systems
■ Package & Support
- Includes: Probe, 1.5m Cable, Mounting Hardware
- Warranty: 12 Months (Heavy Industrial Use)
- Contact: sales@ubestplc.com for CN Certification Details
