Product Profile

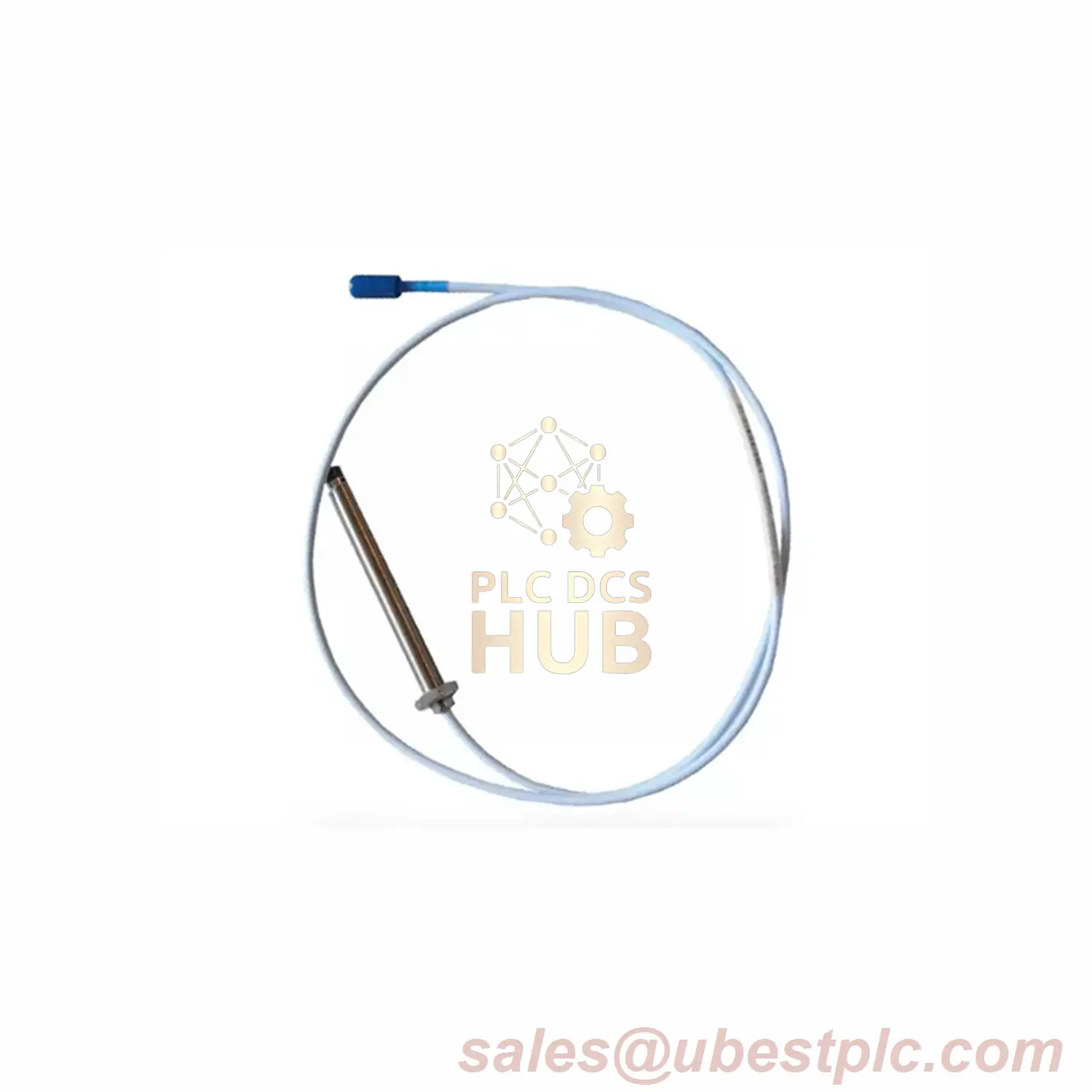

The Bently Nevada 3300 XL 8mm Industrial Probe (Model: 330103-00-07-05-02-00) features a 70mm compact case and non-hazardous area design. With ClickLoc® Gen2 connectivity, it delivers stable -9Vdc gap measurements for general industrial monitoring.
Technical Parameters for 330103-00-07-05-02-00
- Suffix Decoding: 00-07-05-02-00
00: 0mm Unthreaded Section
07: 70mm Housing Length
05: 1.6ft Cable
02: Unarmored ClickLoc®
00: No Agency Certification
- Vibration Tolerance: 10-2000Hz @ 20g RMS
- EMC Compliance: EN 61000-6-2/6-4 (Industrial Immunity)
- Cable Flexibility: 5000+ bend cycles @ 50mm radius
- Response Time: <5μs for transient detection
Enhanced Features
- Ingress Protection: IP67-rated connector interface
- Synchronization: ±0.1% phase matching for multi-probe arrays
- Surface Compatibility: Reliable operation on aluminum/brass targets
Installation Notes
- Use Belden 9501 twisted triad cable for noise-sensitive setups
- Maintain 3x probe diameter axial spacing in clustered installations
- Ground shield within 0.5m of monitor connection
Compliance
- RoHS 3 (2015/863/EU) compliant
- WEEE registered (EU-10025)
Application Scenarios
- Automotive: Transmission gear mesh analysis on dyno test stands
- Food Processing: Mixer shaft runout monitoring in USDA-grade facilities
- Semiconductor: Wafer robot arm vibration profiling (ISO Class 5 cleanrooms)
Engineering Support: For non-hazardous area validation documents, contact sales@ubestplc.com
