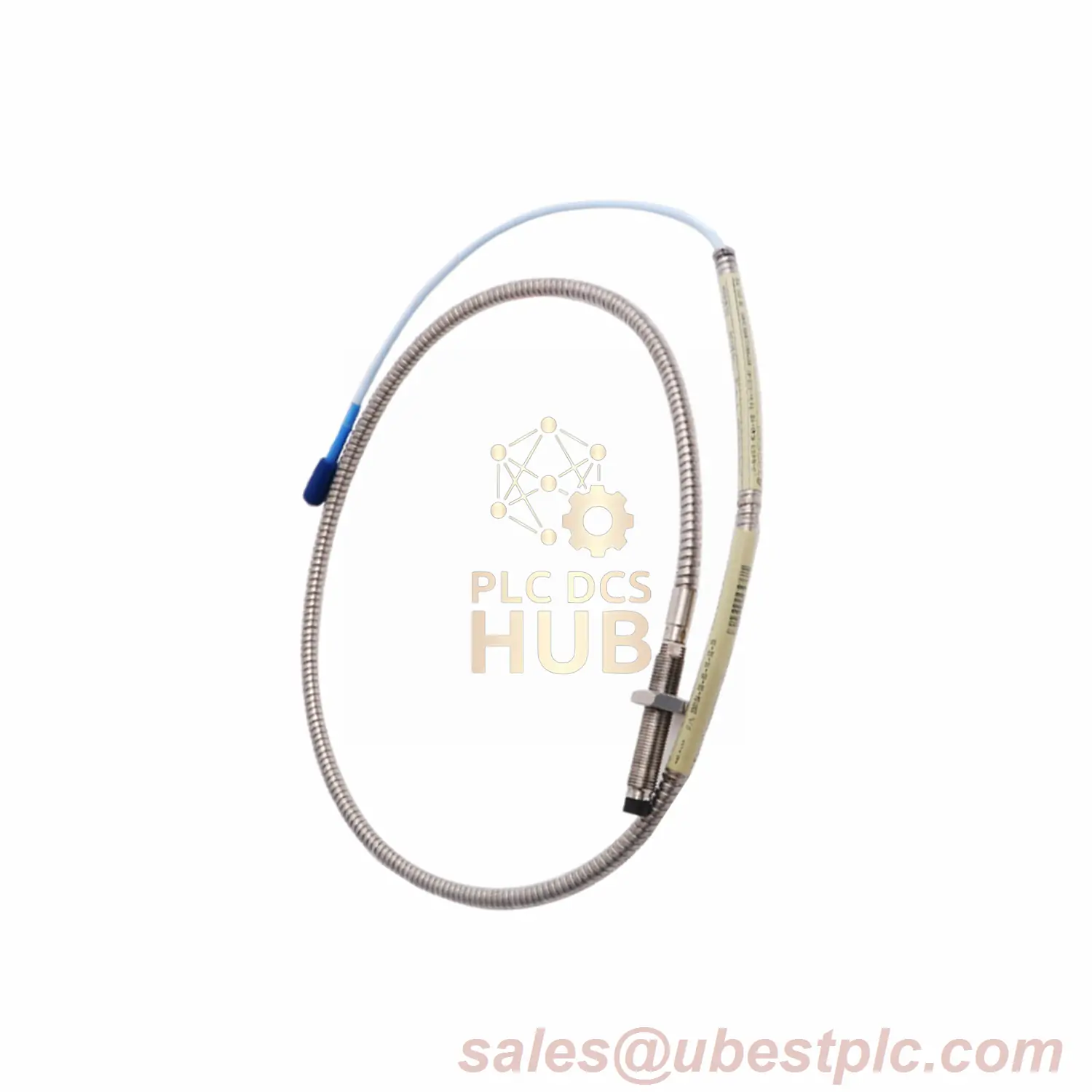

Bently Nevada 3300 XL 8 mm Proximity Probe
Description: The 3300 XL 8 mm Proximity Probe by Bently Nevada delivers precision vibration monitoring for heavy-duty industrial applications. With a **150 mm stainless steel case**, M10x1 threading, and **PPS probe tip**, 330103-00-15-10-02-CN is optimized for installations requiring extended reach and compliance with **country-specific certifications (CN)**. Its robust design ensures reliability in extreme temperatures and hazardous environments.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-15-10-02-CN
- Suffix Breakdown:
- 00: Unthreaded Length (0 mm)
- 15: Case Length (150 mm)
- 10: Cable Length (1.0 m)
- 02: Miniature Coaxial ClickLoc Connector
- CN: Country-Specific Approvals
- Linear Range: 0.25–2.3 mm (10–90 mils)
- Output Signal: -1 to -17 Vdc
- DC Resistance: 7.59 Ω ±0.50 (1.0 m cable)
- Operating Temp: -52°C to +177°C (Standard)
- Thread Engagement: Max 15 mm (M10x1)
- Weight: 323 g/m (11.4 oz)
- Humidity Resistance: ≤3% ASF deviation in 93% humidity (56 days)
Installation Guidelines
- Pressure Seal: Viton® O-ring (custom testing available)
- Cable Specifications: 0.2–1.5 mm² shielded triad cable (16–24 AWG)
- Max Wiring Distance: 305 m (1,000 ft)
- Radial Vibration Gap: Set to -9 Vdc (~1.27 mm / 50 mils)
Compatibility
- Compatible with **3300 XL Proximitor Sensors** and ClickLoc connectors
- Supports **intrinsic safety (ia)** and **nonincendive (nA/ec)** configurations per IECEx/ATEX
Certifications
- Country-Specific (CN): Meets regional safety standards for hazardous zones
- Hazardous Area Compliance: Class I/II/III, Groups A-G, Zones 0/2
Package & Warranty
- Includes: Probe, ClickLoc connector, installation guide
- Warranty: 12 months from delivery
Application Examples
Power plant steam turbine shaft monitoring, mining conveyor belt drive alignment, aerospace engine test rig vibration analysis.
